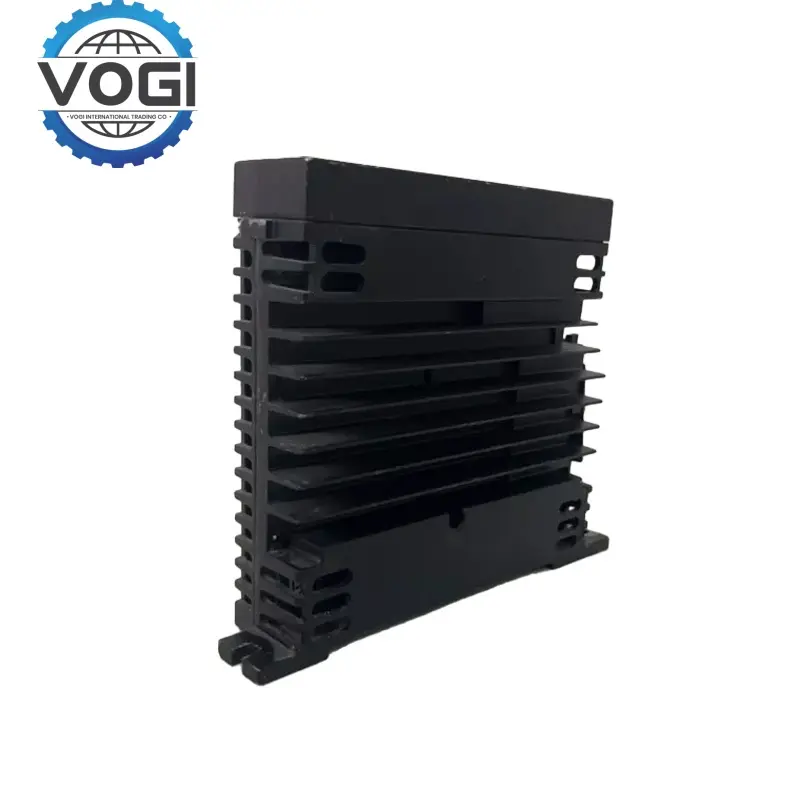

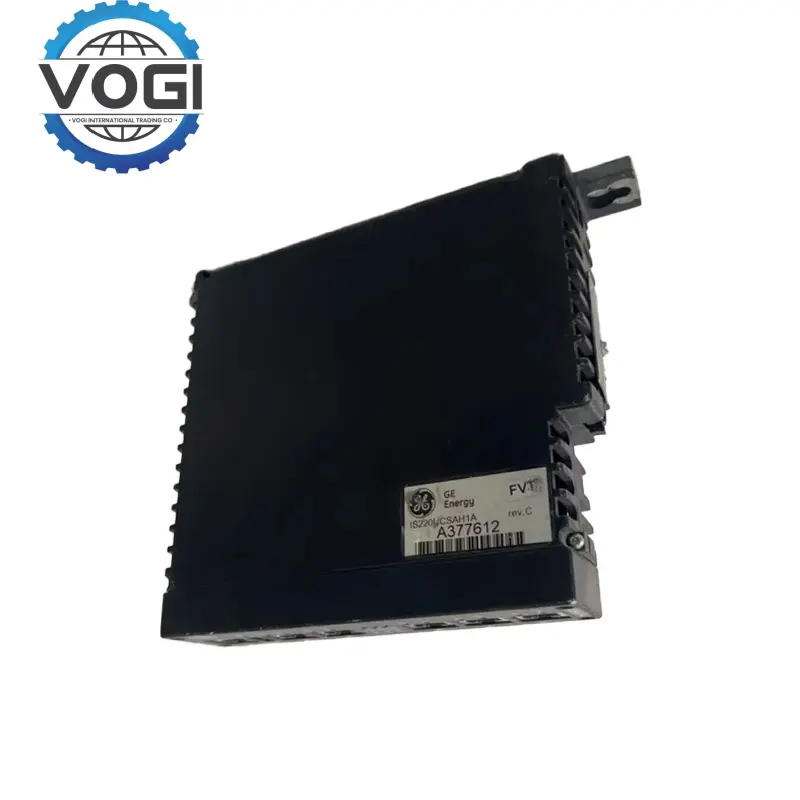

GE IS220UCSAH1A Controller Module

Power Input Main Power: 18–32 V DC, wide voltage range design, adaptable to complex industrial power supply environment.

Communication Interface: Dual 10/100BaseTX Ethernet ports, support IONet proprietary protocol and Modbus TCP/IP, compatible with Mark VIe control system.

Processor: Freescale PowerPC 667 MHz (PowerQUICC II Pro), support real-time multitasking.

Memory and Storage: 256 MB DDR SDRAM + 128 MB flash memory, support system configuration and program storage.

Operating System: QNX Neutrino real-time operating system, ensuring high reliability and low latency response.

Operating Temperature: 0°C to +65°C, fanless design, adaptable to high temperature environment.

Humidity Range: 5%–95% RH.

Safety Certification: Suitable for NFPA Class 1, Div. 2 hazardous locations, UL, CE certified.

Status Indicator: The front panel is equipped with LED indicators (power, operation, network, diagnostic) to support intuitive status monitoring.

Wide operating temperature and industrial protection: It has a wide operating temperature range, dustproof and anti-electromagnetic interference protection, and can work stably in a harsh environment.

Redundant and secure design: IS220UCSAH1A adopts TMR architecture for triple module redundancy, and key signals maintain continuity through voting mechanism; built-in overvoltage and short-circuit protection further enhances system fault tolerance.

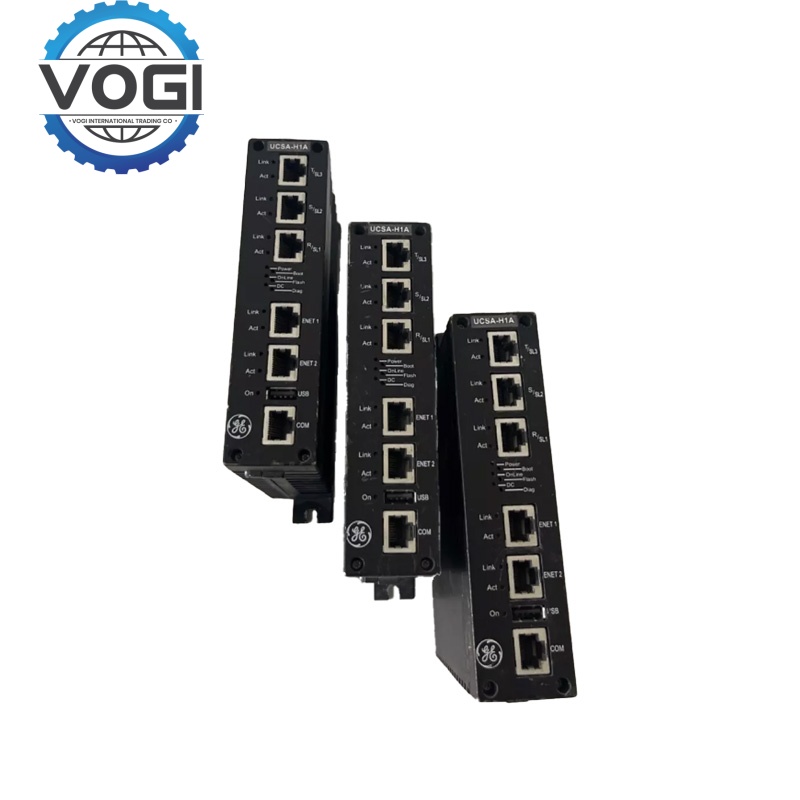

The front panel of the device is fitted with a USB interface and LED status indicator; the device supports local configuration and remote monitoring for convenient maintenance and diagnosis, further simplifying the debugging and troubleshooting process.

IS220UCSAH1A adopts highly performance real-time control, and has the 667 MHz processor, QNX operating system, complex control algorithm, high-speed data processing capabilities, and real-time monitoring of the main equipment, such as gas turbines and generators.

IS220UCSAH1A  enables flexible networking and expansion capabilities as dual Ethernet ports support high-speed communication based on IONet, which allows for compatibility with Modbus protocol and real-time ION monitoring in addition to its integration into distributed control systems (DCS) and allows for functional expansion modes for high-end PCs through I/O modular terminals.

Petrochemical industry: Emergency shutdown system (ESD) applied to key equipment such as reactors and compressors to ensure production safety and environmental compliance.

Intelligent infrastructure: Access to BMS system to manage HVAC and security equipment, support edge computing and cloud data synchronization, and optimize building automation efficiency.

Energy and power industry: IS220UCSAH1A Used in gas turbine and steam turbine control systems to achieve speed regulation, valve control and generator grid-connected signal management.

Industrial automation: IS220UCSAH1A Integrated in production line equipment, supports robot motion control, valve drive and safety interlocking functions to improve factory efficiency and safety.

Rail transit: Applicable to real-time monitoring of train traction systems or platform equipment, supports signal transmission and fault diagnosis, and ensures transportation safety.
