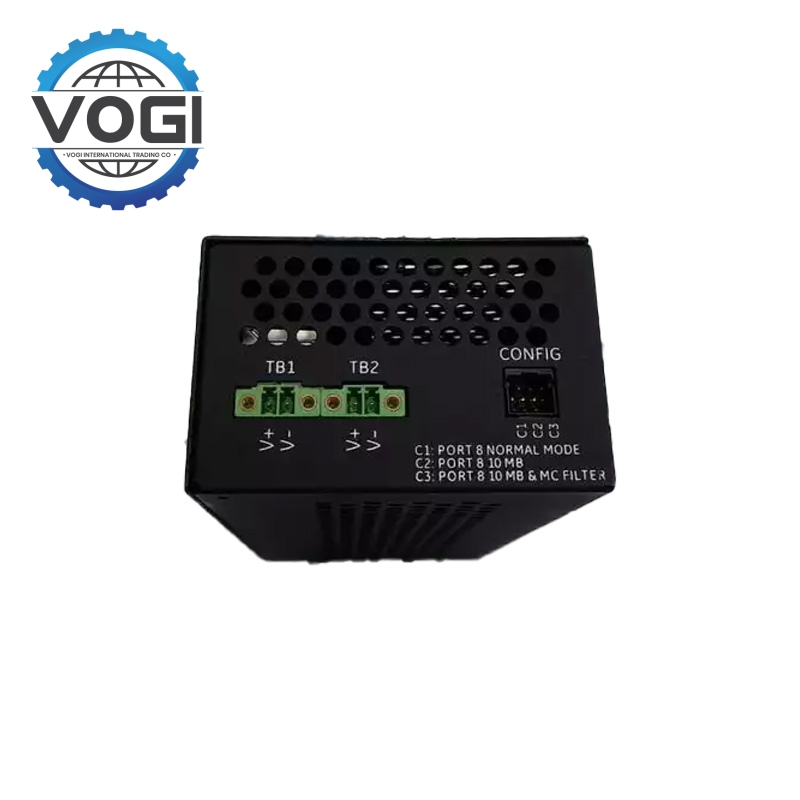

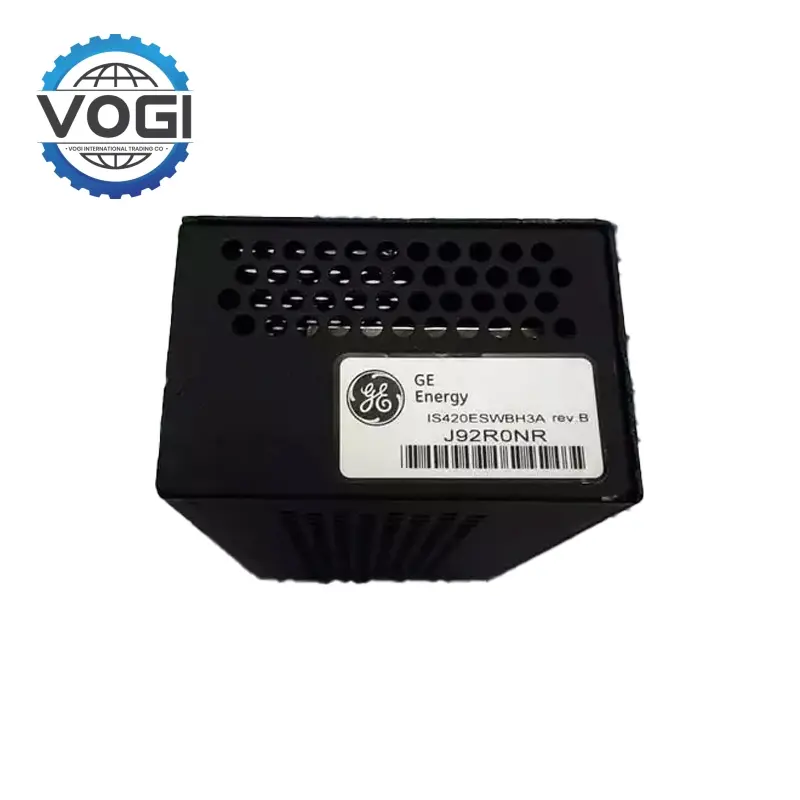

GE IS420ESWBH3A Ethernet IONet Switch
Key SpecificationsVOGI
Input Voltage: 18-32V DC.
Power Consumption: N/A.Redundant Power Supply: Support redundant power input.
Number of Ports: 8.
Port Type: 10/100BASE - TX RJ45 port.
Uplink Port: 100Mbps FX uplink port.
Buffer: Minimum 256kb buffer.
Operating Temperature: -40°C - 70°C.
Relative Humidity: 5% - 95% (non-condensing).
Cooling Method: Convection cooled.
Key FeaturesVOGI
Protocol Support：GE IS420ESWBH3A supports standard working network protocols 802.3, 802.3u and 802.3x, which can seamlessly connect a wide range of network devices.
Auto-negotiation Function：GE IS420ESWBH3A has 10/100Base copper, auto-negotiation, full/half-duplex auto-negotiation function automatically identifies and configures the attached devices for the best performance of the network connection.Status Indication: LED status indicator per port for link presence, activity, duplex and speed,PC power indicator LED, Users simply peek at working status of the switch, troubleshoot.
High performance: GE IS420ESWBH3A has excellent data switching and processing capacity, which can support real-time, large-capacity industrial applications of the network requirements of high-speed, stable data transmission
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$51 |
|
Southeast Asia |
$15 |
|
South Asia |
$56 |
|
South Africa |
$46 |
|
Europe and USA |
$27 |
|
Russia |
$51 |
APPLICATIONVOGI
Process control: GE IS420ESWBH3A can be combined with process control system and can realize real-time monitoring and controlling on the productionprocess, and production process can be stabilized, product quality can be even.
Energy industry: it is a major component in energy industries such as electric power, oil and gas in the automation control system. By networking the above-mentioned monitoring instruments, the control instruments and other devices on the oil extraction platform asynchrony remote monitoring and automaticization management for the extraction process can be implemented.Transport: GE IS420ESWBH3A can be used for the automatic control of transportation equipment, such as rail transit, subway, realizing centralized monitoring and management to improve the efficiency and reliability of subway operation.
