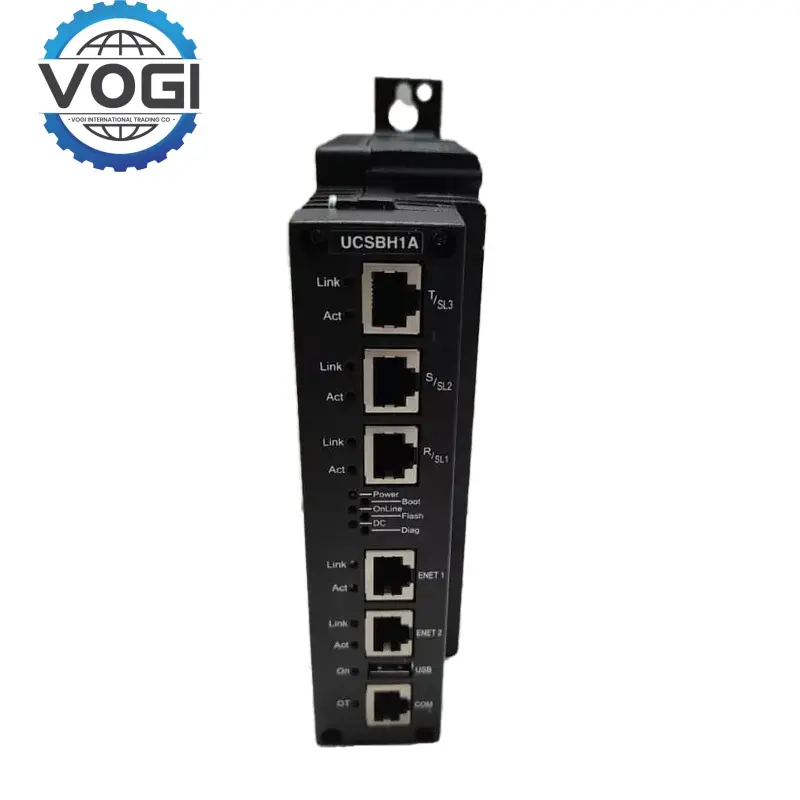

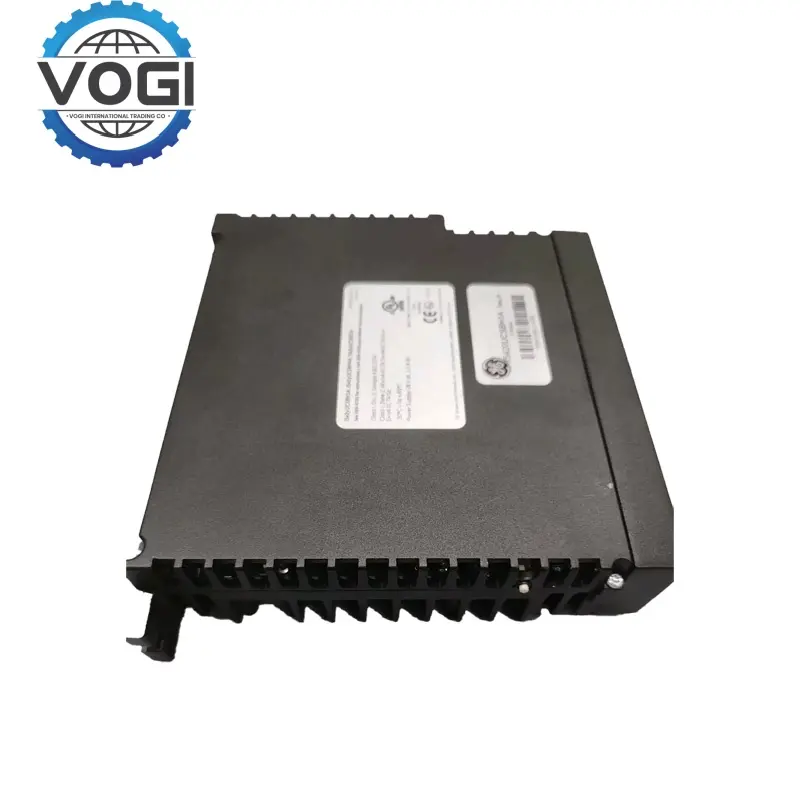

GE IS420UCSBH1A UCSB Controller Module
Key SpecificationsVOGI
Power input main power: 18-30VDC
Communication interface: Ethernet, RS-485
Processor and memory: 600MHz Intel EP80579 microprocessor
Operating temperature: -30℃ to +65℃
Humidity range: ≤95% RH (non-condensing).
Certification standard: UL E207685
Operating system and configuration: QNX Neutrino real-time operating system;
Mechanical features: modular design, single module structure, no jumper settings required
Key FeaturesVOGI
High-performance control and processing capabilities:600 MHz Intel EP80579 embedded microprocessor, supporting 256 MB DDR2 SDRAM (with ECC error correction) and 2 GB NAND flash memory, real-time multi-tasking, microsecond response speed, and can handle complex control logic
Modular and compact design: GE IS420UCSBH1A Single module integration, no fan, no battery, suitable for space-constrained industrial environments.
Jumper-free configuration: parameter setting through ToolboxST software, support online logic update, and convenient maintenance.
Multi-protocol communication and network integration: IONet private Ethernet: designed specifically for Mark VIe/EX2100e/LS2100e systems
High-reliability redundant architecture: GE IS420UCSBH1A Supports dual redundant (Dual) or triple redundant (TMR) configuration, ensuring gas turbine control continuity through multi-controller synchronization.
Intelligent diagnosis and safety assurance: GE IS420UCSBH1A Real-time monitoring and early warning, fault isolation mechanism, automatic switching to healthy sensors or redundant channels, to prevent single point failure from causing downtime accidents.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$51 |
|
Southeast Asia |
$40 |
|
South Asia |
$67 |
|
South Africa |
$54 |
|
Europe and USA |
$30 |
|
Russia |
$61 |
APPLICATIONVOGI
Industrial process automation: Petrochemical/nuclear power key control: drive electro-hydraulic servo valve (EH valve) to ensure stable pressure in reactor cooling system or pipeline.
Fuel/steam valve drive core control: GE IS420UCSBH1A accurately adjust fuel injection amount and steam flow to optimize combustion efficiency.
Overspeed protection linkage: cooperate with VTUR overspeed protection module to achieve emergency shutdown (ETS) response.
Ship power system: GE IS420UCSBH1A control propulsion turbine speed and power distribution.
Equipment health management: data recording and storage: historical operation data storage to support preventive maintenance analysis.
Power and energy system: GE IS420UCSBH1A integrated into Mark VIe system to manage gas turbine startup, shutdown and load distribution.
Energy management system : optimize grid frequency regulation and coordinated operation of generator sets.
