GE

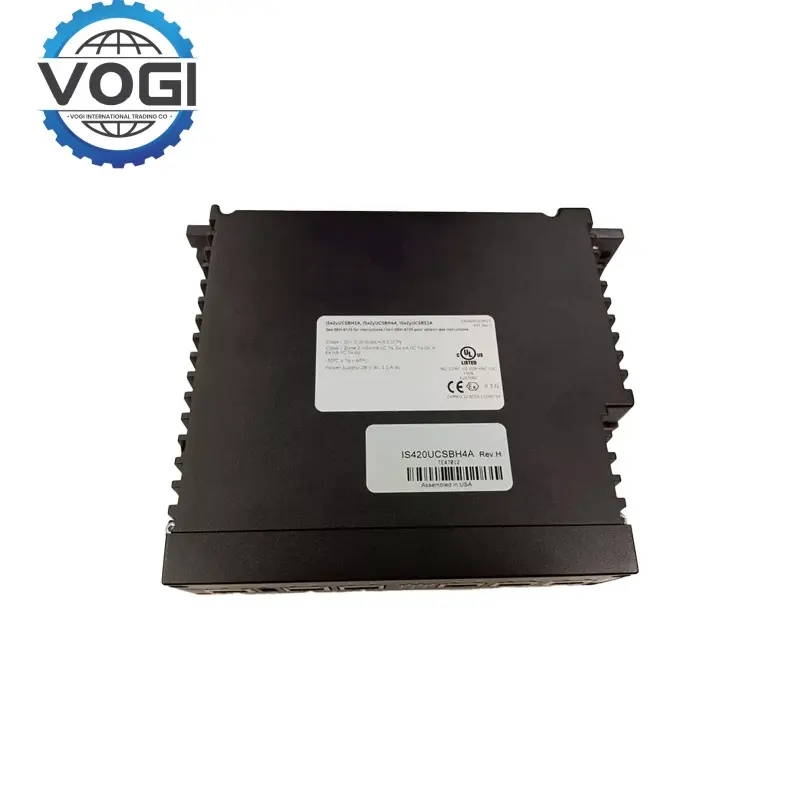

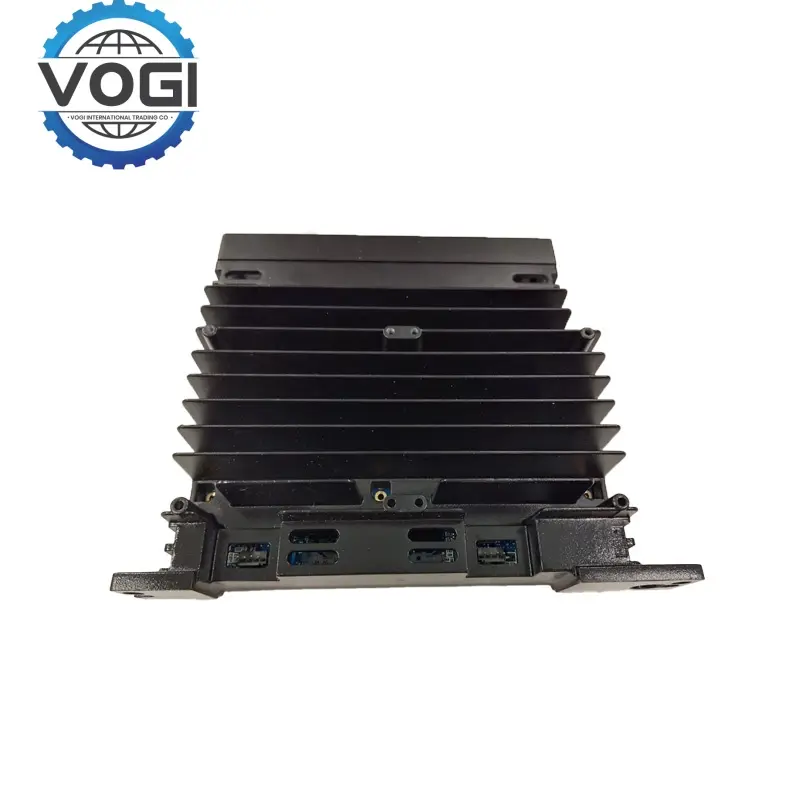

GE IS420UCSBH4A UCSB Controller Module
Key SpecificationsVOGI
Power input: 24VDC±15%
Communication interface: IONet network protocol, Ethernet interface
Processor and memory: 1066MHz EP80579 Intel processor;
Operating temperature range: -30℃ to +65℃
Storage temperature range: -40℃ to +85℃
Humidity range: ≤95% RH (no condensation)
Input/output channels: 24 dry contact inputs
Auxiliary control outputs: 4
Redundancy and safety: Supports redundant configuration (dual redundant or triple redundant TMR)
Safety certification: UL E207685, ATEX 1114875X software and operating system
Installation method: VME rack or panel sheet metal vertical installation
Equipment capacity: Suitable for gas turbine and steam turbine control, supports a variety of I/O module expansion
Key FeaturesVOGI
High-performance processing capability：Adopts 1066 MHz EP80579 Intel quad-core processor, supports high-speed data processing and complex control algorithms, and meets the real-time control requirements of gas turbines.
Industrial-grade reliability design：Anti-vibration and anti-electromagnetic interference, adaptable to extreme industrial environments，Fanless design reduces the risk of failure, supports redundant configuration , and can replace the controller online.
Modularity and scalability：Seamlessly integrated with Mark VIe series I/O modules through IONet network interface, 24 dry contact inputs and flexible output configuration, compatible with a variety of sensors and actuators.
Real-time operating system and communication capabilities：Runs QNX Neutrino real-time operating system and supports millisecond-level synchronization.Supports Modbus/TCP, EGD protocol and Ethernet communication, and interacts efficiently with host computers and BMS systems.
Intelligent maintenance and safety：Online software update function, control program can be upgraded without downtime. Built-in self-diagnosis and fault locking mechanism, automatically detect abnormalities and enter safety mode, in line with SIL 1/0 functional safety certification.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$51 |
|
Southeast Asia |
$40 |
|
South Asia |
$67 |
|
South Africa |
$54 |
|
Europe and USA |
$30 |
|
Russia |
$61 |
APPLICATIONVOGI
Gas turbine and steam turbine control：Core functions: Precise control of gas turbine startup, shutdown, load regulation, fuel supply and temperature/pressure monitoring.
Typical scenarios: Power plants, petrochemicals, steel metallurgy and other high-energy-consuming industries.
High-reliability data acquisition and monitoring：Real-time collection of equipment operation data, support remote monitoring and fault warning. Applied to equipment health management to reduce the risk of unplanned downtime.
Functional safety system：Works with Mark VIeS safety controller to build a safety instrument system that complies with the IEC 61508 standard.
