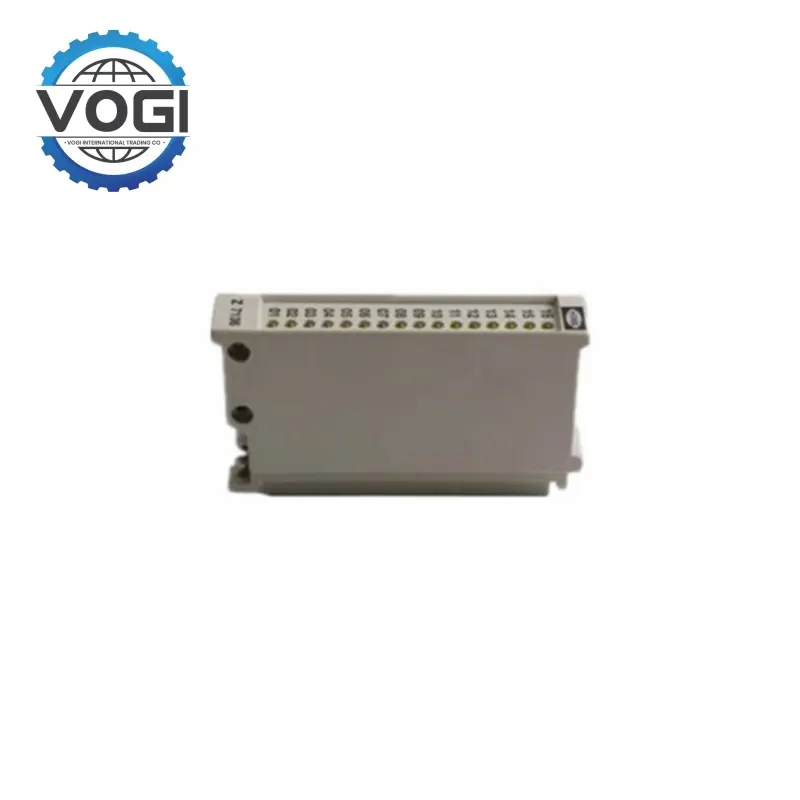

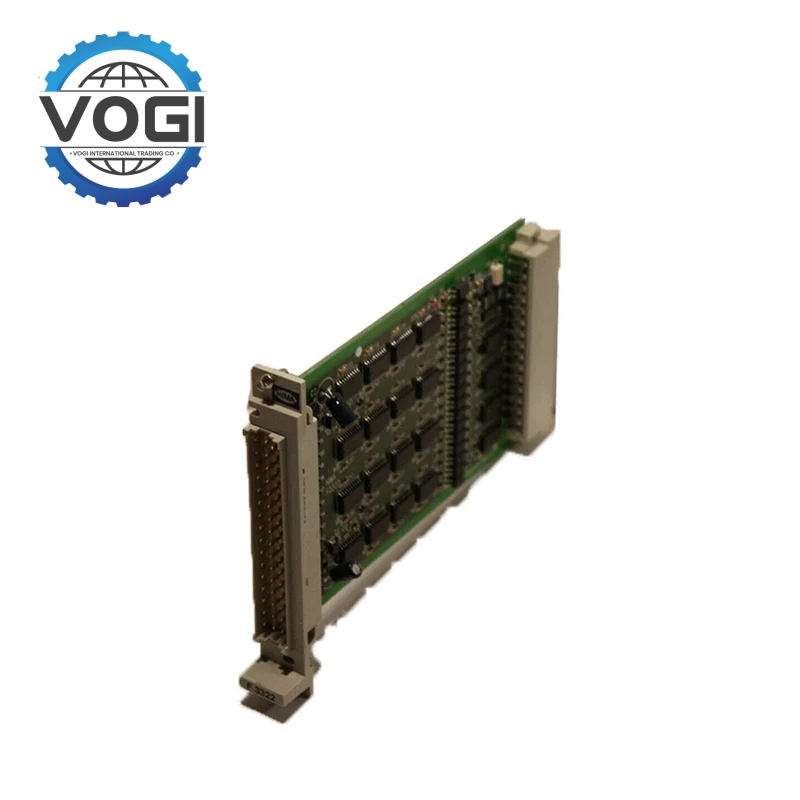

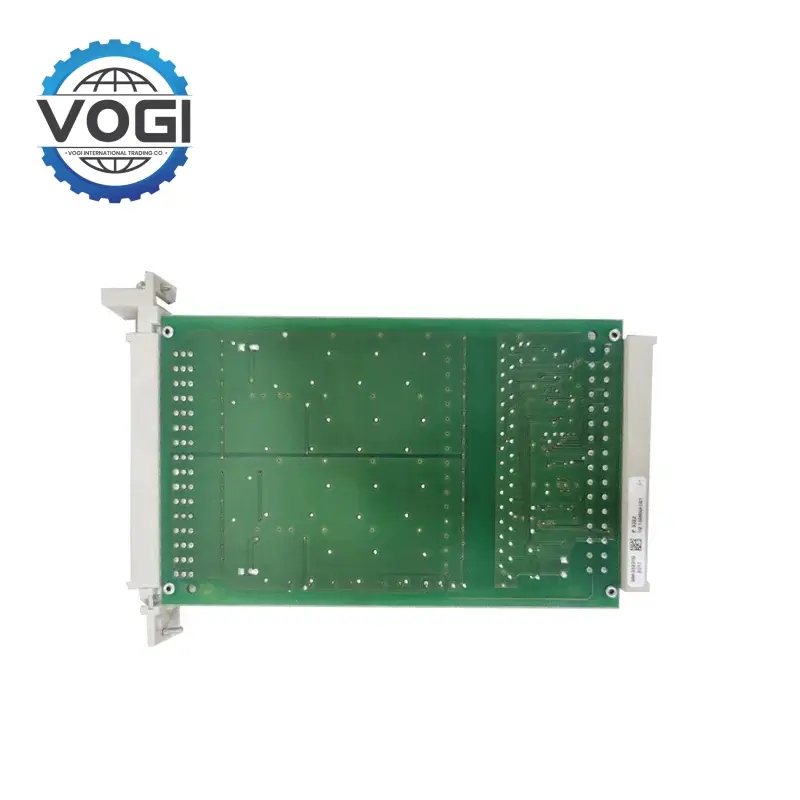

HIMA F3322 16 fold output module

Redundant architecture: Triple module redundancy (TMR), supporting seamless switching of hardware-level faults.

Communication protocols: PROFINET IRT, EtherNet/IP, Modbus TCP/RTU, with a communication rate of up to 100Mbps.

Input and output (I/O): 16AI /8DI/8DO

Computing performance: PD/PS algorithm execution cycle ≤5ms.

Safety diagnostic coverage: Self-test coverage ≥99.2%, real-time monitoring of voltage/communication/sensor status.

Operating temperature: -40°C to +85°C,

Power supply design: 24VDC redundant power supply,

Programming language: Support IEC 61131-3

Safety certification: Meets IEC 61508 SIL3 and IEC 61511 functional safety standards.

Protection level: Chassis IP65 dust and water proof, supports DIN rail/wall mounting.

Safety protection function: HIMAF 3322 has a complete safety detection and protection mechanism, which can monitor the operation of the equipment in real time. Once abnormal conditions such as overvoltage, overcurrent, overtemperature, and logic control errors occur, emergency measures such as shutdown and alarm will be immediately initiated to effectively prevent accidents and ensure the safety of personnel and equipment.

Communication function:HIMAF3322 integrates multiple communication interfaces and supports common industrial communication protocols such as Modbus and Profibus. It provides a free place for data exchange and interaction with other industrial equipment, monitoring master station systems or other distributed control systems, and can realize the networking of industrial production and easily realize remote monitoring.

Installation and debugging Installation environment: HIMAF 3322 should be installed in a dry and well-ventilated industrial control cabinet to prevent electromagnetic interference. The ambient temperature of the equipment installation should be between -10℃ and +50℃; the relative humidity should be between 5% and 90% (no condensation) to ensure stable operation of the equipment.

Safety Instrumented Systems: Safety interlock control for high-risk industrial processes with IEC 61511 SIL3 certification for high reliability and safety protection applications in refineries and chemical plants.

Emergency Shutdown Systems: Real-time monitoring of process parameters and initiation of immediate shutdown responses to prevent the propagation of unexpected events, typically used in high-risk applications involving natural gas processing.

Fire and Gas Systems: Flame and gas leak detection and fire interlock control, HIMA F3322 providing multi-zone alarm management, suitable for hazardous areas where flammable and explosive materials are present wer operation and long-term maintenance costs.
