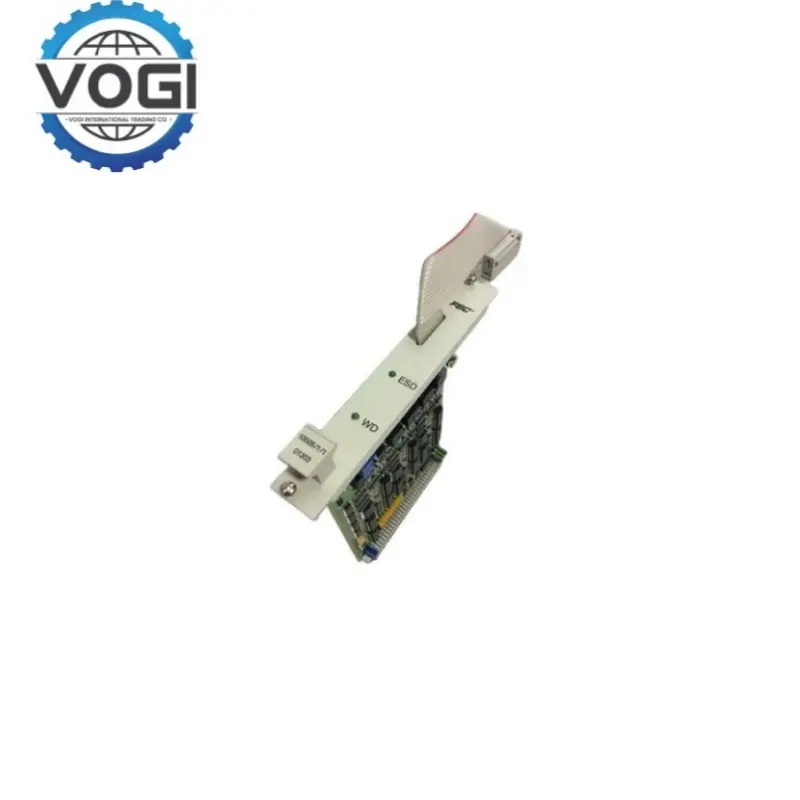

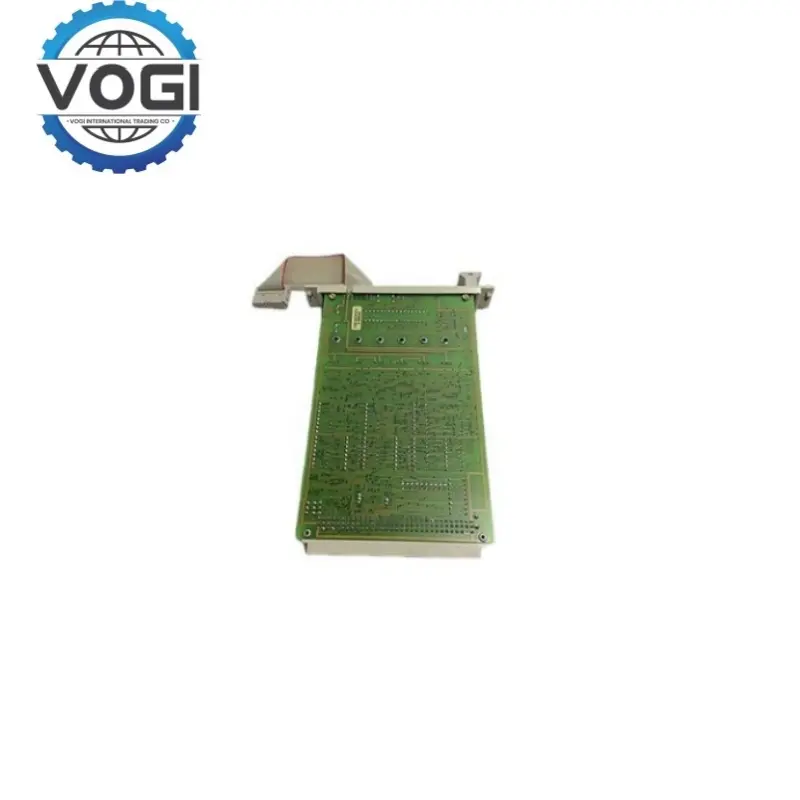

HONEYWELL 10005/1/1 Watchdog Module

 Key SpecificationsVogi

Measuring range: 0-100 psi / 0-7 bar.
Output signal: 4-20 mA or 0-10 V DC analog signal.
Supply voltage: 12-30 VDC.
Accuracy level: ±0.5% full scale (FS).
Media compatibility: Stainless steel diaphragm, compatible with water, oil, non-corrosive gases.
Ambient temperature: -40°C to +85°C (operating temperature).

Functional FeaturesVogi

System Monitoring: The 10005/ 1/ 1 module mainly concerns the running status of the system. ** Measuring some parameters (like the maximum or minimum execution time of the application loop) barely can prove that a given process executes the program without looping or bypassing its block of a program. Also, there are checks of the 5V DC voltage (overvoltage and undervoltage [5V DC ± 5%]); memory error logic that runs on the CPU, COM and MEM modules.
Auto restart: Upon fault or unresponsiveness of the system, the module fails to receive "feed dog" signal and starts a restart with a timeout option hard-coded at boot. This returns operating conditions back to normal, ensuring stability and reliability.
ESD protection: Watchdog output may be de-energized by ESD inputs, independent of the processor. 5V DC internal bus is electrically isolated from the 24V DC inputwill also help against ESD burnout events— see image below.
Jumper Settings: The 10005/1/1 module can be configured in different ways using its jumper settings. For instance, when a manual start command is always a must, solder jumper SO3 on position 1 is acceptable. When the jumper is on position 2, it is applicable for hot start applications (start automatically after the application is turned on), but requires a manual reset command (even after systems that have reached the trip)
Download Background Communication interfaces like RS-232, RS-422, RS-485 and Ethernet make it easy to communicate with other devices while transmitting and exchanging data in industrial automation.

Freight Estimation(Part Of The Area)Vogi

Application AreasVogi

Industrial Automation: Commonly employed in various industrial automation control systems such as material handling, packaging, food and beverage, chemical processing, oil and gas, water treatment and power generation. Stable operation of production line remote and process control, improve production efficiency and product quality.
Process Control: Track critical parameters to protect sophisticated industrial processes from potential failure and ensure the smooth operation of the process. In a chemical plant, for example, it monitoring the state of our reactor and keeping the reaction process safe and stable.
Provide Protection for the Equipment: Expensive and sensitive industrial equipment must be protected from failures of the system and the need for starting it. This can eliminate much downtime and maintenance costs and increase the equipment use time.
