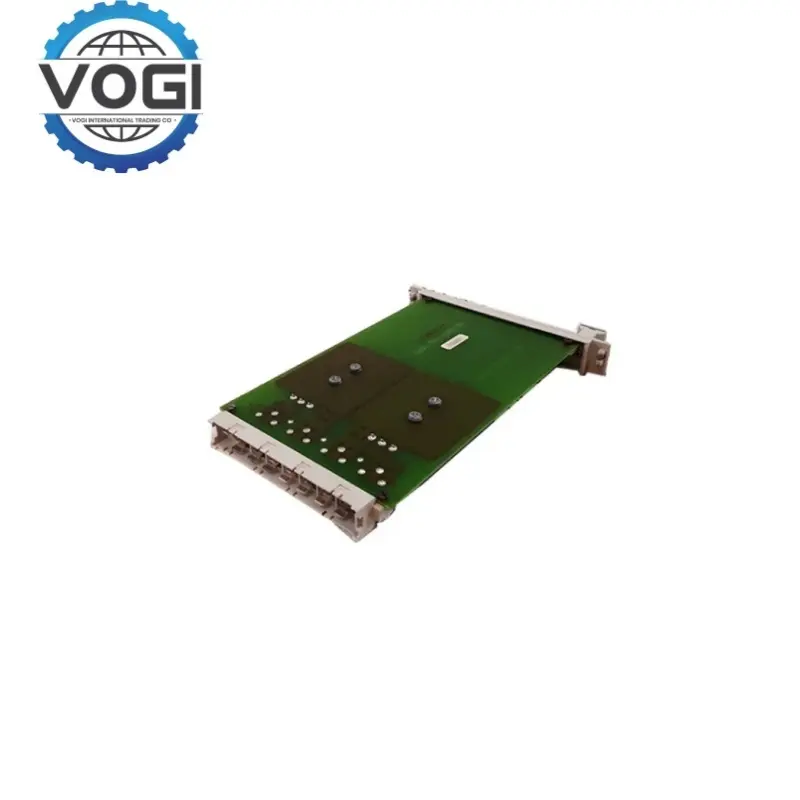

HONEYWELL 10303/1/1 Power Supply Distribution Module

 Key SpecificationsVogi

Power input: Main power: 24VDC ±15%; Backup battery: 12V/7Ah lead-acid battery (supports continuous operation ≥24 hours after power failure);
Communication interface: RS-485/Modbus protocol, supports integration with host computer, BMS system or third-party equipment;
Input channel: 16 programmable dry contact inputs (passive signal, supports access to smoke, temperature and other equipment);
Output control: 8 relay outputs (contact capacity: 30VDC/2A, supports linkage control of ventilation, alarm and other equipment);
System capacity: supports up to 256 detection devices or function modules (expandable multi-circuit configuration);
Environmental adaptability: Working temperature: -10°C to +55°C; Storage temperature: -20°C to +70°C;
Humidity requirement: ≤95% RH (non-condensing, in line with industrial moisture-proof standards);
Operation interface: 2.8-inch liquid crystal display (LCD), supports Chinese/English menu switching;
Extended functions: supports online firmware upgrade, built-in event record storage (≥10,000 historical data);
Protection level: IP30 shell protection, suitable for indoor cabinet or control box installation;

Functional FeaturesVogi

Power Distribution And Conversion: The 10303/1/1 module functions principally as a Power Distribution Module (PSD). In those systems where redundant central units and non-redundant I/O coexist, it accepts the output from the redundant central section Power Supply Unit (PSU) and assembles it into a single 5 VDC power supply for the non-redundant I/O section that is linked with the system. It ensures that the I/O components are supplied with a steady and recurring power supply, a necessity for the functioning of the entire system.
ensures that voltage is current shared across the length of the system → current is drawn evenly from the input of the system over input voltage may drop in the I/O group in current heavy systems. This avoids any voltage fluctuations that would degrade system performance and reliability life, such that the power supply gets loaded uniformly throughout its length. Additionally, the 5 VDC power supply range is very tight inside the margin (±5%) therefore PSD module must be placed close to the PSU module to avoid voltage drop in the wire. The minimum cable size recommended is 2.5 mm² (AWG 14).
Safety and Maintenance: PSD module replacement is possible only in a PSU de-energized position. This is a safe process preventing electric risks in the replacing and storing systems.

Freight Estimation(Part Of The Area)Vogi

Application AreasVogi

Honeywell 10303/1/1 - power distribution module is widely used in various industrial fields combining redundant and non-redundant power supply circuits. Typical applications include:
Chemical Industry: It is used to ensure the stable power supply of all kinds of control devices and sensors (temperature sensor, pressure transmitter and flowmeter, etc.) in the process of chemical production. This is important because it helps to ensure the quality and safety of chemical production.
Oil: Maintain secure power delivery for key machinery and control systems like oil storage tanks, pipelines, and refining operations in both refineries and petrochemical plants. The stable power supply can prevent equipment failure and production interruption, so that the normal operation of the entire oil production process.
The building materials industry: It is mainly used to power control systems and sensors in cement plants, glass plants and other building materials production processes, monitor and control temperature, pressure, flow and other production parameters, and ensure the quality and consistency of building materials production.
Aerospace Industry: Offering stable power for various precision instruments and control systems in aerospace products, it guides the accuracy and reliability of aerospace product testing and production process.
Electronics: Safety power supply module can be used in power system and substation and etc. electrical facilities, for control systems and monitoring equipment to provide power distribution, to ensure the stability of the power grid and safety of the electric power supply.
