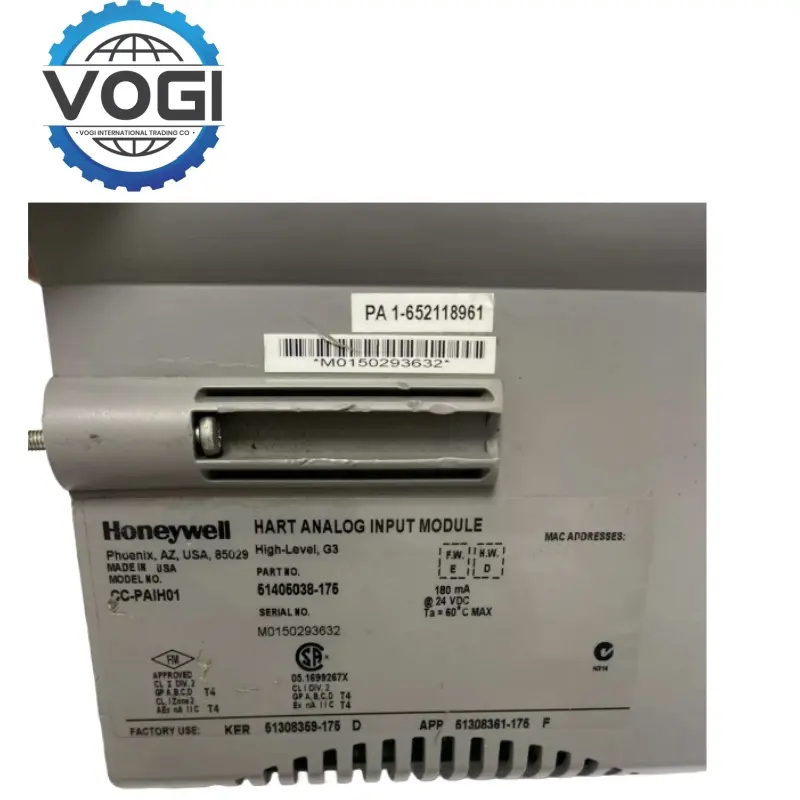

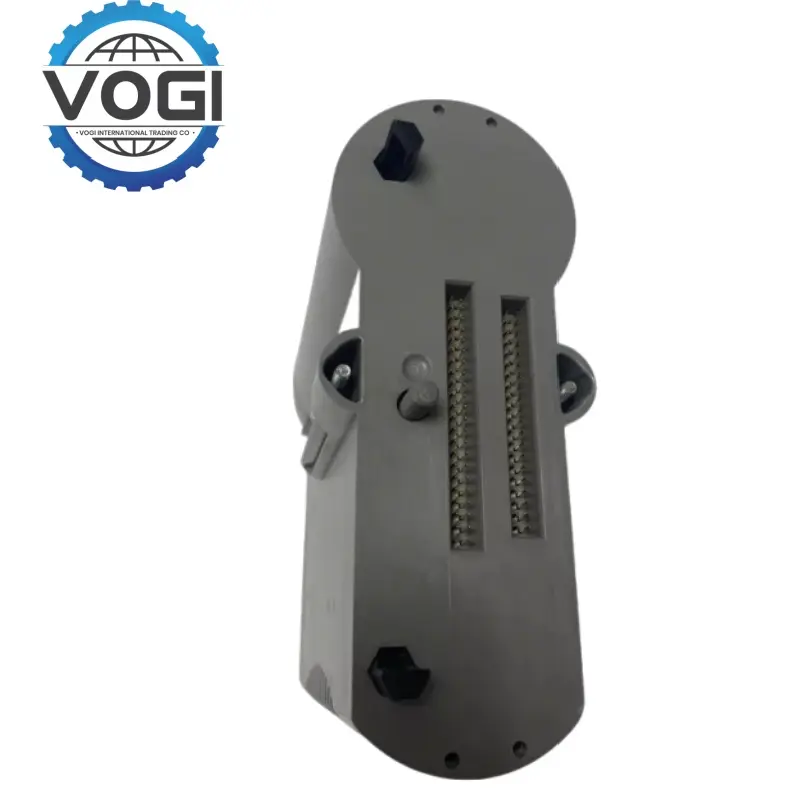

HONEYWELL CC-PAIH01 51405038-175 Hart Analog Input Module
Key SpecificationsVOGI
Input Range: 4 to 20 mA or 0 to 10 VDC
Resolution: 1 mA or 10 mV
Accuracy: +0.25% of full scale
Repeatability: +0.05% of full scale
Sampling Rate: 100 Hz
Communication Protocol: HART
Approvals: CE, UL
Environmental Rating: NEMA 4X/IP66
Key FeaturesVOGI
Multi-Inputs: HONEYWELL CC-PAIH01 51405038-175 you can use up to 16 single-ended Input covering many types of signals and used in systems where complex control is required.
Wide input range: HONEYWELL CC-PAIH01 51405038-175 can read 4-20 mA current input and 1-5 V voltage input, it can work with various types of sensors, can fit a variety of industrial application requirements.
High precision, high stability: 16 BIT A/D converter, high-precision data acquisition, and accuracy can reach ±0.075% full scale and low signal distortion, which can guarantee accurate transmission of signals; in the operating environment of 0 to 60 °C, and its accuracy can reach ±0.15%, can work stably at a variety of temperature.
Rapid response: The response speed of HONEYWELL CC-PAIH01 51405038-175 is very fast, reaching 63% of the response speed in 8 seconds, suitable for industrial process control with fast response requirements.
Good anti-jamming ability: HONEYWELL CC-PAIH01 51405038-175 has a good common mode rejection ratio (CMRR), which can effectively isolate noise even under high-interference environment to ensure the reliability of data.
High reliability: CC-PAIH01 obtained by Honeywell products, with very high reliability and stability, can adapt to harsh industrial environments, and continuously stable operation for a long time.
Easy to install: The HONEYWELL CC-PAIH01 51405038-175 has simple design, and the HART communication protocol, can flexibly be configured and diagnosed with other devices, greatly simplify the operation process.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$35 |
|
Southeast Asia |
$23 |
|
South Asia |
$45 |
|
South Africa |
$37 |
|
Europe and USA |
$24 |
|
Russia |
$37 |
APPLICATIONVOGI
Industrial Automation and Process Control: As part of Honeywell's Experion series C I/O modules, it supports high-level current or voltage inputs and is suitable for data acquisition and monitoring in industrial control systems, such as automated production lines in manufacturing, chemical, and power.
Rotating Machinery Monitoring and Metering: It can process pulse signals from rotating equipment such as turbines, flow meters, and densitometers to achieve high-precision pulse counting and frequency measurement, which is suitable for metering and custody transfer applications in the energy industry (such as oil and gas).
Smart Sensor and Transmitter Integration: It interacts with smart devices through the HART communication protocol and supports remote configuration and diagnosis of field transmitters, which is suitable for scenarios that require real-time data transmission and analysis.
Safety-critical Systems: With redundancy options, self-diagnostic functions, and non-flammable field power supply capabilities, it is suitable for environments with high reliability requirements, such as hazardous areas or critical infrastructure.
