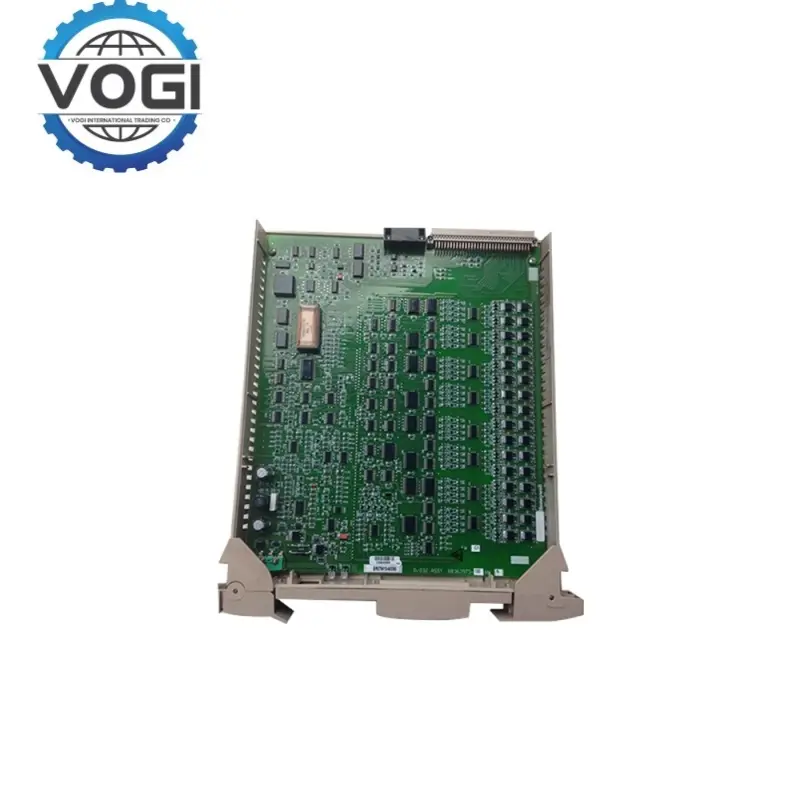

HONEYWELL MC-PDOY22 80363975-150 Digital Output (DO)

Main power supply: 24VDC ±15%

Typical power consumption: 10W.

Communication interface: Supports ControlNet, FTE network protocols

Digital output: 32 output channels (processor control);

Load capacity: Supports 250VAC/125VDC, requires 2 FTA terminal boards;

Signal compatibility: 4-20mA, 0-10V.

Redundant design: Supports redundant configuration to ensure high reliability control.

Operating temperature: -40°C to + 85°C industrial wide temperature design, suitable for harsh environments.

Protection level:IP20.

Certification and compliance: Passed international certifications such as CE, UL, and complies with industrial safety standards.

Scalability: Supports up to 16 programmable inputs, suitable for logic control.

 Industrial-grade redundant design

Supports seamless integration with Honeywell Experion PKS C300 controller, provides redundant control links and error checking function (ECC memory), and ensures high system reliability.

A single I/O link supports up to 64 modules, and the module address can be quickly configured through prefabricated jumpers to meet the needs of distributed control systems.

As a UCN series output module, it is compatible with DCS systems such as Honeywell TDC3000 and Experion PKS to achieve efficient communication with the host computer.

The hardware design complies with industrial standards and is suitable for complex industrial scenarios such as electromagnetic interference and vibration.

Supports Control Builder configuration tool, which can configure multi-speed control cycles from 50ms to 2 seconds to meet the needs of continuous control, logic control and batch production.

DCS systems used in refineries and chemical plants to achieve reactor pressure control, safety interlocks and process equipment monitoring.

Control nodes integrated in generator sets and power transmission and distribution systems to support real-time data acquisition and remote management.

As a digital output module of the PLC/DCS system, it drives production line actuators (such as valves and motors) to improve automation efficiency.

Applied to cement production lines and blast furnace control systems to achieve precise control of parameters such as temperature and flow.

Redundant control of aerospace equipment test benches and transportation hub environmental monitoring systems.
