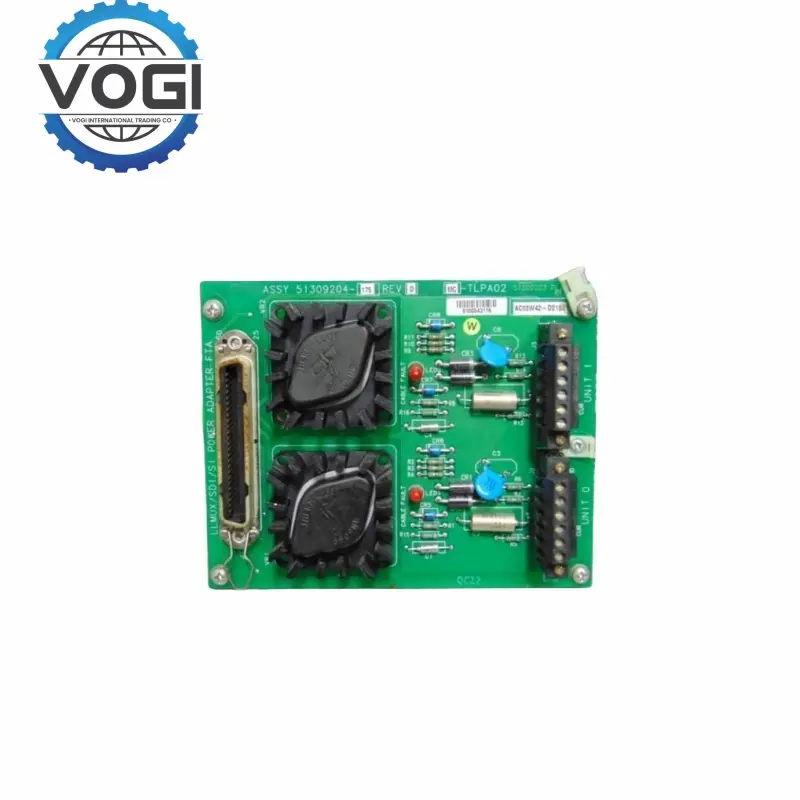

HONEYWELL MC-TLPA02 51309204-175 MCTLPA02 POWER ADAPTER

Main power supply: 24VDC ±15% (distributed to modules through 24V bus bar);

Optional redundant AC power supply: supports dual AC input (85-265VAC), output 24VDC/25A.

Backup battery: supports continuous operation of controller and I/O modules for ≥30 minutes after power failure;

Battery type: Unspecified, but the power adapter supports wide voltage input.

Redundant network support: compatible with Fault Tolerant Ethernet (FTE) and ProfiBus protocols;

I/O link rate: supports PMIO or Series C I/O communication.

Analog input: supports 8-channel pulse input (32-bit counter, compatible with single/double pulse signals, Summary 6).

Digital input/output: optional 24VDC digital module.

Single I/O link: supports up to 64 I/O modules;

Expansion capability: supports distributed deployment and hot swap of modules.

Operating range: -10°C to +60°C;

Storage temperature: -40°C to +85°C.

Humidity range: Operating humidity: 5%~95% RH.

Redundancy support: triple redundancy of power supply, controller, and network;

Seismic performance: withstands 3-axis vibration (5-150Hz) and 30G shock.

Heat dissipation management: efficient heat dissipation design, supports long-term operation and prevents overheating;

Maintenance features: modules support live plugging and unplugging to reduce downtime

Modular design: supports distributed deployment, a single I/O link can be expanded to a maximum of 64 modules, and can flexibly adapt to industrial control needs of different scales.

Hot-swap support: modules support live plugging and unplugging, reducing system downtime and improving maintenance efficiency.

Triple redundancy: supports power supply, controller, and network redundancy to ensure continuous and stable operation of the system in key industrial scenarios.

Vibration resistance and durability: withstands 3-axis vibration and 30G shock, suitable for harsh industrial environments.

Dual redundant power supply: supports dual AC input, optional backup battery (maintains controller and I/O operation for ≥30 minutes after power failure).

Integrated heat dissipation design: optimizes heat dissipation structure and extends equipment life.

Multi-protocol support: compatible with industrial protocols such as FTE, ProfiBus, HART, and seamlessly integrated into Experion PKS or other BMS systems.

Smart instrument communication: supports HART protocol, which can directly connect to smart sensors or actuators.

Programmable input/output: supports digital, analog and pulse signals (such as flow meter, turbine monitoring), 8-channel 32-bit counter.

Flexible configuration: quickly configure I/O addresses and functions through the host computer software to adapt to process changes.

Petrochemical: used for flow monitoring, valve control, and safety interlock systems. Power industry: integrated into the DCS system to achieve generator set status monitoring and redundant control.

Production line control: manage PLC logic, equipment start and stop, and fault diagnosis

Data center: redundant power supply and network design to ensure uninterrupted operation, monitor the temperature, humidity, and power status of the computer room. Transportation system: control signal lights, rail equipment, and withstand vibration and impact environments.

Predictive maintenance: obtain equipment health data through the HART protocol and warn of faults in advance.

Remote diagnosis: support network remote access to reduce on-site maintenance costs.
