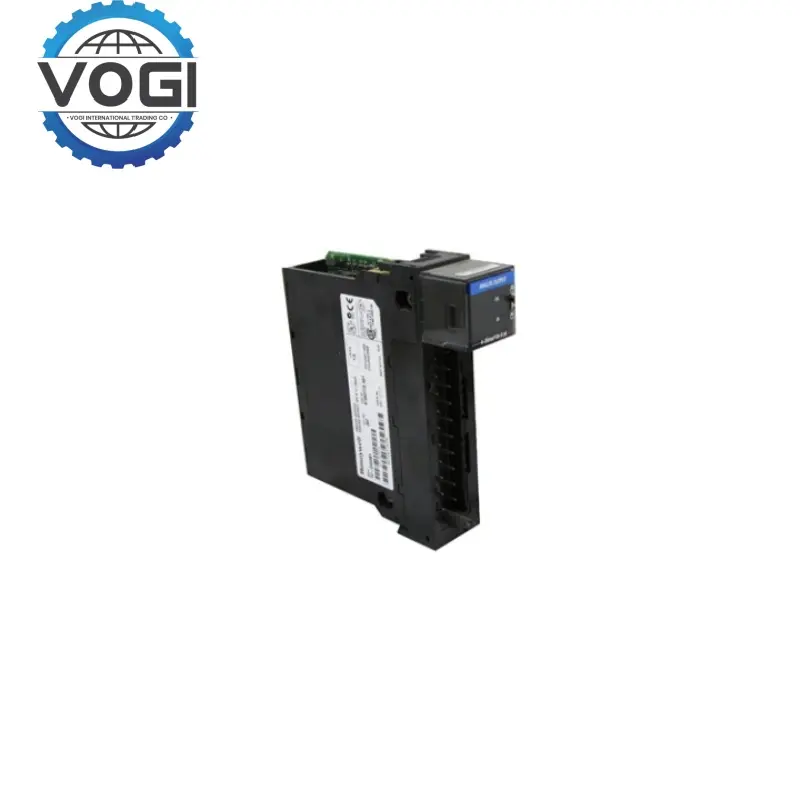

HONEYWELL TC-IXR061 Experion Analog Input

Key SpecificationsVogi

Power supply system
Main power supply: 18-32V DC (wide voltage range)
Backup power supply support: external battery pack
Signal interface
Terminal wiring method: screw terminal or spring terminal
Support two-wire / three-wire / four-wire sensor
Input impedance: >10MΩ (voltage mode)
Communication and protocol
Interface type: redundant RS-422 communication interface (for main controller connection), RS-232/RS-485 auxiliary interface (support external devices)
Environmental adaptability working conditions
Temperature range: -40℃~+70℃ (wide temperature type optional)
Humidity: 5%~95% RH (non-condensing)
Vibration: in accordance with IEC 60068-2-6 standard
Protection level
Metal shell protection: IP20 (installed in the cabinet)
Optional anti-corrosion coating (suitable for harsh environments)
Mechanical specifications
Mounting method: 35mm standard DIN rail installation
Diagnostic function
Channel-level fault detection (broken wire / short circuit / Over range)
Self-calibration function (supports online calibration)
Status indicator: power / communication / channel status
Application scenarios
Industrial process temperature monitoring, large equipment bearing temperature monitoring, environmental test chamber temperature control, energy system thermal efficiency analysis

Key FeaturesVogi

High-precision signal acquisition
Supports RTD sensors such as PT100/PT1000 and thermocouple types such as B/E/J/K, with a measurement accuracy of ±0.1% FS.
Built-in cold-end compensation technology to eliminate the impact of ambient temperature on thermocouple measurement.
Microsecond sampling rate (μs level), suitable for scenarios with rapid temperature changes.
Modular and redundant design
Hot-swappable module design, supports online maintenance.
Redundant RS-422 communication interface to ensure data transmission reliability.
Dual power input (main power + backup battery), supports system redundant power supply
Strong anti-interference and isolation protection
Isolation voltage between channels and between channels and systems up to 2546V DC (1 100-second test)
Common mode rejection ratio: 120dB@60Hz, 100dB@50Hz
RFI anti-interference capability: error <2% at 10V/m (27-1000MHz)
Intelligent diagnosis and self-calibration
Real-time detection of sensor disconnection/short circuit/overrange status
Supports online self-calibration function to reduce manual maintenance costs
Status indicator lights provide real-time feedback on power, communication and channel status

Freight Estimation(Part Of The Area)Vogi

ApplicationVogi

Manufacturing and Industrial Automation
Intelligent Development of Furnace Control: Multi-channel RTD temperature sensors are used to monitor the temperature of various partition (heating, insulation, cooling) air in the furnace to optimize the glass process technology and reduce the number of defective products.
Utility and Energy Industry
Power plant DCS system: Monitor the temperature of the equipment such as boiler, turbine, generator, etc. to ensure safe operation and integrated in the power transmission and distribution systems to monitor the thermal status of the cable, transformer and other facilities.
Petroleum and Chemical Industry
Chemical Reaction Control: Real-time monitoring of the temperature of chemical liquids in reactors and pipeline through thermocouples, and linkage with heating/cooling systems to maintain stable processing parameters.
Oil and Gas Transport Monitoring
Monitor temperature changes along the pipeline, alert to leakage or blockage risks, and improve transport safety.
Transport and environmental protection
Rail transport: It is used to monitor the temperature of the train brake system and traction motor, and prevent overheating failure; used for ambient temperature control of tunnel ventilation system.
Sewage Treatment: Monitors aeration tank temperature where biochemical reactions occur, as well as sludge treatment processes to ensure microbial activity and effective treatment.
