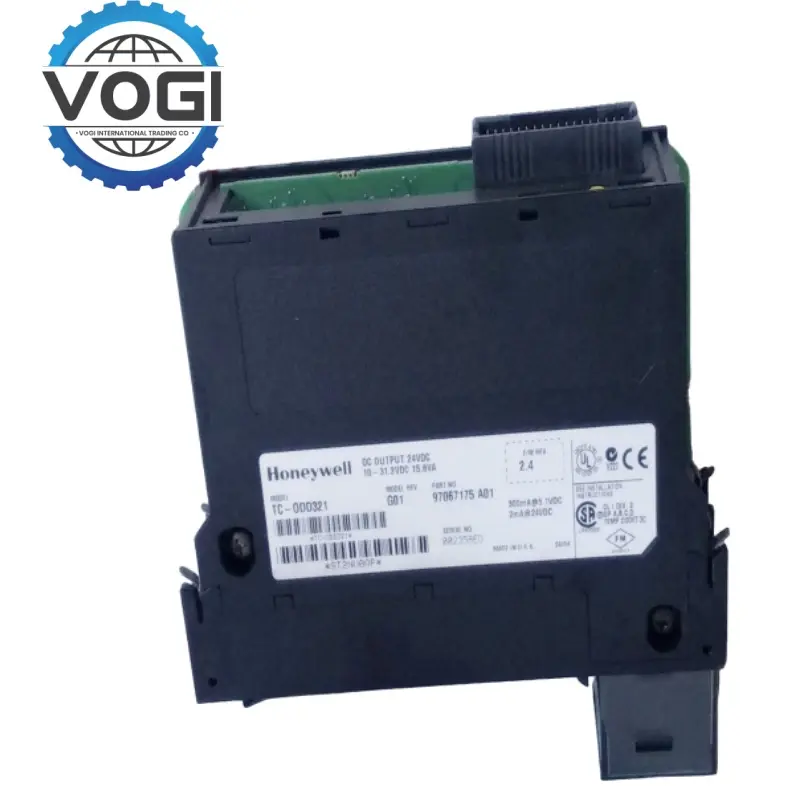

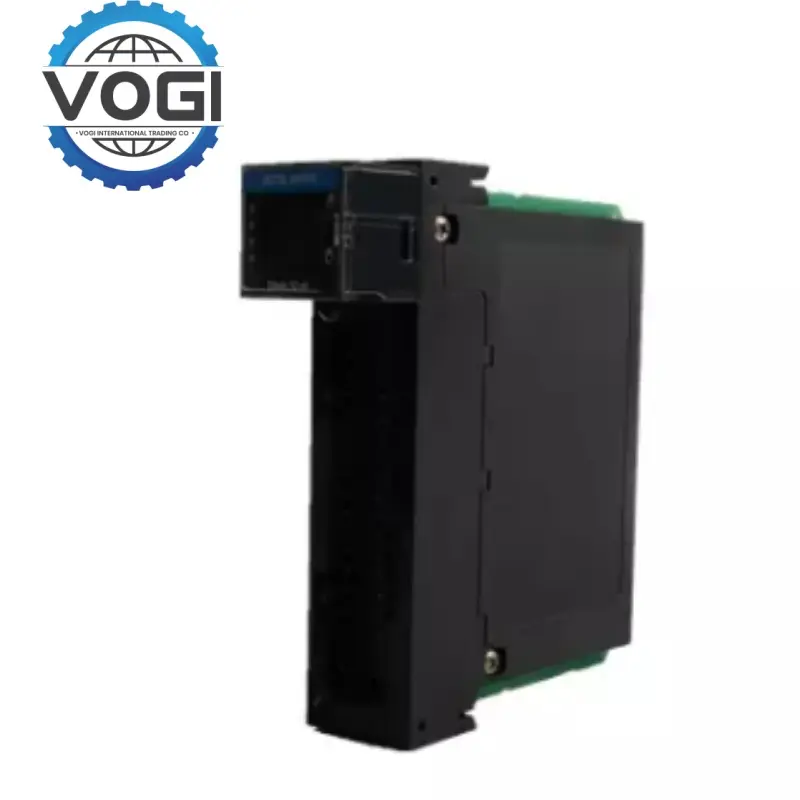

HONEYWELL TC-ODD321 Experion DC Output Module
Key SpecificationsVOGI
Number of Outputs: 32 (16 points/common)
Output Voltage Range: 10 - 31.2 V DC @ 50 °C (Linear derating), 10 - 28 V DC @ 60 °C
Surge Current: 1A for 10 ms each, repeatable every 2s @60C
On-State Current Load (Minimum): 3.0 mA per output
On-State Voltage Drop (Maximum): 1 V DC @ rated current per point (3 V DC for IEC 1131-2)
Power Dissipation: 6.1 W
Backplane Current: See module Power Consumption Data
Connection Terminal Block: TC-TBCH. 36-position terminal block.
Key FeaturesVOGI
High-performance digital output: HONEYWELL TC-ODD321 is a 32-channel digital output module with an output voltage range of 10~31.2 V DC (@50°C) and a power loss of 6.1 W, supporting stable voltage output for industrial automation scenarios.
Wide environmental adaptability: HONEYWELL TC-ODD321 has an operating temperature of -40°C to +70°C and an IP65 protection level (dust and water resistant), suitable for harsh industrial environments such as dust and moisture.
System compatibility: Designed specifically for the Honeywell DCS C200 system, it supports standard communication protocols and can be seamlessly integrated into existing control infrastructure.
Efficient power management: HONEYWELL TC-ODD321 has built-in high-speed data processing and efficient power management functions to optimize energy consumption and ensure fast response, improving the overall efficiency of the system.
Certification and reliability: HONEYWELL TC-ODD321 is CE, UL, and CSA certified, and the module is compact (weight 0.6 kg), ensuring long-term stable operation in industrial scenarios.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$43 |
|
Southeast Asia |
$31 |
|
South Asia |
$56 |
|
South Africa |
$46 |
|
Europe and USA |
$28 |
|
Russia |
$51 |
APPLICATIONVOGI
Petroleum and Chemical: Process control and safety monitoring of refineries and chemical plants.
Power and Energy: Automation control of power plants and power distribution systems to ensure stable operation of key equipment.
Heavy Industry Manufacturing: Harsh environment equipment control in scenarios such as cement production and mining machinery.
Papermaking and Shipbuilding: Logic control of papermaking production lines and fault protection of ship power systems.
Aerospace and Electronics: Automation requirements for aerospace equipment and precision electronic manufacturing.
Core adaptability: Designed specifically for the Honeywell DCS C200 system, with an IP65 protection level, it can withstand complex industrial environments such as dust and moisture.
