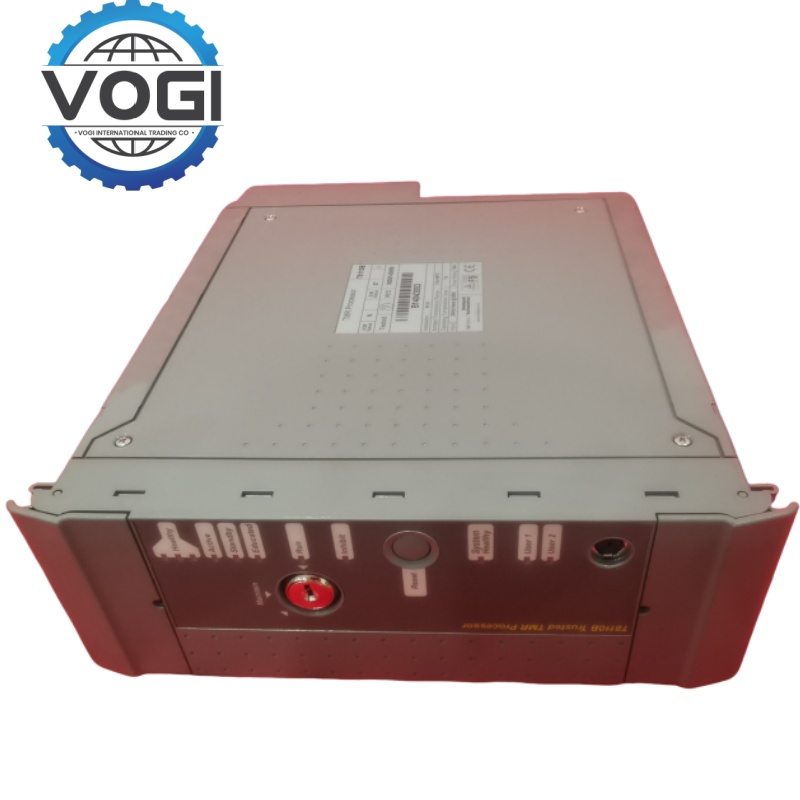

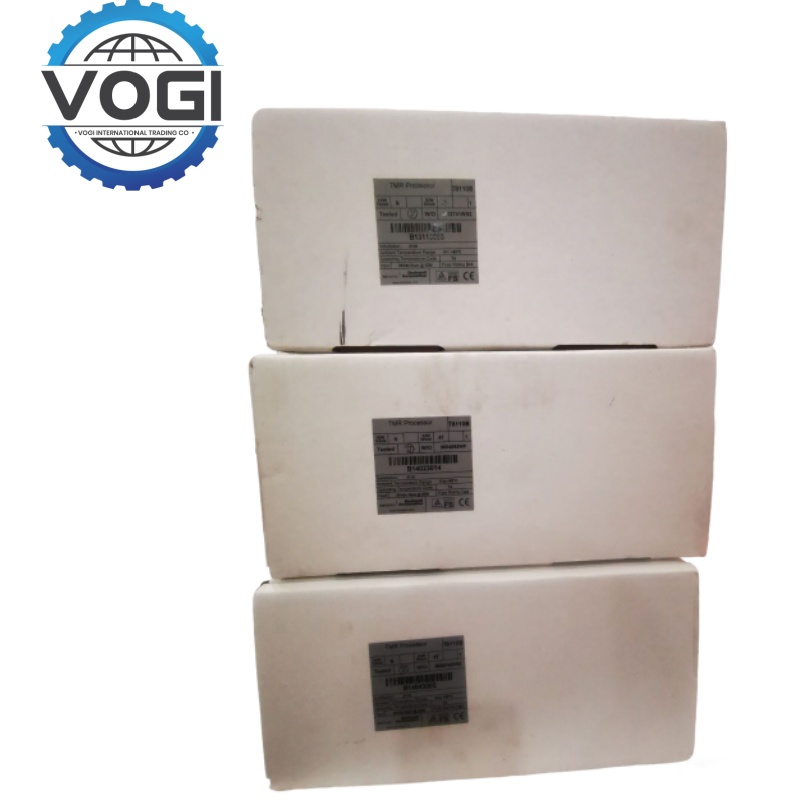

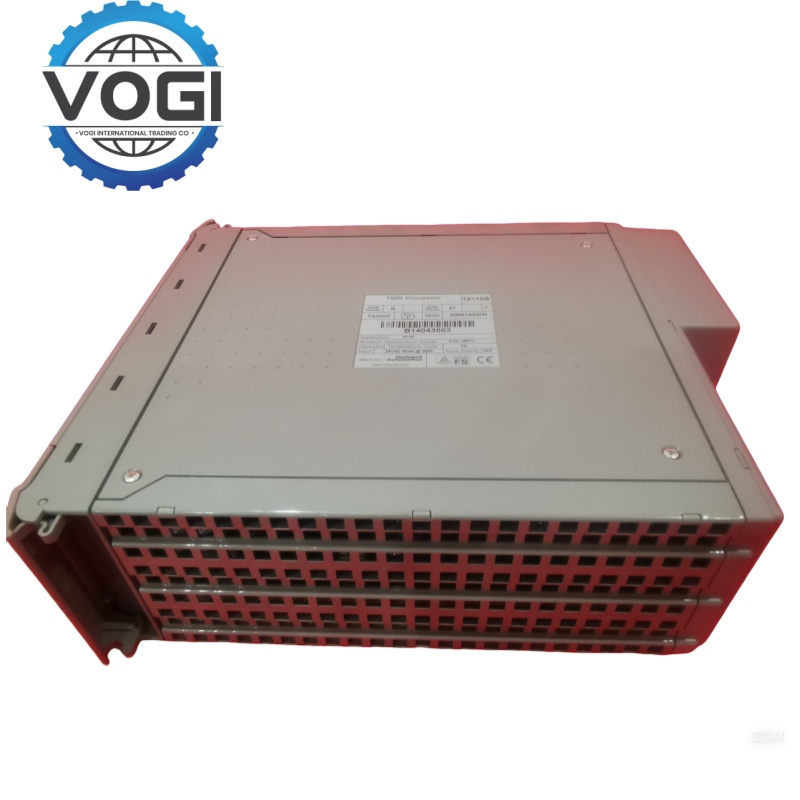

ICS Triplex T8110B Trusted TMR Processor
Key SpecificationsVOGI
1. Basic performance
Processor architecture: Triple module redundancy (TMR) design, supporting continuous system operation under single point failure.
Processor clock frequency: 100 MHz, providing high-speed data processing capability.
Programming language: Supports IEC 61131-3 standard, facilitating system development and integration.
2. Electrical and physical specifications
Voltage range: 20~32V DC, adapted to industrial standard power input.
Heat dissipation: 80 W, required for use with chassis.
3. Environmental adaptability
Operating temperature: 0°C to 60°C (32°F to 140°F).
Non-operating temperature: -25°C to 70°C (-13°F to 158°F).
4. Communication and interface
I/O interface: Adopts Trusted TMR Inter-Module Communications Bus (triple redundant inter-module bus) to ensure communication reliability.
SOE buffer: supports storage of 1,000 events, expandable to 4,000 events CI buffer.
5. Function and redundancy
Fault diagnosis: real-time monitoring of system status, supporting automatic fault detection and recovery.
Maximum load capacity: 80 W, meeting the needs of high-load industrial scenarios.
Key FeaturesVOGI
Triple Redundancy Architecture (TMR): The three modules of ICS Triplex T8110B run in parallel, and single-point failures are automatically fault-tolerant, ensuring 99.999% high availability of the industrial control system.
High-speed processing capability: ICS Triplex T8110B has a 100 MHz processor, supports real-time data calculation and complex logic control, and is compatible with IEC 61131-3 standard programming.
Redundant communication interface: TMR inter-module bus design ensures the reliability of the communication link; supports 1000~4000 event records (SOE/CI buffer).
Harsh environment adaptation: The operating temperature of ICS Triplex T8110B is 0~60°C, and it can withstand -25~70°C in non-working state, which is suitable for extreme conditions in industrial sites.
Efficient maintainability: The modular design of ICS Triplex T8110B supports hot-swap replacement and seamless integration with ICS Triplex series chassis (such as T8100).
Typical applications: high reliability scenarios such as petrochemical (reactor control), power system (power plant), and nuclear power safety (fault-tolerant protection).
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$50 |
|
Southeast Asia |
$40 |
|
South Asia |
$67 |
|
South Africa |
$54 |
|
Europe and USA |
$30 |
|
Russia |
$61 |
APPLICATIONVOGI
Oil and gas: control reactor temperature/pressure, tank level interlock, support emergency shutdown and fire monitoring of offshore drilling platforms.
Electricity and nuclear power: power plant turbine speed regulation, nuclear power plant safety protection, distribution automation monitoring circuit breaker status.
Chemical and pharmaceutical: high temperature reactor interlock protection, hazardous chemical production process monitoring, pharmaceutical equipment start and stop logic control.
Infrastructure and public facilities: building automation, water treatment flow regulation, railway signal and tunnel ventilation system.
Safety monitoring: fire alarm, energy management equipment status monitoring.
