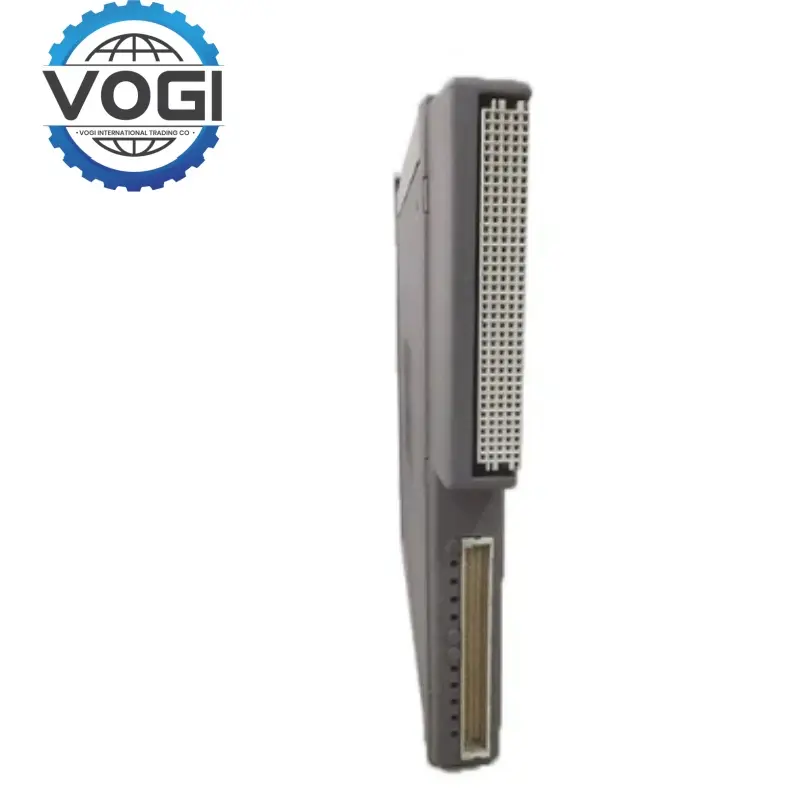

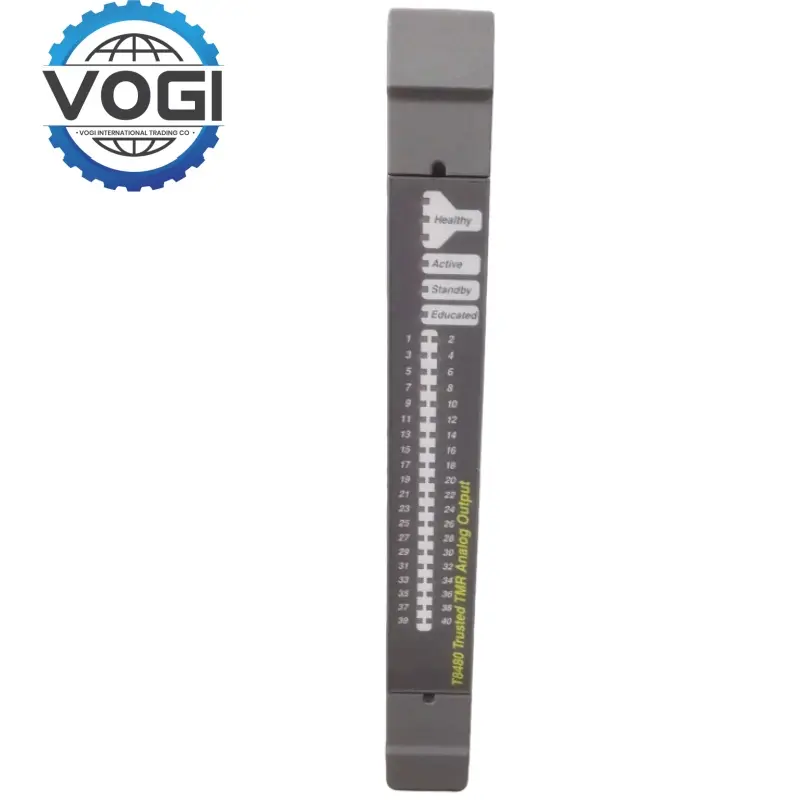

ICS Triplex T8480 Trusted TMR Analogue Output Module
Key SpecificationsVOGI
Output capacity: 40 independent output channels, 2A current per channel, output voltage range DC 24V / 0~60V DC.
Power supply and voltage: Main power supply: AC 220V-480V±10%; Auxiliary voltage: AC 220V±15%.
Redundancy and safety: Triple redundant (TMR) architecture, failure rate <10 FIT, TÜV certification in accordance with IEC 61508 SIL 3.
Environmental adaptability: Operating temperature: -20℃~+70℃ (storage temperature -40℃~+85℃); protection level IP67.
Isolation and protection: 2500V photoelectric isolation, automatic overcurrent protection (per channel, no external fuse required).
Communication interface: Supports optical fiber, Ethernet (10/100/1000 Mbps), Modbus RTU/TCP protocol.
Diagnostic function: 1ms resolution sequence of events (SOE) report, real-time LED status indication.
Key FeaturesVOGI
Triple Redundancy Architecture: ICS Triplex T8480 adopts TMR (Triple Modular Redundancy) design, single point failure does not affect system operation, failure rate **<10 FIT**, passed TÜV certification, complies with IEC 61508 SIL 3 standard, suitable for safety-critical scenarios.
High-density output and isolation: ICS Triplex T8480 has 40 independent output channels, each channel supports 2A current and 24V DC voltage, 2500V optoelectronic isolation, 8 groups of isolated power supplies (5 channels per group) to avoid interference.
Intelligent diagnosis and protection: ICS Triplex T8480 can detect open circuit, short circuit and load faults in real time, 1ms resolution event sequence (SOE) report, automatic overcurrent protection (no external fuse required).
Industrial-grade environment adaptability: ICS Triplex T8480 has an operating temperature of -20℃~+70℃ (storage temperature -40℃~+85℃), humidity of 10%~90%RH, protection level IP67, and can withstand dust and humid environments.
Modularity and scalability: ICS Triplex T8480 supports expansion to 128 channels through SmartSlot slots, allowing online hot-swap maintenance to reduce downtime.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$51 |
|
Southeast Asia |
$15 |
|
South Asia |
$56 |
|
South Africa |
$46 |
|
Europe and USA |
$27 |
|
Russia |
$51 |
APPLICATIONVOGI
Petrochemical and oil and gas storage and transportation: used for emergency shutdown system and oil and gas storage and transportation safety interlock; supports high-pressure protection and real-time pressure control of turbine compressors to prevent overpressure accidents in oil and gas transportation.
Nuclear power and industrial safety: meets the IEC 61508 SIL 3 standard and is used for safety interlock, emergency shutdown and boiler combustion management of nuclear power plants.
Industrial manufacturing and process control: drives the temperature/pressure adjustment of shoemaking machinery, plastic bottle blowing machines, and textile machinery, and is suitable for 0~100% output voltage and 8 seconds slow start function; used for electric melting furnaces, vacuum evaporation machines and other equipment, providing high-precision analog output control.
Power system and utilities: integrated in electric boilers and power grid equipment, supports AC 220V-480V wide voltage input, and is suitable for distributed energy management.
Complex industrial environment: withstands -20℃~+70℃ temperature and IP67 protection, suitable for high dust and humidity scenes such as chemical plants and refineries.
