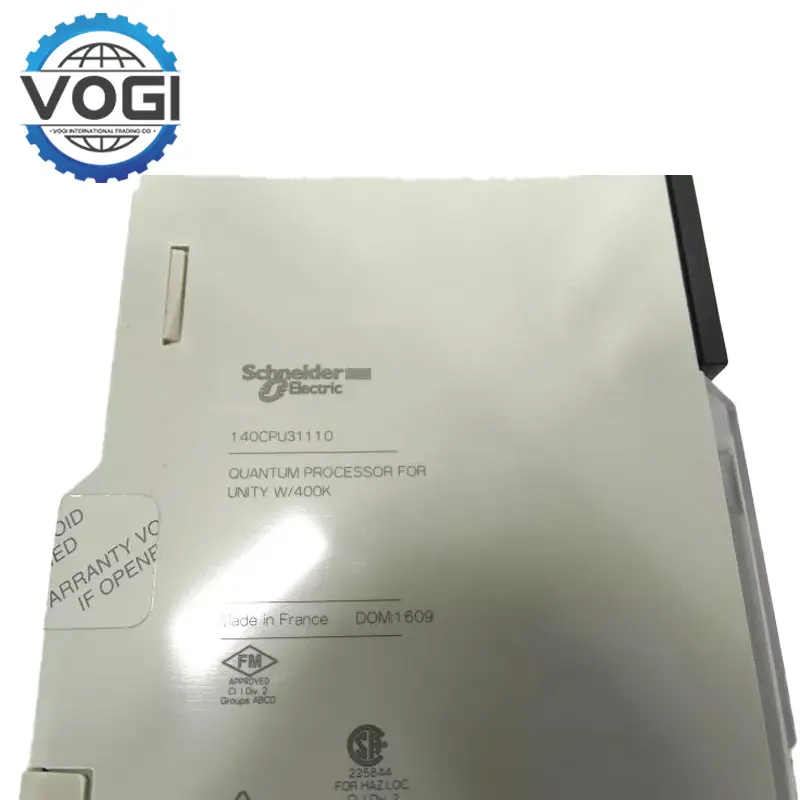

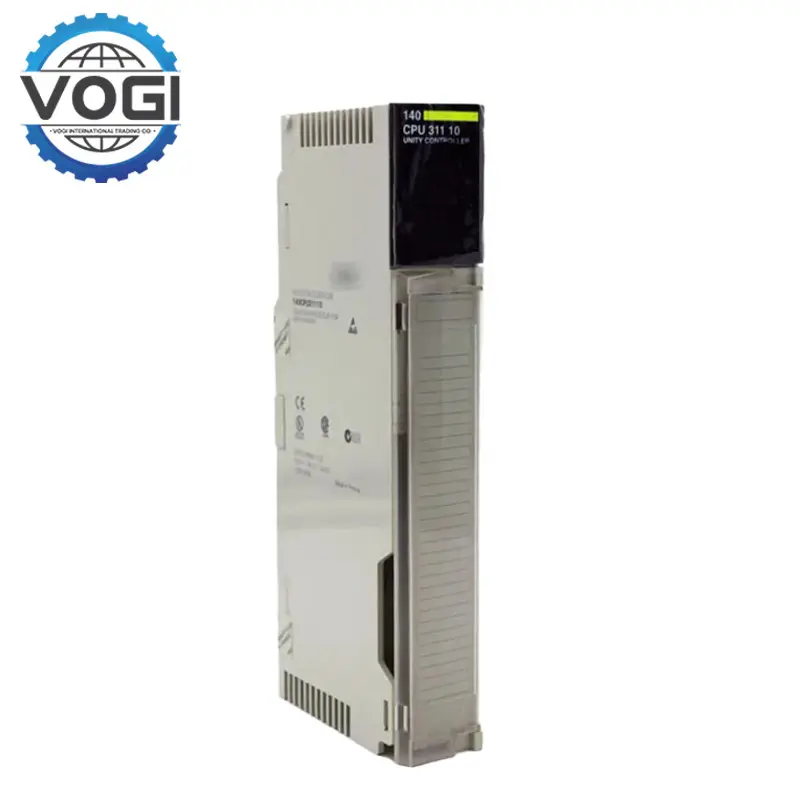

Schneider 140CPU31110 Unity processor

Number of racks：2 - local rack(s).

Clock frequency：66 MHz.

Memory description：Internal RAM 548 kB.

Flash memory: 1 MB.

Bus current requirement：1800 mA.

Number of optional modules ：2.

Integrated connection type ： 1 Modbus Plus with；2 Modbus with.

Vibration resistance: 2g (5-500 Hz).

Shock resistance: 30g (11 ms pulse).

Operating temperature: 0°C to 60°C.

Scalable and High-Performance Computing and Processing Capabilities: 66MHz processor and 548KB RAM memory enable high-speed computation of complex control tasks, such as real-time data acquisition, logical operations and closed-loop control, suitable for industrial scenarios with high requirements for real-time performance. Schneider 140CPU31110 has a short processing time and fast response response speed, can at the same time manage up to 8192 discrete input/output point, and meet for large-scale automation system requirements.

Modular design and scalability: Schneider 140CPU31110 architecture supports flexible expansion of digital/analog I/O modules, communication modules and distributed control systems (DCS) to adapt to industrial applications of different sizes. For example, remote I/O communication can be achieved by adding RIO Ethernet modules, while power supply modules provide redundant power supply to ensure system stability.

Flexible Programming And Debugging Functions: Multi-programming language modes such as ladder diagram (LD), function block diagram (FBD) and structured text (ST) are supported according to IEC 61131-3 standard, which is convenient for the development of custom logic. For example, Unity Pro software can be applied to realize an engineering application in rail transit signal systems for real-time debugging, task management and fault diagnosis to quickly find program errors.

Manufacturing Automation: Schneider 140CPU31110 is applicable to accurate positioning of mechanical arms and dynamic synchronization of assembly processes in automobile production lines, and integrated with quality inspection systems to achieve real-time defect analysis; management of line speed adjustment and temperature monitoring during the packaging process in the field of food processing, and through the HACCP protocol to ensure compliance with hygiene standards.

Power and chemical production: as the power system core controller through coordination substation equipment, the achievement of grid load balanced and energy efficiency optimal; supporting automatic switching to backup power in the fault; in chemical plant managing reactor pressure, temperature and material transportation, through PID algorithm to the realisation of fine control over chemical reaction process.

Infrastructure Management: Schneider 140CPU31110 is used in sewage treatment plants to control the start and stop of pump stations, flow regulation, and combines water quality sensors to achieve dynamic PH balance; Integrated air conditioning, lighting and security systems in smart buildings, and achieved energy consumption analysis, remote operation and maintenance through BACnet protocol.
