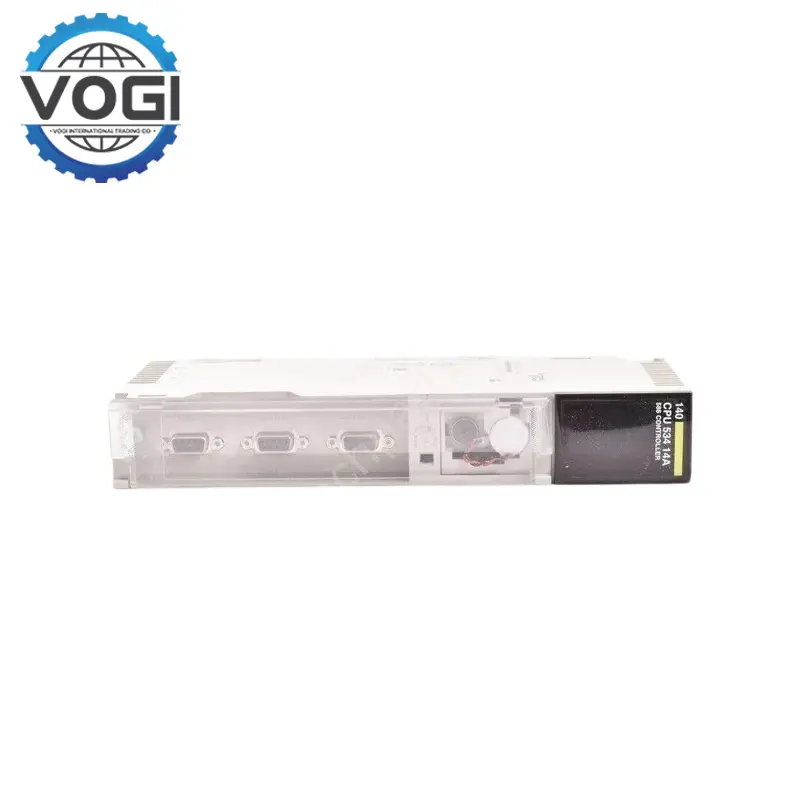

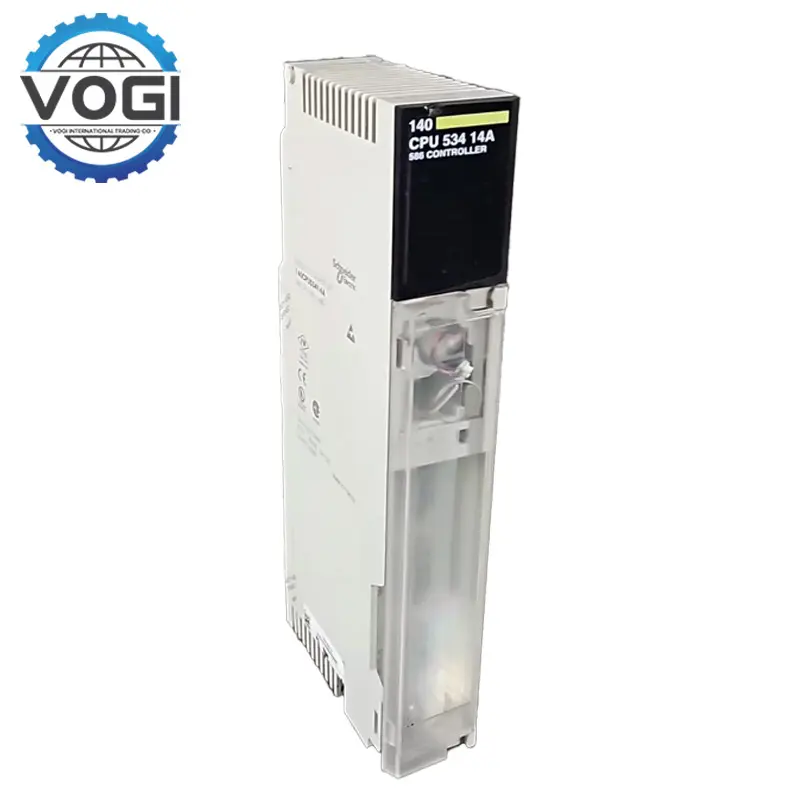

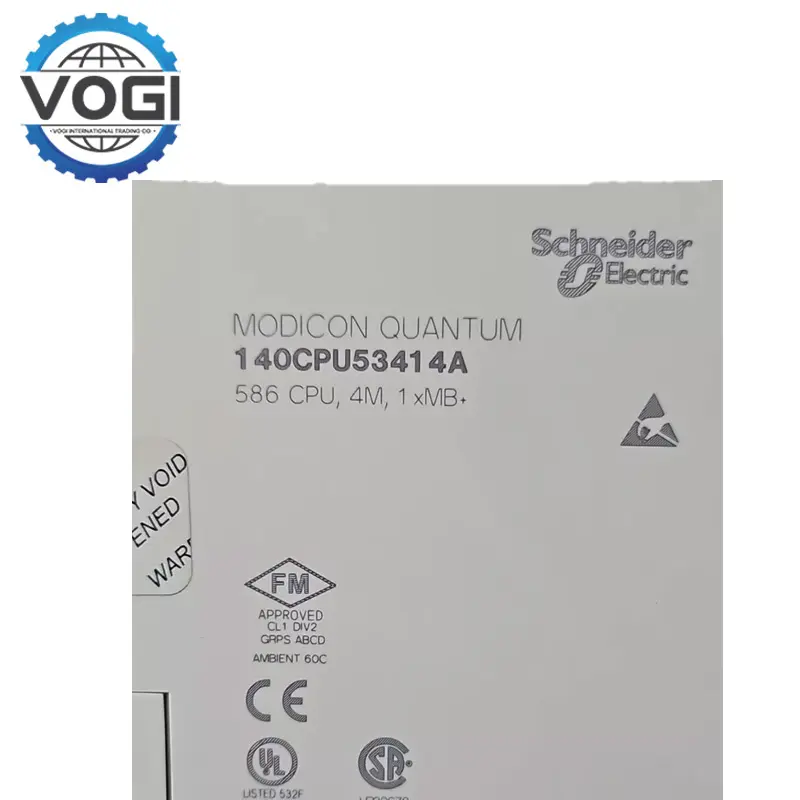

Schneider 140CPU53414A QUANTUM 534 PLC CONTROLLER

User logic: 64K words.

Discrete: 64K (any combination).

Registers: 57K.

Extension registers: 96K.

IEC application memory: 2.5 MB.

Maximum I/O words: 64 inputs + 64 outputs.

Number of backplanes supported: 1.

Maximum number of networks: 3.

Maximum words per network: 500 inputs + 500 outputs.

Maximum words per node: 30 inputs + 32 outputs.

Communication modules support: Modbus Plus, Ethernet (TCP/IP/SY/MAX/MMS), Profibus, LonWorks, SERCOS.

Built-in Modbus/Modbus Plus interface：Schneider 140CPU53414A supports Modbus RTU, ASCII and software configurable modes​, and is compatible with many third-party devices.

Bridge Function: Enables easy bridge between Modbus and Modbus Plus protocol communications, for cross-network data interaction.

Local backplane: A backplane can support up to 64 input/output words, and local I/O modules can be connected directly.

Further remote and distributed I/O：Can also be extended to 31 remote nodes via Modbus Plus or the remote I/O network, supporting 64 input/output words per node, while the distributed I/O (DIO) network can cover up to 3 networks, with each supporting 500 input/500 output words, making it suitable for large-scale distributed control systems.

Real time data processing: Schneider 140CPU53414A meets the real-time requirements of high-speed production lines, packaging machinery and other scenarios through high-speed scanning cycles (microsecond response) and dedicated communication channels.

Memory protection mechanism: Software key switches lock programs and data in use, preventing any accidental or malicious modifications while ensuring operational stability.

Multi-axis motion control: Integrate 140MMS42500 multi-axis motion controller to achieve precise machining, robot motion control and other functions.

Manufacture of automobiles: Schneider 140CPU53414A is used in control of the body welding line, joint operation of assembly robots, quality inspection system.

Food and beverage: synchronizing filling line speed, packaging machinery positioning, batch production management.

Metal processing: multi-axis linkage of CNC machine tools, pressure control of stamping equipment, laser cutting path planning.

Smart building: integrated HVAC system, lighting control, security monitoring (access control/fire alarm).

Transportation hub: subway signal system, airport baggage sorting, tunnel ventilation and lighting management.

Data center: UPS power management, computer room temperature and humidity monitoring, energy consumption optimization.

AGV navigation: Schneider 140CPU53414A can communicate with the host computer through Modbus Plus to achieve path planning and obstacle avoidance.

Cold chain logistics: cold storage temperature and humidity monitoring, refrigeration unit linkage, cargo traceability.
