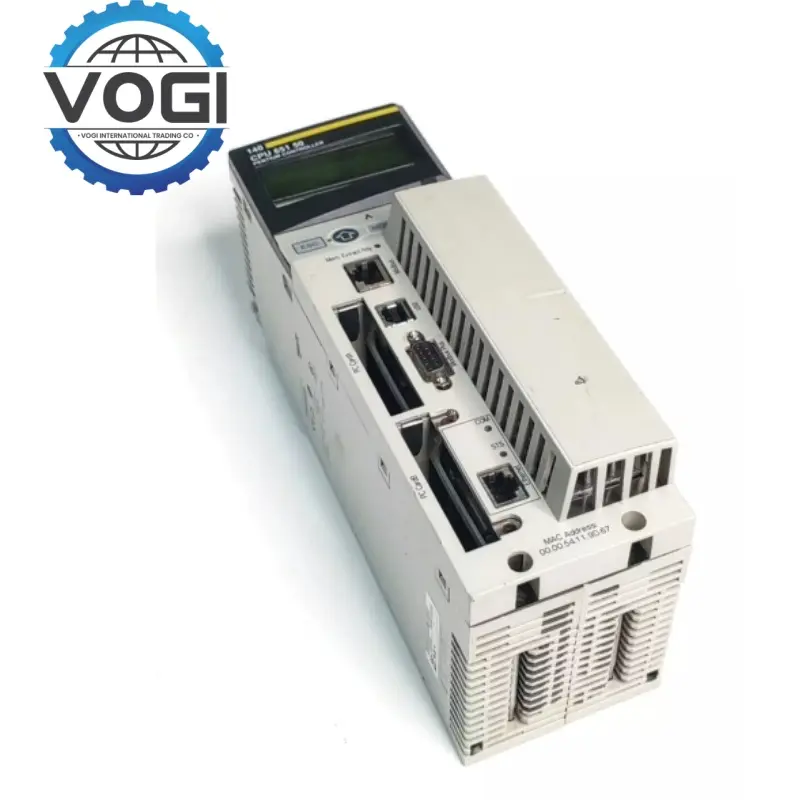

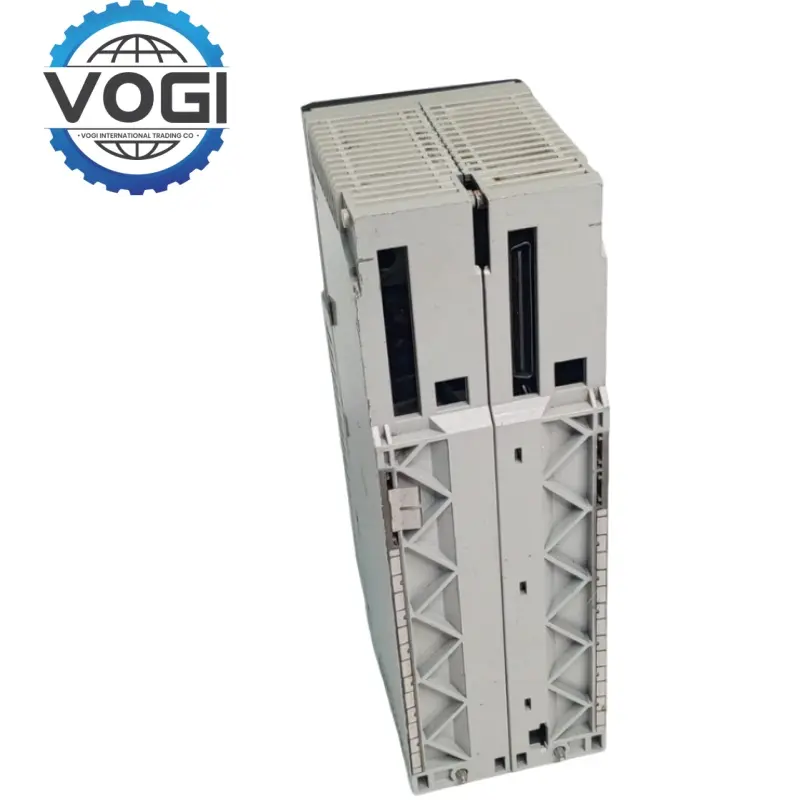

Schneider 140CPU65150 Unity Processor
Key SpecificationsVOGI
1.Hardware configuration
Main frequency: 166 MHz, supports dual-processor architecture
Program memory: 768 KB.
Data storage: 8 MB.
Communication interface:
Integrated interface: 1×Ethernet TCP/IP (RJ45), 1×Modbus Plus (Sub-D 9-pin), 1×Modbus RS232/485 (RJ45), 1×USB 2.0.
Expansion interface: supports 6 optional modules.
Power supply: 5 V DC, power consumption ≤2.16 A.
Load power supply: 24 V DC (±10%), supports redundant power supply.
2. Performance indicators
Execution speed: 10.28 k instructions/ms (100% Boolean operation), 0.0525–0.075 μs/Boolean instruction.
I/O Capacity: Local unlimited (26 slots), remote 31,744 points, distributed 8,000 points/network.
Analog: Local unlimited (26 slots), remote 1,984 points, distributed 500 points/network.
Main Task: 1 ms cycle, supports loop control.
Fast Task: 0.2 ms cycle, for high-speed response.
Interrupt Task: 128 I/O interrupts, 128 event interrupts, 32 timer interrupts.
3. Environmental adaptability
Operating temperature: 0°C to + 60°C (standard), -25°C to + 70°C (extended).
Storage temperature: -40°C to + 85°C.
Protection level: IP20
Certification: CE, UL, CSA, GOST, supports HazLoc (hazardous area) certification.
Key FeaturesVOGI
1. High reliability and redundant design
Hot-swap function: the module can be replaced online, supports hot standby redundancy, and the fault switching time is < 20 ms.
Diagnosis and fault tolerance:
LED status indication: Schneider 140CPU65150 provides real-time feedback on CPU operating status (green), communication errors (red) and power failures.
Built-in diagnostic buffer: records abnormal events and supports remote monitoring.
Hardware redundancy:
Dual CPU hot standby: Schneider 140CPU65150 achieves seamless switching between active and standby CPUs through Unity Hot Standby.
Power redundancy: Schneider 140CPU65150 supports dual 24 V DC input to ensure uninterrupted system operation.
2. Flexible expansion and compatibility
Modular architecture:
Schneider 140CPU65150 supports Quantum series expansion modules, which are connected to the CPU via the backplane bus.
Distributed I/O: Compatible with ET 200M, Modbus Plus and Ethernet Quantum Remote I/O, supporting cross-segment communication.
Protocol adaptation:
Industrial protocols: Profinet IRT, Modbus TCP, OPC UA, DNP3, supporting integration with third-party devices.
Programming software: Compatible with Unity Pro and EcoStruxure Control Expert, supporting modular programming and version management.
