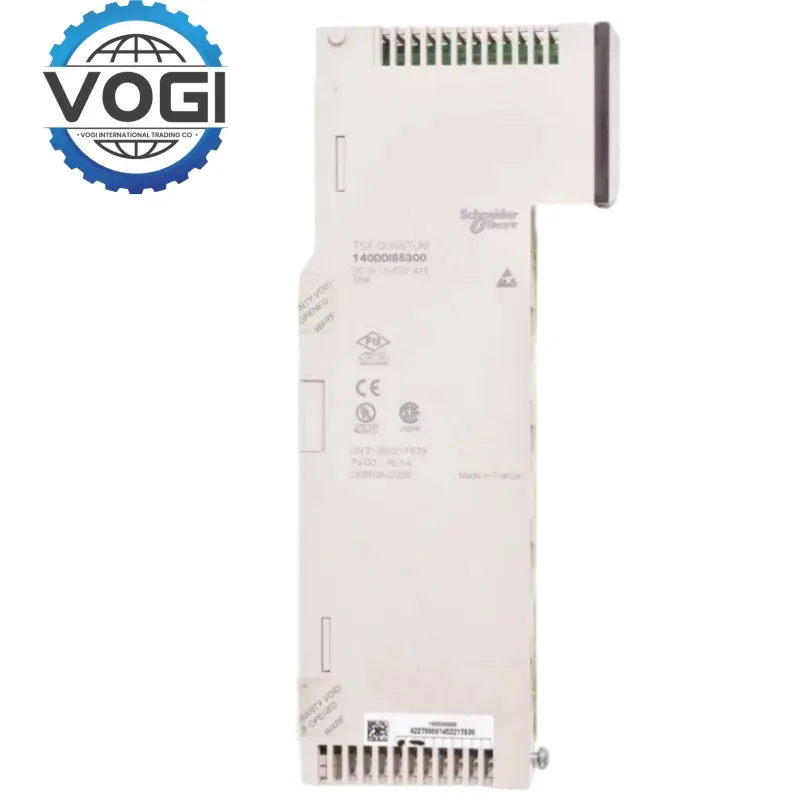

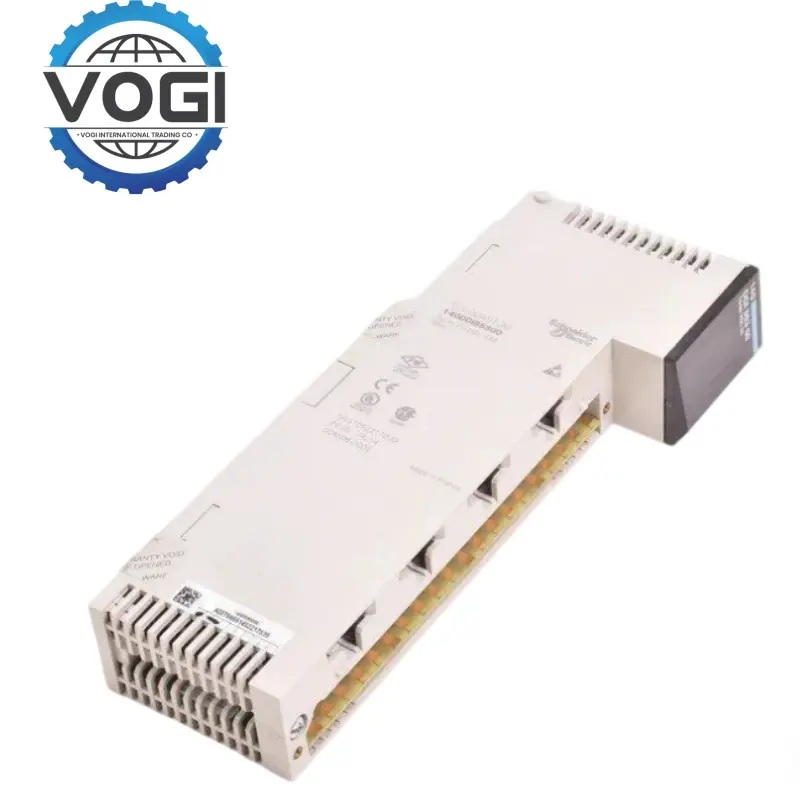

Schneider 140DDI85300 Dc discrete input module

Voltage range: 24 V DC (±10%), compatible with 10–60 V DC wide voltage input.

Signal type: Differential input, source/sink input can be flexibly configured through wiring

Channel specifications:

Number of channels: 32 points (4 points per group, 8 groups in total), each group supports independent diagnosis and filter settings.

Isolation characteristics: Channel-to-channel isolation 1000 V AC (1 minute), input and backplane bus isolation 500 V AC (1 minute).

2.Power supply:

Backplane bus: 5 V DC, power consumption ≤750 mA.

Load power supply: 24 V DC (±10%), supports short-circuit protection.

3. Signal processing:

Response time: <1 ms (standard input), supports 0.2 ms fast input (needs to be configured through software).

Filtering function: Configurable 12 ms hardware filtering to suppress high-frequency interference (such as motor start and stop noise).

4. Diagnostic functions:

LED indicators: Real-time feedback of channel status (green), module errors (red) and power failure.

Fault logging: Built-in diagnostic buffer to record abnormal events.

Operating temperature: -40°C to + 70°C (standard), -25°C to + 70°C (extended).

Storage temperature: -40°C to + 85°C.

Protection level: IP20, suitable for installation in control cabinets.

Certification: CE, UL, CSA, FM (hazardous area certification), in accordance with IEC 801-2/3 interference immunity standards.

Electrical isolation:

Channel isolation 1000 V AC, effectively preventing ground loop interference, suitable for mixed strong and weak current environments.

Differential input: Schneider 140DDI85300 transmits signals through twisted pair cables, suppresses common mode noise, and the signal transmission distance can reach 100 m.

Wide voltage compatibility:

Schneider 140DDI85300 supports 10–60 V DC input, and can directly connect to devices with different voltage levels such as proximity switches and buttons, reducing the intermediate relay conversion link.

Modular architecture:

Schneider 140DDI85300 supports Quantum series expansion modules, connected to the CPU through the backplane bus, and can expand up to 26 modules.

Distributed I/O: Compatible with Modbus Plus, Ethernet Quantum Remote I/O and third-party devices, supporting cross-segment communication.

Protocol adaptation:

Industrial protocol: Schneider 140DDI85300 supports Modbus TCP and Profinet RT through the CPU module (needs to be paired with a CPU that supports the protocol).

Programming tool: Compatible with Unity Pro and EcoStruxure Control Expert, supports modular programming and version management.

Safety standard:

SIL 2: Schneider 140DDI85300 achieves safety control through the Safety CPU module.

Fail-safe function: supports PROFIsafe protocol and complies with IEC 61508 standard.

Equipment Control:

Packaging Machinery: Monitor the photoelectric sensor and proximity switch signals, control the start and stop of the servo motor and the action of the heat sealing knife.

Robot Integration: Receive the robot arm status signal through the Profinet interface

2. Process Control

Energy and Power:

Substation Automation: Monitor the opening and closing status of circuit breakers and disconnectors, and transmit them to the SCADA system through Modbus TCP.

Photovoltaic Power Station: Collect the fault signal of the inverter, trigger the alarm and automatically switch to the backup equipment.

3. Transportation

Railway Transportation:

Signal System: Monitor the position of the turnout and the status of the signal light, and transmit them to the central control system through Ethernet Quantum Remote I/O.

Intelligent Transportation: Receive traffic flow sensor signals and optimize the timing of intersection signal lights.

4. Building Automation

HVAC System:

Elevator Control: Monitor the floor button and door limit switch signals to realize intelligent elevator scheduling.

Lighting Management: Receive the light sensor and human infrared sensor signals to automatically adjust the brightness of the LED lights.
