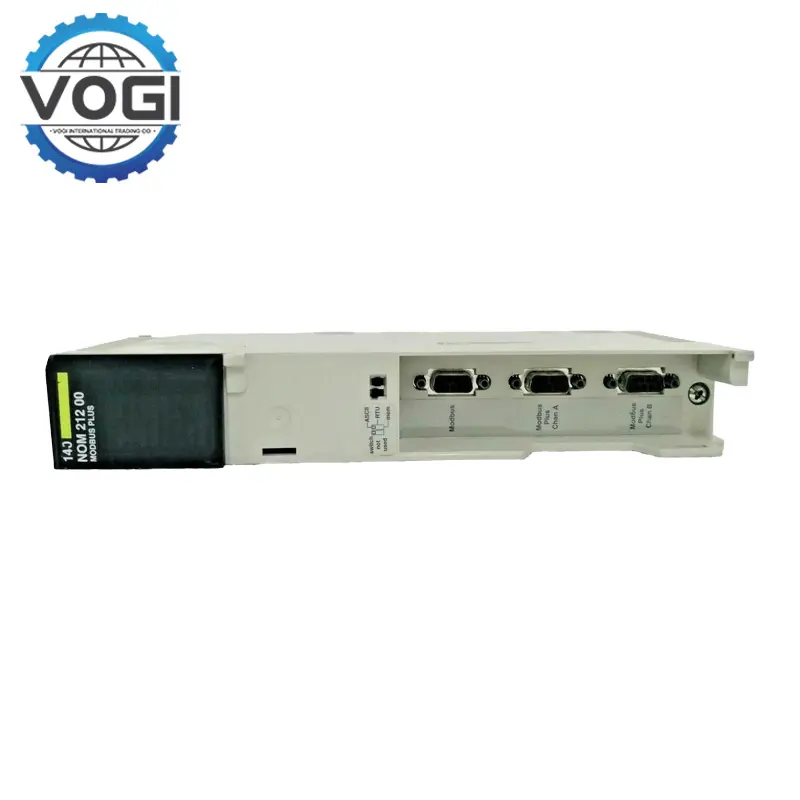

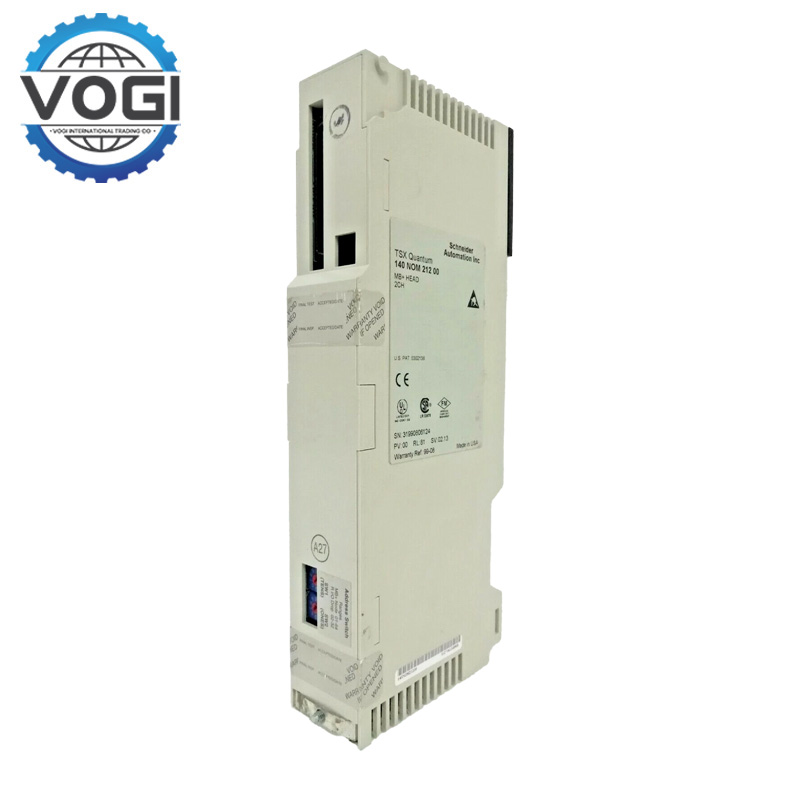

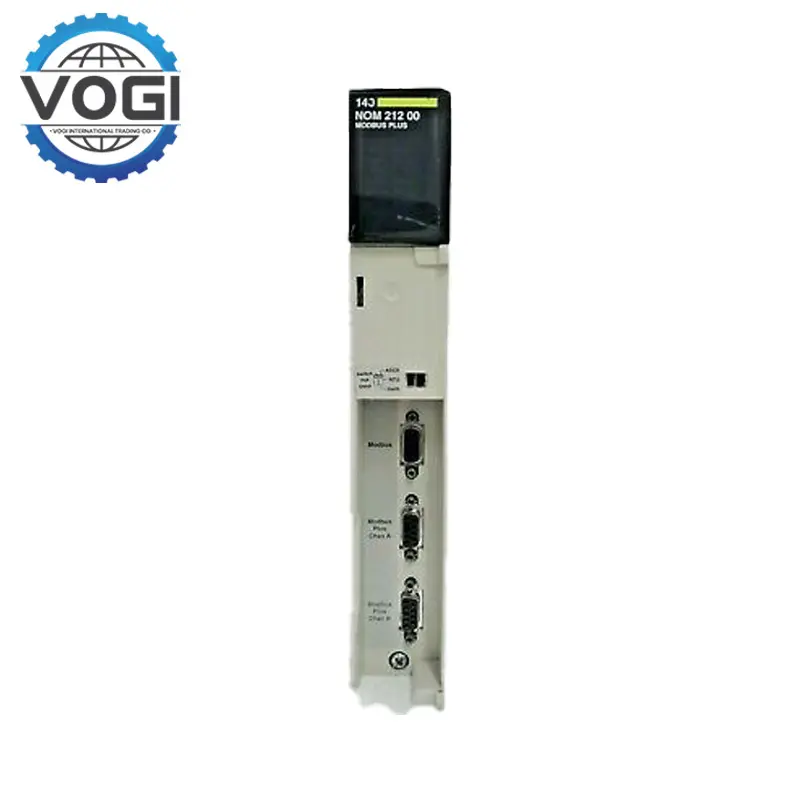

Schneider 140NOM21200 DIO drop interface Modicon Quantum

Ethernet interface: Equipped with 2 RJ45 interfaces, supporting 10/100Mbps adaptive transmission rate, following IEEE 802.3 standard, dual-link redundant connection can be realized to improve network reliability.

Protocol support: Supports multiple industrial and network communication protocols such as Modbus TCP, Ethernet/IP, TCP/IP, UDP, SNMP, etc., which is convenient for integration with equipment and systems of different manufacturers.

Network function: Supports network redundancy function; can be used as client or server, supports multiple connections concurrently, and meets the data interaction requirements of complex industrial networks.

Main power supply: 24V DC, input voltage range 19.2 - 30V DC.

Power consumption: about 18W, low operating power consumption, in line with industrial energy-saving requirements.

Operating temperature: - 25°C to + 70°C

Humidity range: 5% - 95% RH

Protection level: The protection level is IP20, which can prevent the entry of solid foreign objects with a diameter greater than 12.5mm, and is suitable for conventional indoor industrial environments.

Diagnostic function: 1) Equipped with multiple LED status indicators to intuitively display the status of power supply, network connection, data transmission, link redundancy, etc.

2) With self-diagnosis function, it can automatically detect internal faults of the module and feedback fault information through indicator lights or communication protocols .

Installation method: It adopts modular design and is compatible with Modicon Quantum series racks. It is easy to install and disassemble, and is convenient for system integration and later maintenance .

Certification standards: It has passed international certifications such as CE, UL, CSA.

High reliability communication: Dual RJ45 interfaces and network redundancy function, combined with fast link switching technology, greatly reduce the risk of network interruption and ensure stable operation of industrial automation systems.

Broad protocol compatibility:Schneider 140NOM21200 Supports a variety of industrial and network communication protocols, can easily connect to different brands of equipment and systems, eliminate communication barriers, and improve system integration flexibility.

Convenient fault diagnosis: Schneider 140NOM21200 Rich LED indicators and self-diagnosis functions make it easy for operation and maintenance personnel to quickly locate faults, shorten troubleshooting time, and reduce maintenance costs.

Flexible network configuration:Schneider 140NOM21200 Supports client/server multi-mode operation, and can flexibly configure network architecture to meet the networking needs of industrial automation projects of different scales.

Large-scale industrial automated production lines: In large-scale production lines such as automobiles, steel, and chemicals, high-speed and stable data interaction between equipment is achieved to ensure automated control and real-time monitoring of production processes.

Smart factory construction: The industrial Ethernet architecture used to build smart factories connects production equipment, warehousing and logistics systems, and management information systems to achieve comprehensive collection and intelligent analysis of production data.

Energy and power systems: In energy scenarios such as substations and power plants, remote monitoring, data collection, and dispatch management of power equipment are achieved to improve the intelligence level of energy systems.

Transportation automation:Schneider 140NOM21200 Applied to airport baggage sorting systems, port automation equipment, rail transit signal control, etc., to ensure efficient communication and collaborative operations between transportation equipment.
