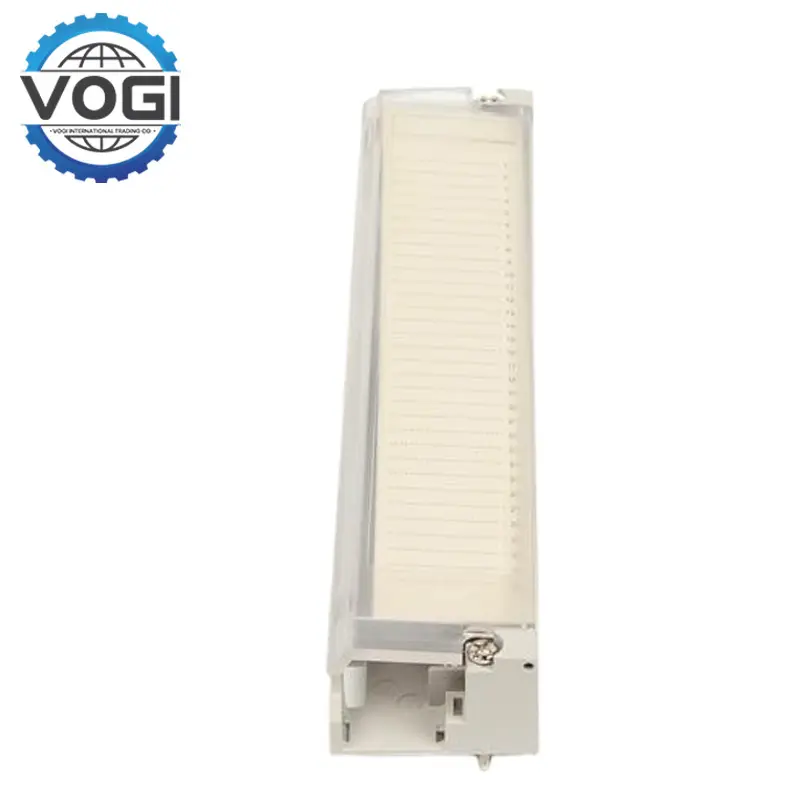

Schneider 140XTS00200 Programmable logic controller

Power input (main power): 24VDC ±15% (supports redundant power input)

Communication interface: Dual Ethernet ports (supports Modbus TCP/IP), RS-485/Modbus RTU protocol

Digital input (DI): 16 isolated dry contacts (24VDC, supports passive signals)

Digital output (DO): 8 relay outputs (contact capacity 2A/30VDC or 0.5A/250VAC)

Analog input (AI): supports expansion modules (default configuration 4 channels, 16-bit resolution, 0-10V/4-20mA)

Operating temperature: -20°C to +60°C (wide temperature industrial design)

Humidity range: 5% to 95% RH (non-condensing environment)

Protection level: IP20 (needs to be installed in the control cabinet for protection)

Equipment capacity: maximum support 128 I/O points (can be achieved through bus expansion module)

Redundancy function: Supports hot standby redundant communication (redundant module required)

Certification standards: Complies with IEC 61131-2, CE, UL 508 industrial control standards

Installation method: DIN rail installation (35mm standard rail)

Powerful Processing Capabilities: With its high clock speed and large memory capacity,  Schneider 140XTS00200 can easily perform difficult automation tasks. It is a great data control execution mechanism because it can process multiple input signals in parallel, execute advanced control algorithms, and provide accurate output signals to control industrial processes well.

Flexible Programming: Schneider 140XTS00200 supports programming languages ​​such as ladder logic, structured text, and function block diagram. Engineers and programmers have such versatility that they can choose the language that best suits their needs. This makes it possible to implement custom control programs that can be modified and updated according to changing process conditions.

Diagnostic Capabilities: Schneider 140XTS00200 includes a variety of built-in diagnostic functions that can be used to alert the system. This diagnostic module is able to continuously monitor its own operating status and automatically identify faults and abnormal conditions. If this does occur, it can diagnose the problem and reduce troubleshooting time with this informative diagnostic help, thereby reducing system downtime.

Data backup: Battery backup further protects the programs and data assigned in the module during power outages, so no data or programs are lost. This protects the integrity of the control system and provides the opportunity to resume operation without a difficult restart process after power is restored.

Modular design: The modular nature of Schneider 140XTS00200 makes it easy to integrate with existing control systems and then expand them. It can be combined with other modules in the Quantum series to develop autonomous solutions for specific industrial applications.

Industrial Automation: Schneider 140XTS00200 is commonly used in the manufacturing sector for process automation, including assembly lines, material handling systems, and machine tool control. To have efficient and reliable production operations, such as conveyor speed control, movement of robot arm, quality inspection, this parameter has to be monitored and controlled.

Automotive: Schneider 140XTS00200 is used for engine control, vehicle assembly line control, and automotive parts quality control in the automobile manufacturing plant. It will streamline product development workflows, improve product quality, and boost overall production efficiency.

Aerospace: Control systems used in the aerospace sector need ultra-high accuracy and absolute dependability. Applications include aircraft parts manufacturing, landing gear and anti-jamming system flight control, and ground support equipment systems where performance and safety are winning factors.

Food processing industry: Schneider 140XTS00200 is used to monitor and control parameters during sterilization, packaging and mixing of ingredients in the food processing industry. Food safety systems allow due diligence through process controls that monitor for maintaining food quality and safety.
