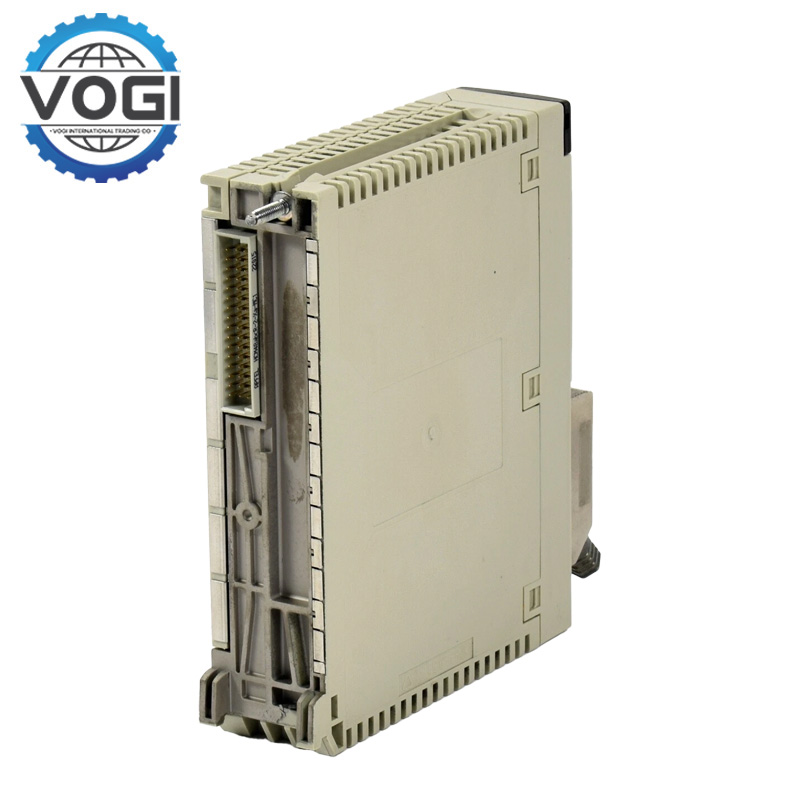

Schneider TSXP57103M Single format PL7 processor

Power input: The main power supply is 5V DC, the current consumption is 440mA, there is no backup battery configuration, and an external stable power supply is required to ensure continuous operation.

Communication interface: It has a non-isolated serial link, 2 mini DIN female interfaces, and a transmission rate of 19.2 kbit/s. It can be expanded through communication modules, supporting 1 CANopen network, 1 network module and 2 AS-interface bus modules, which is convenient for communication with various devices and systems.

Memory: The internal RAM (without PCMCIA card) is 32k words of program and data storage space; when equipped with a PCMCIA card, an additional 128k words of data storage and 64k words of program storage can be added to meet the needs of different scales of program and data storage.

I/O capacity: The discrete I/O processor capacity is up to 512 points, which can connect a large number of digital input and output devices; the analog I/O processor capacity is 24 points, which can accurately collect and control analog signals, and adapt to the needs of complex industrial scenarios for multiple signal processing.

Instruction execution: Boolean instruction execution time is 0.5µs without PCMCIA card and 0.6µs with PCMCIA card; word or fixed-point arithmetic instruction is 0.62µs without card and 0.87µs with card; floating-point operation instruction is 44µs with or without card, which can quickly process various logic and operation instructions.

Operating temperature: 0°C to 60°C.

Humidity range: 10% to 95% RH.

Protection level: IP20.

Installation method: It adopts standard module design and can be easily installed in the corresponding rack. It supports 2 12-slot racks or 4 4/6/8-slot racks, which is convenient for building control systems of different sizes.

Powerful computing and processing capabilities: flexible memory expansion, fast execution of multiple instructions, efficient processing of complex logic and computing tasks, meeting the requirements of industrial automation for real-time and accuracy.

Rich I/O resources: a large amount of discrete and analog I/O capacity, can connect many different types of equipment, meeting the needs of complex industrial systems for signal acquisition and control.

Reliable communication expansion:Schneider TSXP57103M basic communication interface combined with expandable communication module, can communicate with various types of equipment and systems.

Industrial automation production line:Schneider TSXP57103M Improve the automation level and production efficiency of production lines in industries such as automobile manufacturing and electronic equipment manufacturing.

Energy management system: Monitor and control power equipment in power substations, such as circuit breaker opening and closing, and power parameter monitoring.

Smart building: Improve building comfort, safety and energy efficiency

Transportation: Schneider TSXP57103MControl the operation of automatic ticket machines, gates, elevators, escalators and other equipment at transportation hubs to alleviate traffic congestion.
