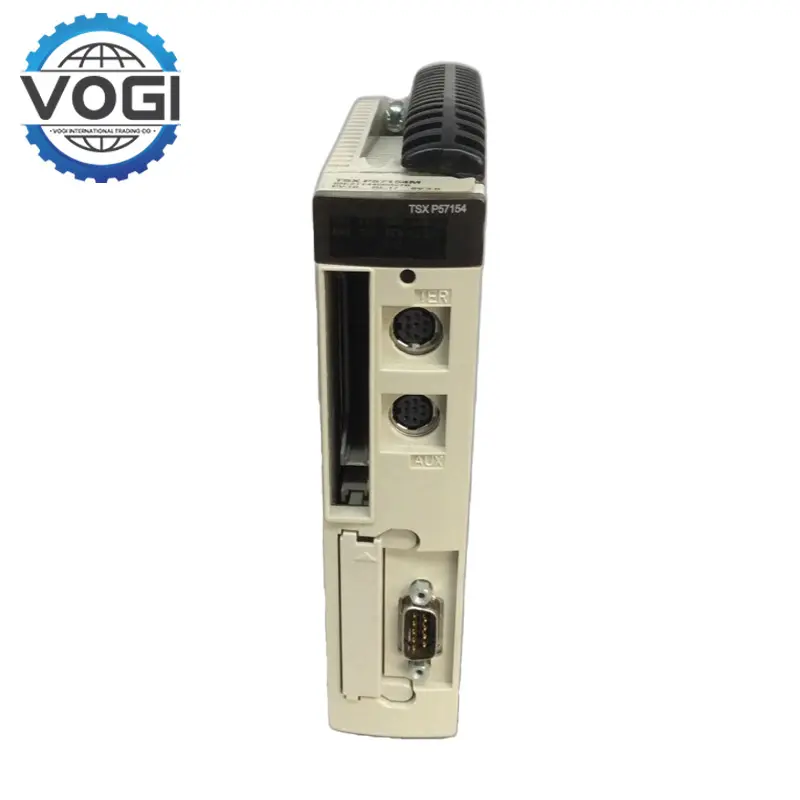

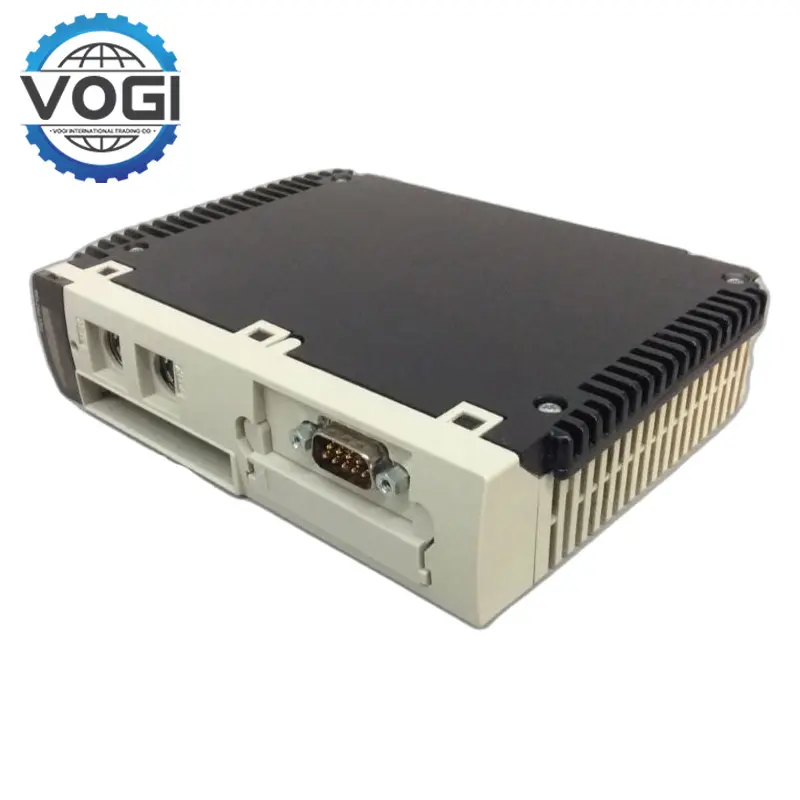

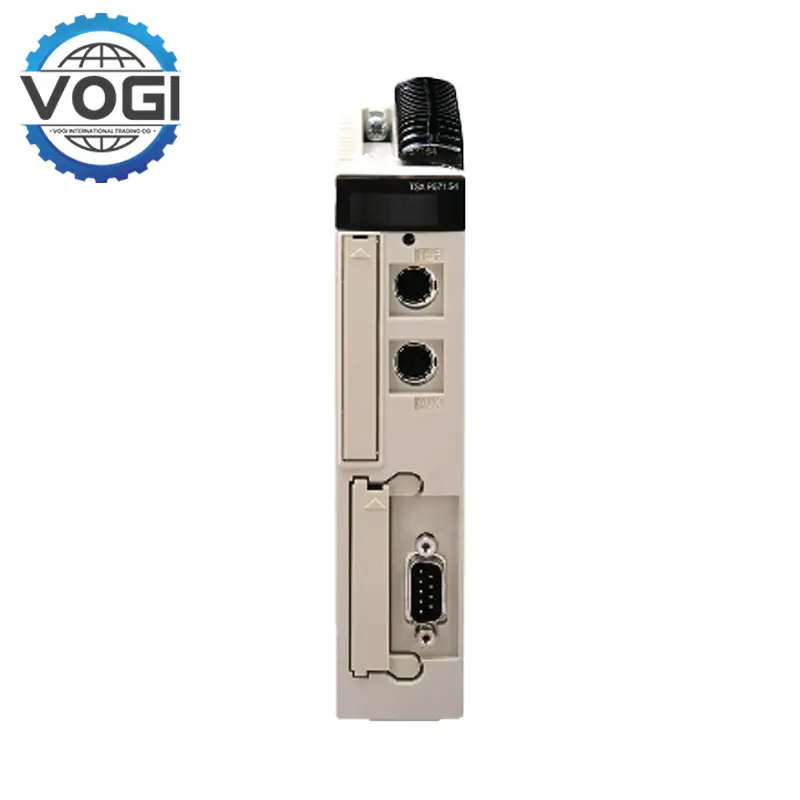

Schneider TSXP57154M Unity processor - 2 racks (12 slots)

Power input: The main power supply is 5V DC, and the current consumption is 930mA.

Communication interface: It has a non-isolated serial link, equipped with 2 mini DIN female interfaces, and the data transmission rate is stable at 19.2 kbit/s. By expanding the communication module, it can access 1 CANopen network, 1 network module and 2 AS-interface bus modules.

Memory configuration: When the PCMCIA card is not installed, the internal RAM provides 96kb of program and data storage space, which can support basic program operation and data storage. After inserting the PCMCIA card, the program storage can reach 224kb, and the data storage increases by an additional 256kb, which can flexibly respond to the memory capacity requirements of automation projects of different sizes.

I/O capacity: The discrete I/O processor capacity is up to 512 points. The analog I/O processor capacity is 24 points, which can collect and control analog signals with high precision.

Instruction execution: Boolean instructions are fast, only 0.19µs without PCMCIA card and 0.25µs with PCMCIA card, ensuring the system's response speed to real-time logic control. Word or fixed-point arithmetic instructions, 0.25µs without card and 0.5µs with card, can efficiently complete numerical calculation tasks. Floating-point operation instructions, whether with or without card, are 1.75 - 2.6µs, which can complete the calculation stably and quickly.

Operating temperature: 0°C to 60°C.

Humidity range: 10% to 95% RH

Protection level: IP20

Installation method: Standard module design, supports installation in 2 12-slot racks or 4 4/6/8-slot racks.

Excellent computing performance: The instruction execution speed is extremely fast, and all kinds of instructions can be completed in a short time.

Flexible memory expansion:Schneider TSXP57154M Users can flexibly adjust the program and data storage capacity according to the project scale and actual needs.

Rich I/O resources: A large amount of discrete and analog I/O capacity can connect many different types of devices.

Diverse communication capabilities: The basic communication interface is combined with an expandable communication module, which can flexibly communicate with various types of equipment and systems.

High-standard quality assurance:Schneider TSXP57154M Passed a number of international authoritative certifications, providing a solid guarantee for building complex automation systems.

Industrial automation production line: In the automobile manufacturing production line, the refined production of electronic products is realized and the product qualification rate is improved.

Energy management system: Intelligent control of various pumps, compressors, valves and other equipment, optimize the energy production and transportation process, improve energy utilization efficiency and reduce energy consumption.

Intelligent building:Schneider TSXP57154M Realize intelligent dimming of lighting systems in intelligent buildings.

Transportation: In transportation hubs, intelligent control of automatic ticket machines, gates, elevators, escalators and other equipment is carried out to effectively alleviate traffic congestion and improve road traffic capacity.
