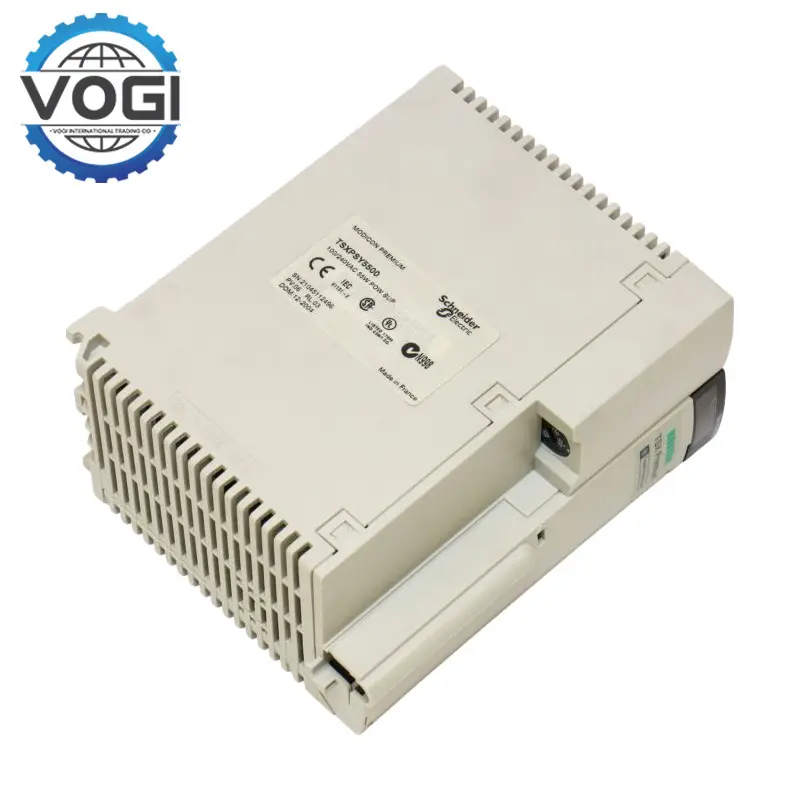

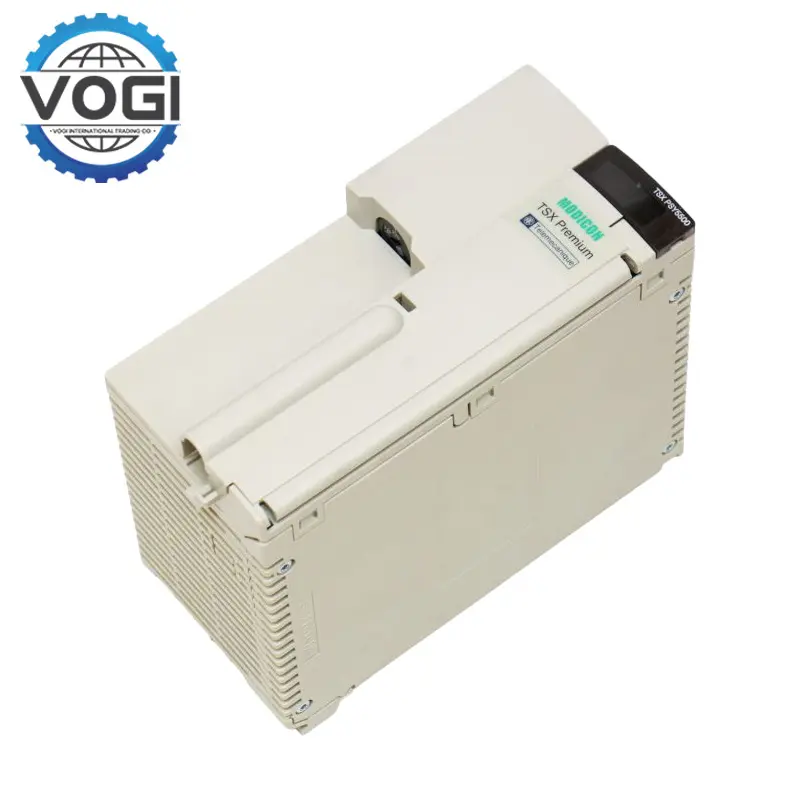

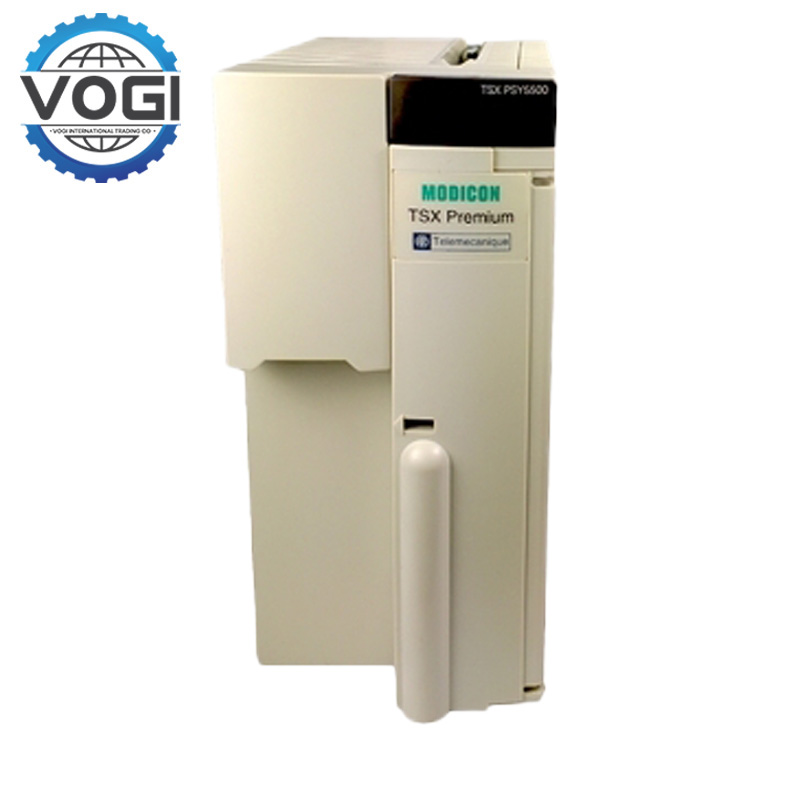

Schneider TSXPSY5500M power supply module

The main power supply supports two AC input ranges: 85 - 140V at 100 - 120V AC and 190 - 264V at 200 - 240V AC.

Network frequency: 50/60Hz, frequency limited to 47 - 63Hz.

Input current: 1700mA at 100V, 500mA at 240V.

Total useful secondary power: 50W.

Secondary power: 19W at 24V DC, 35W at 5V DC.

Current at secondary voltage: 0.8A for relay power, 0.8A for sensor power at 24V DC, 7A at 5V DC.

At 100V, the inrush current is 38A, i²t is 4A².s when activated, and it is 0.11A.s when activated.

At 240V, the inrush current is 38A, i²t is 2A².s when activated, and it is 0.11A.s when activated.

Protection function

Equipped with a 4A 5x20mm time-delay fuse for primary circuit protection.

With overload protection, overvoltage protection and short-circuit protection functions for the secondary circuit, it fully guarantees the safety of circuits and equipment.

Protection level: The protection level is IP20.

When working: the humidity range is 10% - 95% RH

When storing: the humidity range is 5% - 95% RH

1 green LED light to indicate that the sensor voltage (24V) exists.

1 green LED light to indicate that the voltage is normal (OK).

1 red LED light to indicate battery failure (BAT), which is convenient for operation and maintenance personnel to quickly determine the power status.

Insulation resistance: ≥100MΩ between primary and ground, and between primary and secondary.

Dielectric strength: 2000V between primary and ground, and between primary and secondary.

Wide input voltage range:Schneider TSXPSY5500M can work stably in industrial scenarios with different power environments around the world, and has strong versatility.

Stable and efficient output:Schneider TSXPSY5500M meets the power needs of various equipment and provides stable and reliable power supply.

Perfect protection mechanism: Fuse protection of the primary circuit and overload, overvoltage, and short circuit protection of the secondary circuit can effectively prevent the power supply and connected equipment from being damaged due to abnormal conditions, and extend the service life of the equipment.

Status visualization: Through different color LED indicators, operation and maintenance personnel can intuitively understand the working status of the power supply, which is convenient for timely discovery and resolution of problems and reduces equipment downtime.

Industrial automation production line:Schneider TSXPSY5500M Provides stable power for various equipment on the production line.

Smart factory system: Helps achieve intelligent management and optimization of the production process in the automated warehousing, logistics transportation, production monitoring and other links of the smart factory.

Energy management system: Applicable to energy management systems in power substations, petrochemicals and other industries.

Smart building: Power control modules for lighting systems, air conditioning systems, security systems, elevator control systems, etc. in smart buildings.
