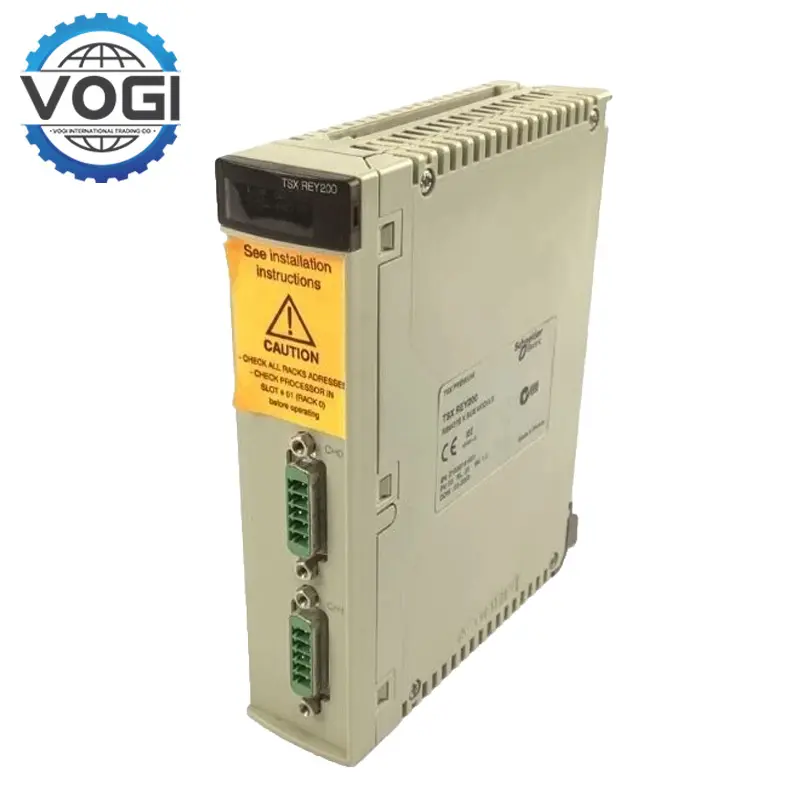

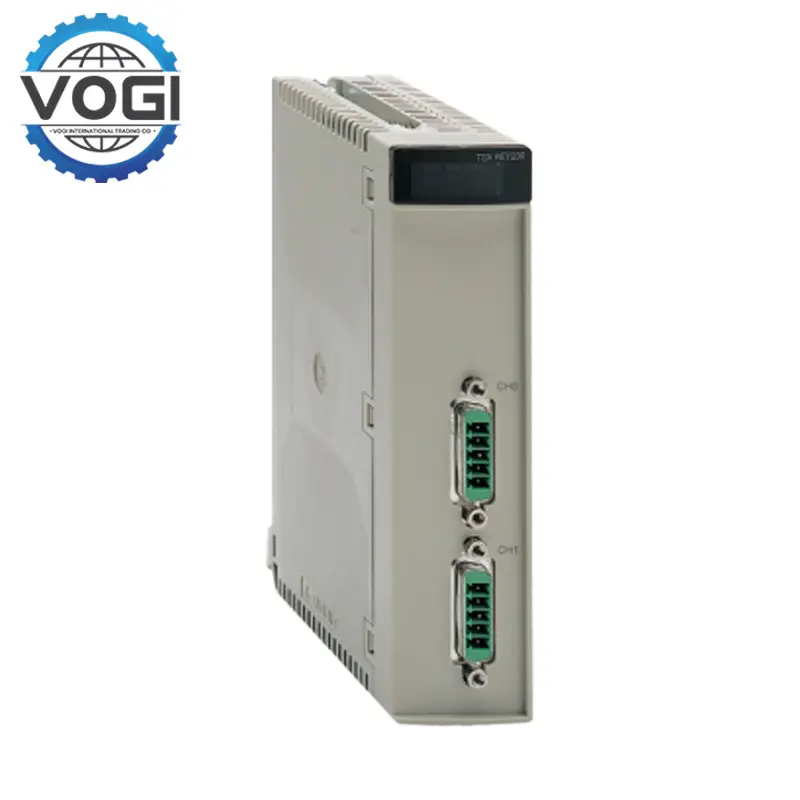

Schneider TSXREY200 bus X remote rackmaster module

Power input: The working power supply is 5V DC, the current consumption is 500mA, and an external stable 5V DC power supply is required.

Communication interface: Equipped with 2 SUB-D 9 connector interfaces, used to connect channel 1 and related external devices, and support remote I/O communication connection.

Operation indication: There are multiple LED indicators, including channel 0 operation (CH0) and channel 1 operation (CH1) indicators, which are used to intuitively display the working status of the corresponding channels; external fault (I/O) LED indicators can promptly prompt input and output related faults in the system, which is convenient for locating and troubleshooting problems; module LED indicators acting as master or slave (MS) can clearly show the role status of the module in the system; module operation (R) LED indicator is used to indicate the overall operation status of the module.

Module function: As a bus X remote rack master module, it supports master/slave access methods. It can be used as a master module in an automation control system to connect multiple slave modules to build a distributed I/O architecture.

Connectivity: This module can be used to connect remote BUS X segments, and its channels can be placed remotely up to 250m. When using a remote BUS X master rack module, the distance between racks can be increased to a maximum of 350m without affecting the performance of reading or controlling I/O.

Applicable racks: When used with Premium PLC's BUS X, it can connect eight 12-position racks or sixteen 4, 6 or 8-position racks to meet the needs of automation projects of different sizes. In small automation systems, racks with fewer slots can be selected to reduce costs; in large and complex systems, the system scale can be expanded by connecting multiple 12-position racks to improve the control capability of the system.

Protection level: The protection level is IP20

Long-distance communication:Schneider TSXREY200 supports remote rack connection up to 350m, greatly expanding the control range of the automation system.

Flexible connection method:Schneider TSXREY200 can connect racks of various specifications, and can flexibly build the system according to the project scale and actual needs.

Efficient data interaction:Schneider TSXREY200 through specific communication interfaces and protocols, stable and fast data interaction with external devices can be achieved.

Status visualization: rich LED indicator design makes the module operation status, communication channel status, fault status, etc. clear at a glance.

Industrial automation production line:Schneider TSXREY200 collect data in real time and control equipment actions by remotely connecting to the I/O ports of various testing equipment and automated assembly equipment.

Smart factory: a distributed control system used to build smart factories.

Energy management system: in power substations, connect monitoring equipment and control devices distributed in different locations to improve energy efficiency.

Municipal engineering:Schneider TSXREY200 realize automated control and remote monitoring of the entire tap water production process in water plants to ensure stable water supply and safe water quality.
