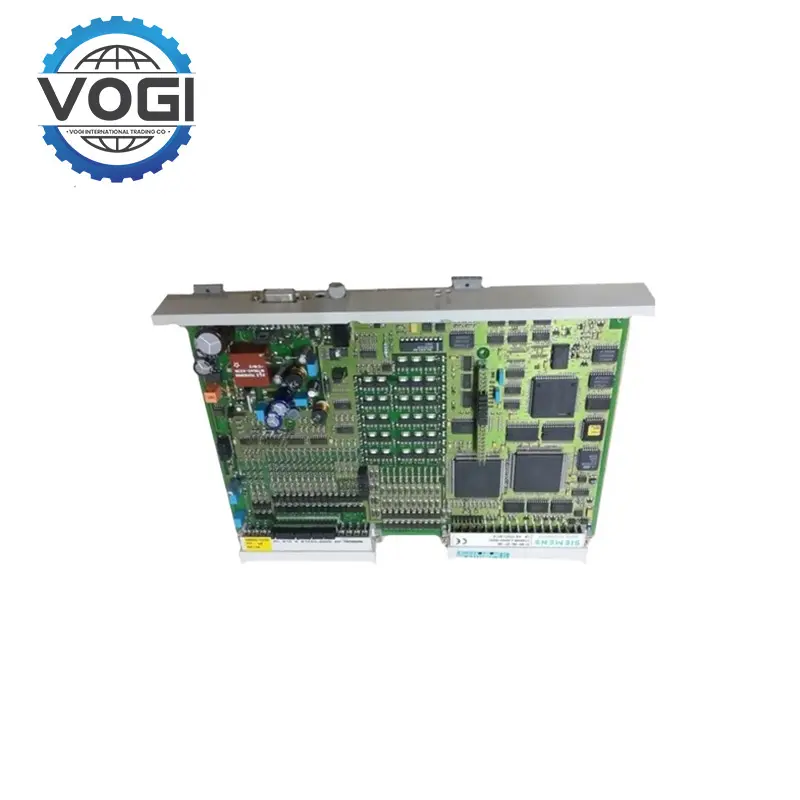

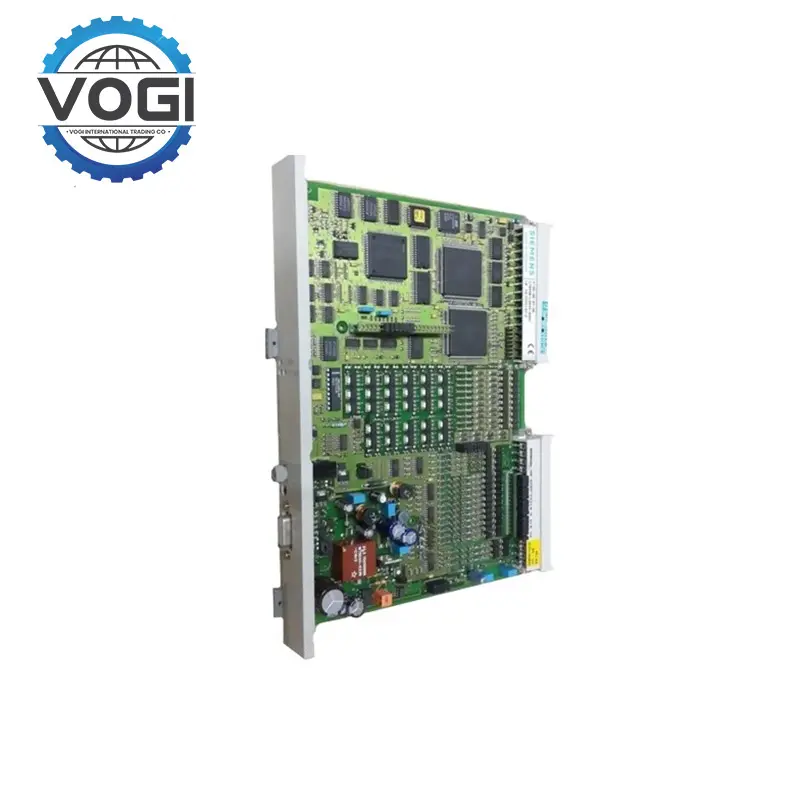

Siemens 6DS1723-8RU Signal Control Module

DescriptionVogi

Siemens 6DS1723-8RU features PROFINET interface for seamless integration into PLC or DCS architectures and fast, reliable signal acquisition even in the most demanding industrial environments. Its small design, high channel density, and high-level diagnostics make it a key building block for improved production efficiency and system reliability

Key SpecificationsVogi

1.Input Configuration
 16 digital input channels supporting 24V DC industrial voltage standards.
 Input Types: Compatible with both sourcing (PNP) and sinking (NPN) sensors, including mechanical contacts, proximity switches, and photoelectric sensors.
 Voltage Range: 0–30V DC with overvoltage protection up to ±35V.
2.Electrical Performance
 Response Time: ≤1 ms (typical), ensuring rapid signal processing for real-time control.
 Isolation: 500V AC isolation between channels and backplane to eliminate cross-interference.
3.Environmental Resilience
 Operating Temperature: -20°C to +60°C, suitable for harsh industrial conditions.
 Protection Rating: IP20 (module); requires enclosure for higher protection.
 Vibration/Shock Resistance: Compliant with IEC 60068-2-6/2-27 standards.
4.Communication & Power Supply
 Protocol: PROFINET RT with support for Media Redundancy Protocol (MRP).
 Power Supply: 24V DC via system or external power source.

Key FeaturesVogi

1.Modular and Space-Saving Design
 Single-Wire Connection (Push-in terminals): Reduces wiring effort and saves control cabinet space.
 Hot-Swappable: Modules can be replaced during operation, minimizing downtime.
2.Advanced Diagnostics
 Real-Time Monitoring: Detects faults such as wire breaks, short circuits, or overloads. Each channel features an LED status indicator for quick troubleshooting.
 Event Logging: Records fault data and operating hours for predictive maintenance.
3.Seamless Integration
 TIA Portal Compatibility: Fully configurable via Siemens’ Totally Integrated Automation (TIA) Portal software, enabling quick parameterization and firmware updates.
 Multi-Platform Support: Compatible with SIMATIC controllers (e.g., S7-1200/1500) and third-party PROFINET master devices.
4.Energy Efficiency and Safety
 Low Power Consumption: ≤1.5W per module, reducing overall system energy costs.
 Certifications: CE, UL, cULus, and compliance with IEC 61131-2 standards.

Freight Estimation(Part Of The Area)Vogi

Application ScopeVogi

1.Industrial Automation
 Machine Tools & Assembly Lines: Machine Tools & Assembly Lines Monitors limit switches, emergency stop buttons, safety interlocks
 Example: Detecting position signals in automotive welding robots to ensure precision.
2.Process Control & Energy Management
 Motor/Pump Control: Tracks start/stop signals and fault alerts for pumps, valves, or compressors.
 Example: Monitoring alarm signals in water treatment plants or HVAC systems.
3.Logistics & Warehousing
 Material Handling Systems: Processes signal from the photoelectric sensor in the sorting machine or stacker crane.
 Example: Detecting pallet positions in automated warehouses to prevent collisions.
4.Heavy Industry & Infrastructure
 Safety-Critical Systems: Initiates emergency shutdowns in steel mills, mining conveyors, or power plants
 Example: Switchgear monitoring in rail transit systems for operational security.
