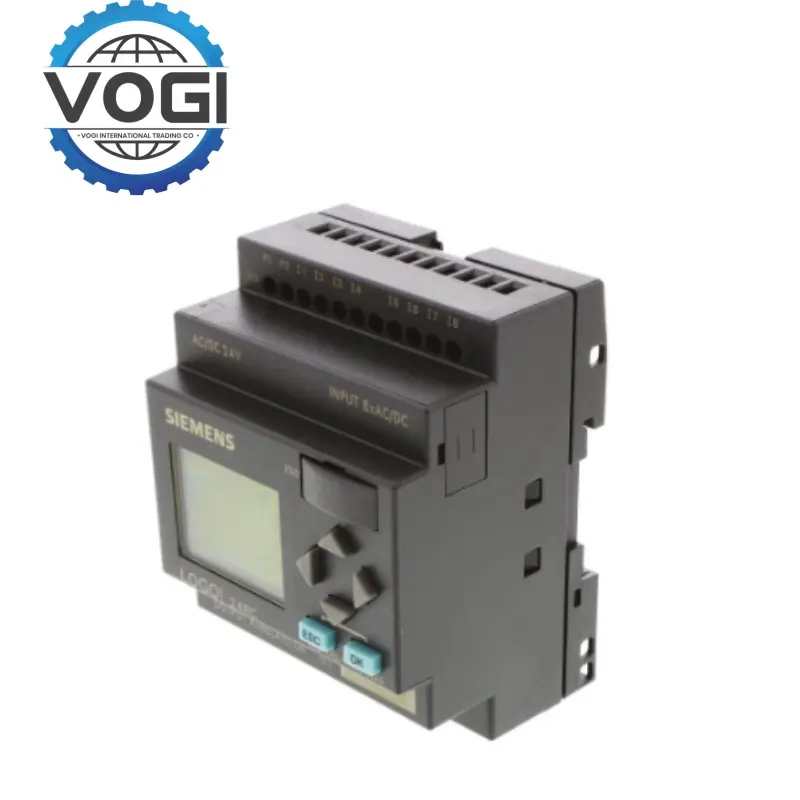

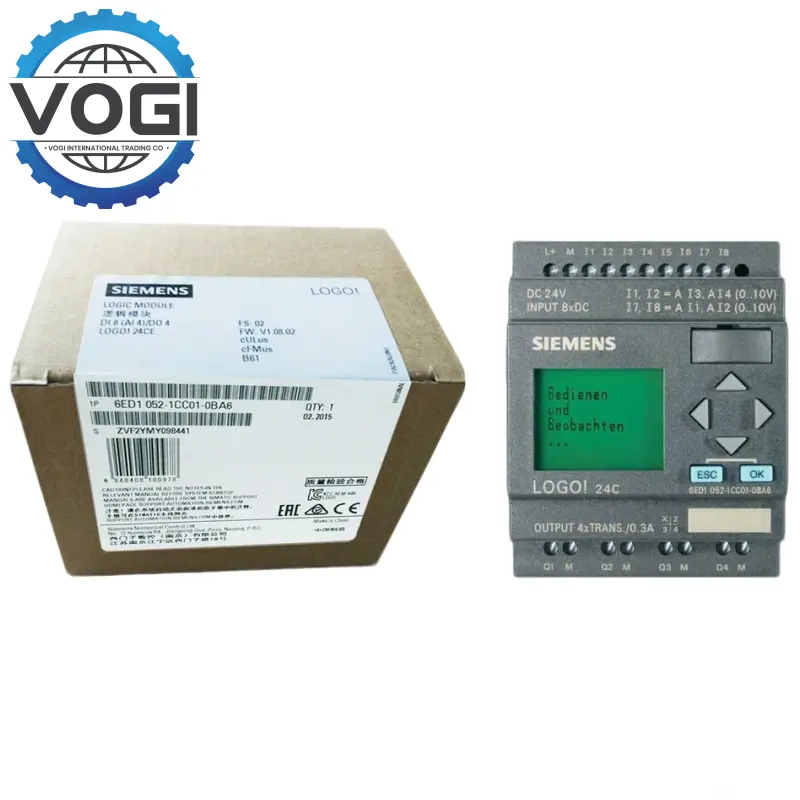

Siemens 6ED1052-1CC01-0BA6 Digital Output Module
Key SpecificationsVOGI
Input and output: 8 digital inputs; 4 digital outputs
Expansion capability: Up to 24 expansion modules can be connected via the bus, supporting 8 analog inputs and 2 analog outputs.
Communication interface:
Ethernet: supports TCP/IP protocol, can be connected to PC or touch screen
Serial port: RS485 interface, supports Modbus RTU protocol (needs to be implemented through expansion modules).
24V DC power supply, power consumption is about 3W.
Transmitter power supply: 24V DC (maximum 260mA) is provided for each channel, supporting 2-wire sensors.
Protection level: IP20 (indoor dustproof), can be upgraded to IP65 through an external protective shell.
Working environment
Temperature range: operating temperature 0°C to + 55°C, storage temperature - 25°C to + 70°C.
Humidity: 5% to 95% (non-condensing), suitable for industrial environment.
Key FeaturesVOGI
1. Functional integration: Siemens 6ED1052-1CC01-0BA6 has 200 built-in function blocks, supports user-defined macros, and can quickly implement complex logic control.
Expansion capability: Siemens 6ED1052-1CC01-0BA6 can add analog channels or digital interfaces through expansion modules to meet diverse needs.
2. Ease of use and visualization
Graphical programming: Siemens 6ED1052-1CC01-0BA6 uses LOGO! Soft Comfort software for ladder diagram or function block programming, supporting offline simulation and online debugging.
Integrated display: 4-line 16-character backlit display, which can monitor input and output status, display alarm information and parameter adjustment in real time.
Web server: Access the built-in web page through Ethernet to achieve remote monitoring and parameter modification
3. Reliability and anti-interference
Diagnostic function: Real-time monitoring of power supply voltage, channel status and communication link, and output of fault codes through LED indicators and bus.
Anti-interference design: Input channels are optically isolated (500V AC) and support industrial-grade electromagnetic compatibility (EMC) standards.
4. Industry compliance
Certification: CE certification, RoHS compliant, UL/cUL certification supported
Explosion-proof extension: Siemens 6ED1052-1CC01-0BA6 needs to be paired with a dedicated explosion-proof module, suitable for ATEX Zone 21/22 dust explosion-proof areas.
Freight Estimation(Part Of The Area)VOGI
Destination |
Freight |
Middle East |
$35 |
Southeast Asia |
$23 |
South Asia |
$45 |
South Africa |
$37 |
Europe and USA |
$24 |
Russia |
$41 |
APPLICATIONVOGI
1.Equipment Control: Replace traditional relays to realize motor start and stop, valve control, conveyor belt logic, etc., such as photoelectric detection and inkjet printer linkage in wine bottle sorting line.
Process Monitoring: Monitor temperature, pressure, and liquid level through analog input, and combine PID control to realize constant pressure water supply, fermentation tank temperature adjustment, etc.
2. Building Automation
Lighting Control: Support weekly timer, random switch and other functions to realize energy-saving lighting management
HVAC System: Monitor the temperature and humidity of air-conditioning units, control fans and regulating valves, and optimize energy consumption.
3. Water Treatment and Environmental Protection
Sewage Treatment: Monitor dissolved oxygen in aeration tanks, control the start and stop of pump groups, and realize automatic dosing and water quality adjustment.
Irrigation System: Automatically start and stop irrigation equipment according to soil moisture sensor signals, and support multi-period timing control.
4. Food, Beverage and Packaging
Filling Line: Detect bottle position, control filling head action, realize empty bottle rejection and abnormal liquid level alarm.
Warehousing Logistics: Manage shelf inventory through photoelectric switches and counters to optimize sorting processes.
