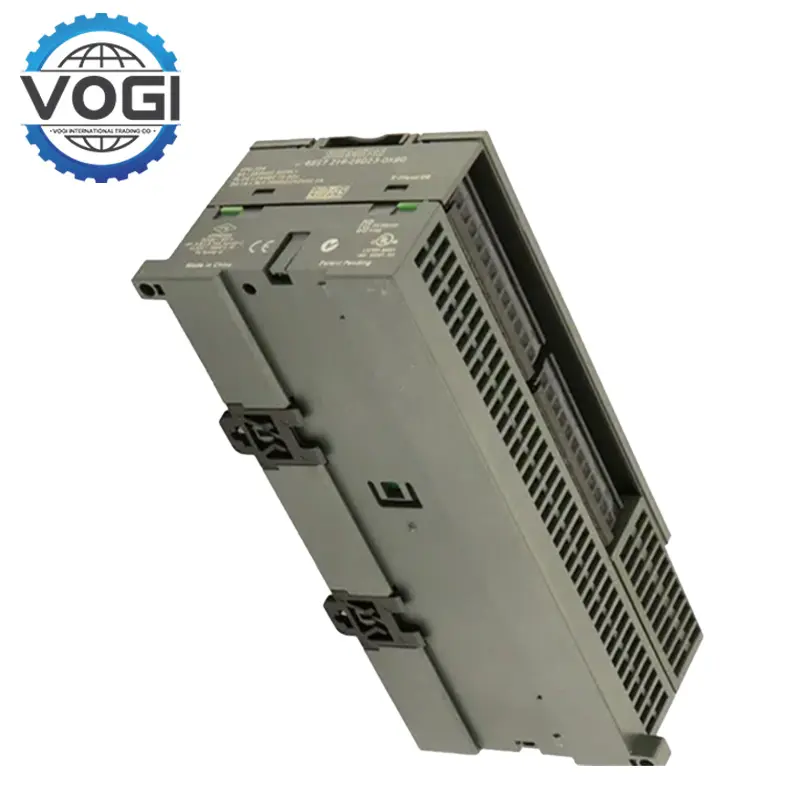

Siemens 6ES7216-2BD23-0XB8 Module Compact Unit

Digital I/O Capacity: Integrated 24 inputs and 16 outputs (40 total digital points), expandable up to 248 digital I/O or 35 analog I/O via 7 extension modules.

Processing Power: 13 KB of program and data storage, supporting real-time control and multitasking.

Communication: Dual RS485 ports with PPI, MPI, and free-port protocols for seamless integration with HMIs, sensors, and SCADA systems.

Power Supply: Operates on 24V DC with a tolerance of ±15%, delivering 280–400 mA for external loads.

Expandable I/O Architecture: The Siemens 6ES7216-2BD23-0XB8 supports up to 248 digital or 35 analog I/O points via 7 expansion modules (e.g., EM221 or EM223), enabling flexible system scaling for tasks like conveyor belt synchronization or pump station monitoring. Its integrated 24V DC sensor power supply simplifies wiring for field devices such as proximity switches or flowmeters.

High-Speed Motion Control: With 6 independent 30kHz counters and 2 pulse outputs (20kHz), this PLC excels in precision tasks like packaging machinery or robotic arm positioning. The Siemens 6ES7216-2BD23-0XB8 also supports PID control for real-time adjustments in temperature-sensitive processes like chemical mixing.

Robust Data Retention: The Siemens 6ES7216-2BD23-0XB8 uses a super capacitor for 5-day data backup and supports optional battery modules (up to 200 days), ensuring uninterrupted operation in critical applications like water treatment plants or energy grids.

HVAC System Control: In large commercial buildings, the Siemens 6ES7216-2BD23-0XB8 manages temperature and airflow regulation by integrating sensors and actuators. Its dual RS485 ports enable real-time communication with energy meters and SCADA systems, optimizing energy efficiency while maintaining compliance with safety standards37.

Material Handling Automation: For warehouse conveyor systems, this PLC coordinates motor speed and sorting mechanisms using its 20 kHz pulse outputs and PID control. The Siemens 6ES7216-2BD23-0XB8 ensures precise positioning of goods, reducing downtime through modular expansion and quick troubleshooting via diagnostic LEDs.
