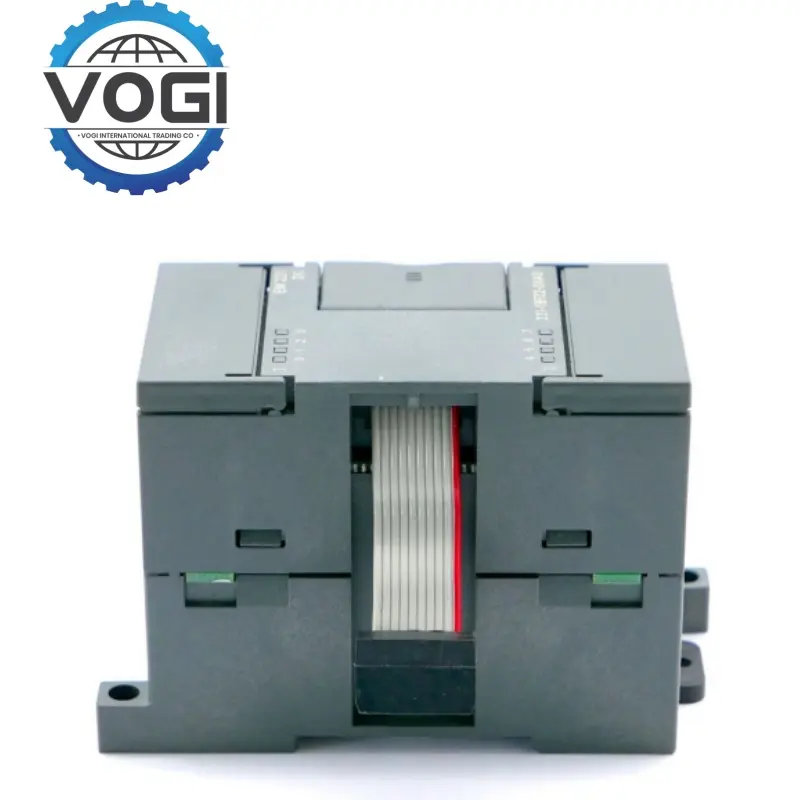

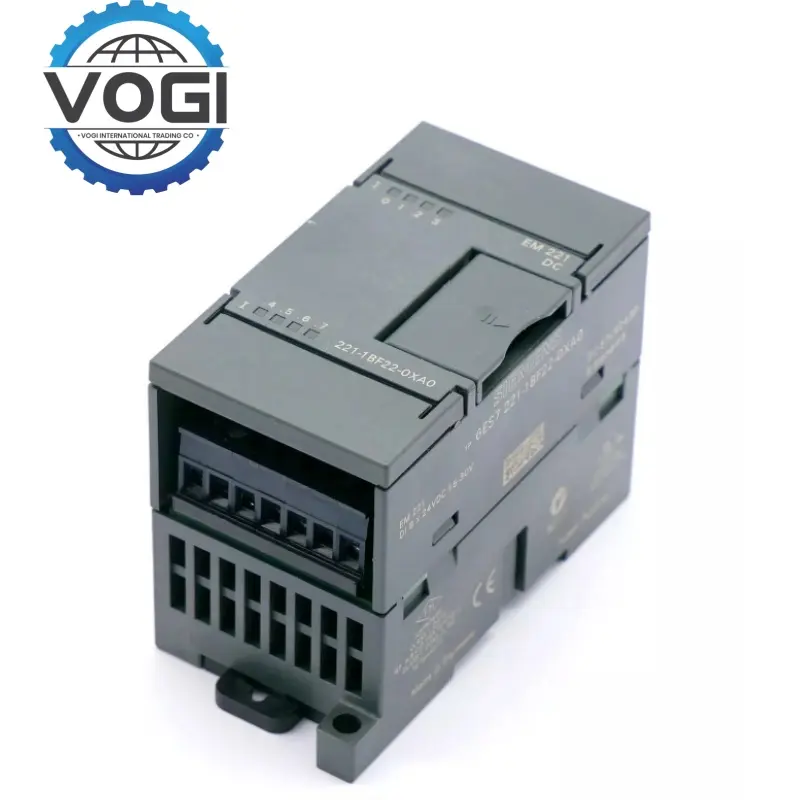

Siemens 6ES7221-1BF22-0XA0 Digital Iutput Module

Input type: 8-channel DC input (24V DC), supports sink (NPN) and source (PNP) signals, select input type through jumper.

Signal specifications:

Logic "1": 15-30V DC (minimum input current 4mA).

Logic "0": 0-5V DC.

Response time: typical value 10ms (configurable to 0.2-25ms through software).

Isolation characteristics: Channels and backplane bus are isolated by optocouplers (500V AC), with strong anti-electromagnetic interference ability.

Backplane bus power supply: 5V DC, power consumption is about 2W.

Signal power supply: 24V DC needs to be provided externally

Expansion method: connected through the RS485 interface of S7-200 CPU, supports PPI, MPI protocols, and can be expanded to 7 modules.

Data transmission: Input signals are transmitted to CPU in real time through the backplane bus without additional communication delay.

1. Photoelectric isolation: Optocoupler isolation (500V AC) is used between channels and backplane bus to effectively suppress electromagnetic interference (EMI) in industrial environments.

Diagnostic function:

LED indicator: Each channel is equipped with an independent LED to display the input status

Fault detection: Siemens 6ES7221-1BF22-0XA0 supports disconnection detection, but no built-in electronic fuse.

Wide voltage range: The input signal supports 15-30V DC and is compatible with different types of sensors

2. Flexibility and scalability

Modular design: Siemens 6ES7221-1BF22-0XA0 can be directly expanded with S7-200 series CPU and supports mixed I/O configuration

Input type adaptation: Switch between drain/source inputs through jumpers without additional hardware modification.

Programming compatibility: Supports ladder diagram (LAD), function block diagram (FBD) and statement list (STL) programming, and seamlessly integrates with STEP 7-Micro/WIN software.

3. Industry compliance

Certification: CE certification, Siemens 6ES7221-1BF22-0XA0 complies with the RoHS directive, and some models support UL/cUL certification

Explosion-proof expansion: Siemens 6ES7221-1BF22-0XA0 needs to be equipped with a dedicated explosion-proof module and is suitable for ATEX Zone 21/22 dust explosion-proof areas.

1. Equipment status monitoring: Collect motor operating status, valve position, conveyor belt photoelectric signals, etc. to realize equipment start and stop logic control.

Safety interlock: Connect emergency stop buttons, safety light curtains, etc. to ensure the safety of the production process

Typical case: In a certain automobile production line, the EM221 module detects the arrival signal of the welding robot and controls the action of the fixture, reducing the failure rate by 40%.

2. Process control

Liquid level/temperature alarm: Monitor the high and low liquid level switches of the storage tank and the contact signals of the temperature sensor, trigger the sound and light alarm or start and stop of the pump group.

Packaging machinery: Detect signals such as packaging material arrival and box sealing completion, and control the collaborative operation of the labeling machine and inkjet printer.

Typical case: In a filling line of a food factory, the EM221 module cooperates with the counter to realize the automation of empty bottle rejection and full bottle delivery.

3. Building automation

Lighting management: Control the lighting circuit through buttons and infrared sensors, and support time-sharing and partition control

HVAC system: Monitor the operating status of the air-conditioning unit, and link the regulating valve and alarm.

Typical case: An office building connects to the access control system through the EM221 module to achieve elevator floor authority control and fire channel status monitoring.

4. Water treatment and environmental protection

Sewage treatment: Detect aeration tank liquid level, water pump overload signal, control dosing system and sludge return pump.

Irrigation system: Automatically start and stop irrigation equipment through soil moisture sensor signal, support multi-period timing control.

Typical case: A sewage treatment plant uses the EM221 module to monitor the grid blockage status, automatically start the sewage cleaning equipment, and improve maintenance efficiency by 30%
