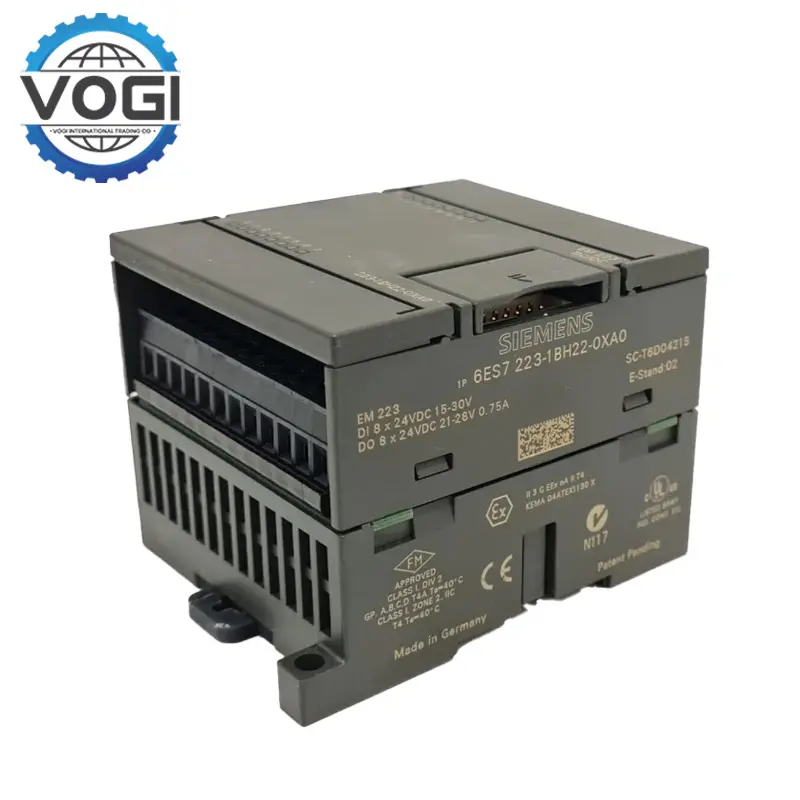

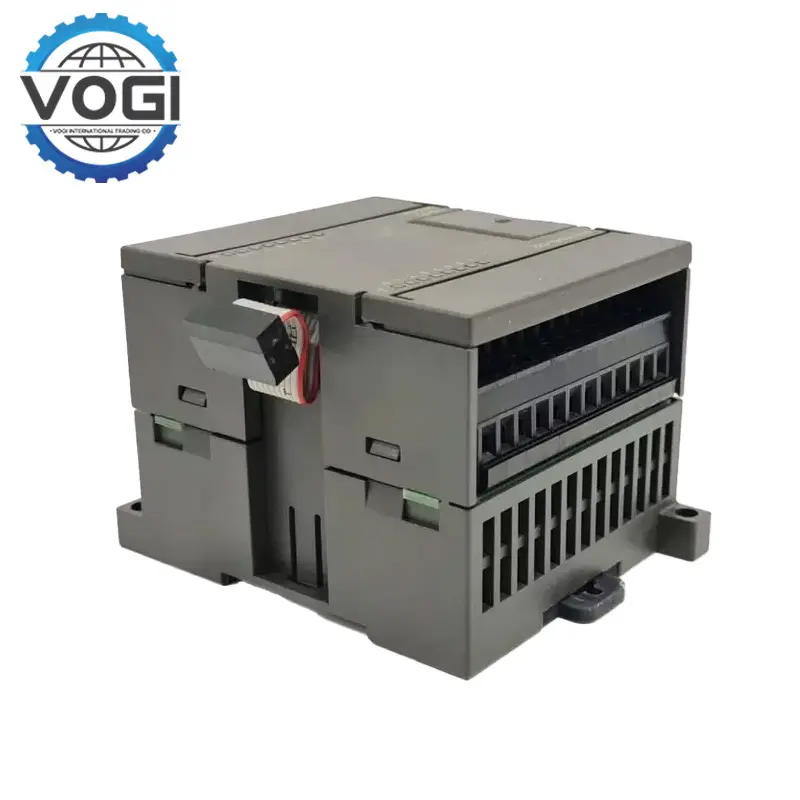

Siemens 6ES7223-1BH22-0XA0 Digital I/O EM 223
Key SpecificationsVOGI
Input Characteristics:
Input Type: Digital, 24V DC.
Number of Input Points: 8.
Input Delay (Max): 4.5ms.
Isolation Test for Contact: 500V AC, 1 min.
Power Consumption:
From +5V DC Backplane Bus: 80mA.
Power Loss: 3W.
Output Characteristics:
Voltage Range: 20.4 - 28.8V DC.
Rated Current per Channel: 0.75A.
Lamp Load: 5W.
Isolation: Optocoupler.
Key FeaturesVOGI
High-speed response and processing capability: Siemens 6ES7223-1BH22-0XA0 supports millisecond switching speed, suitable for pulse control (such as stepper motor drive) and high-speed counting (up to 10kHz), which is significantly better than traditional output modules. The input channel supports hardware interrupt and pulse capture functions, and can respond to external signal changes in real time.
Digital output function: Siemens 6ES7223-1BH22-0XA0 has 8 24V DC digital output channels, each of which can provide 0.75A pull current. It can directly drive some small load devices, such as relays, contactors, indicator lights, etc. According to the control logic of the PLC, the digital signal is converted into an electrical signal that can be received by the external device to achieve control of the external device, such as controlling the start and stop of the motor, the switch of the valve, etc.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$34 |
|
Southeast Asia |
$15 |
|
South Asia |
$44 |
|
South Africa |
$36 |
|
Europe and USA |
$24 |
|
Russia |
$41 |
APPLICATIONVOGI
Smart home control: In the smart home system, Siemens 6ES7223-1BH22-0XA0 can be used to control lights, curtains, door locks and other equipment. By connecting to the smart home controller, the human body sensing signal, door and window switch signal, etc. collected by the sensor are input into the module, and then the signal is output according to the preset control logic to achieve intelligent control of home appliances, providing users with a convenient and comfortable living environment.
Small process control: In water treatment or food processing, manage liquid level switches, pump valve control, and realize flow accumulation or speed monitoring through high-speed counting function.
Mechanical equipment control: Siemens 6ES7223-1BH22-0XA0 can collect the operating status signals of the equipment, such as limit switch signals, sensor signals, etc., and output control signals according to the control logic to achieve precise control of mechanical equipment and ensure the normal operation of the equipment.
