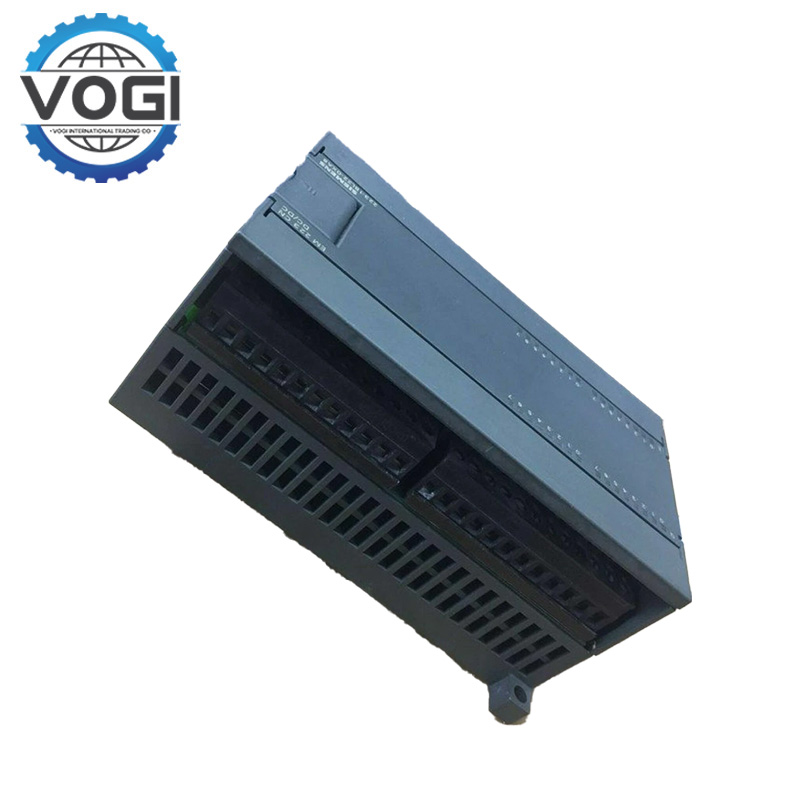

Siemens 6ES7223-1PL22-0XA8 Digital I/O EM 223
Key SpecificationsVOGI
Output Channels: 16 channels (24V DC).
Output Type: Transistor (sourcing).
Voltage Range: 20–30V DC.
Current per Channel: ≤0.5A (max).
Isolation:
500V AC (channel-to-backplane).
75V AC (channel-to-channel).
Response Time: ≤0.1 ms (switching delay).
Power Consumption: ≤5W.
Connection: Screw terminals (front connector).
Operating Temperature: 0°C to +60°C.
Key FeaturesVOGI
Isolation Pumping: Siemens 6ES7223-1PL22-0XA8 adopts isolated photoelectric technology.The isolation voltage of 1500V AC, effectively suppresses Electromagnetic interference (EMI) and the ground loop noise, so as to ensure the stability of the signal transmission.
Interrupt trigger: The input channel supports rising/falling edge hardware interrupts, and the response delay is less than 50μs. It can be used in scenarios that require fast response, such as emergency stop signals and safety door monitoring.
Digital input and output part type combination: Siemens 6ES7223-1PL22-0XA8 has 8 digital input points& 8 Digital output points. This configuration can cover the I/O requirements for many small and medium-sized automation projects. These input and output points can be flexibly adapted to real-life conditions to connect with various sensors, actuators and other equipment, achieving precise control of industrial production processes.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$42 |
|
Southeast Asia |
$15 |
|
South Asia |
$55 |
|
South Africa |
$47 |
|
Europe and USA |
$27 |
|
Russia |
$50 |
APPLICATIONVOGI
Parking lot management: Siemens 6ES7223-1PL22-0XA8 collects parking space geomagnetic sensor signals, drive LED display screens and gate switches, and support vehicle flow statistics and billing logic.
Building lighting: Automatically adjust the lighting circuit according to the input of the photosensitive sensor, control the relay module through the DO channel, and realize regional energy-saving management.
Packaging equipment: Siemens 6ES7223-1PL22-0XA8 controls photoelectric sensors (detect material in place) and solenoid valves (drive cylinder sorting), and achieve precise timing control through high-speed output.
Photovoltaic inverter monitoring: detect circuit breaker status and fault signals, control the start and stop of cooling fans, and ensure stable operation of equipment in high temperature environment.
Water pump station control: Link multiple water pumps through liquid level switch input to achieve redundant switching and energy consumption optimization.
Injection molding machine: Siemens 6ES7223-1PL22-0XA8 manages temperature switches and pressure sensor inputs, link hydraulic valve outputs, and ensure the stability of the molding cycle.
