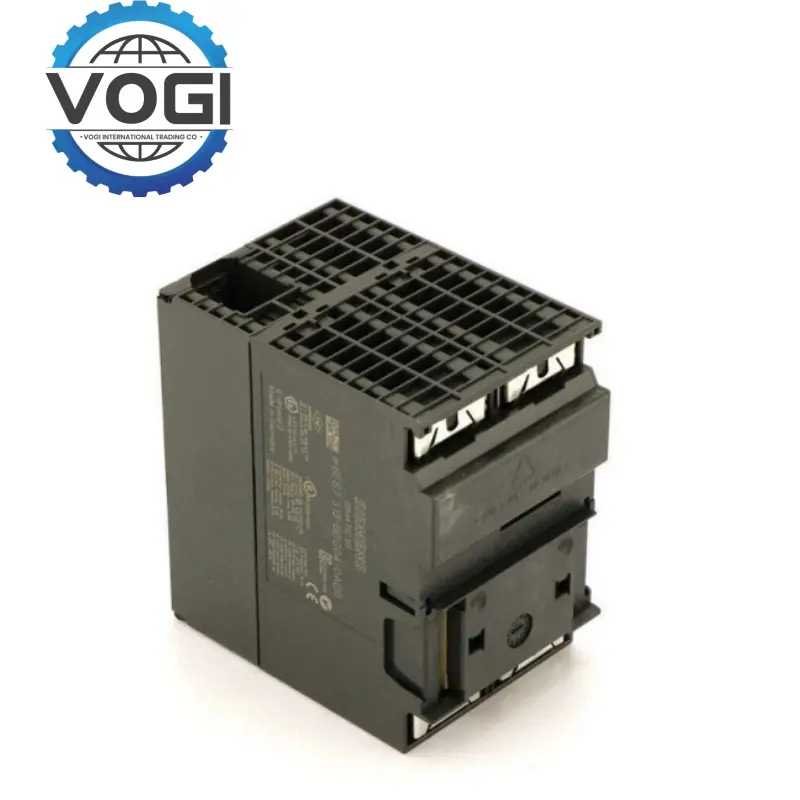

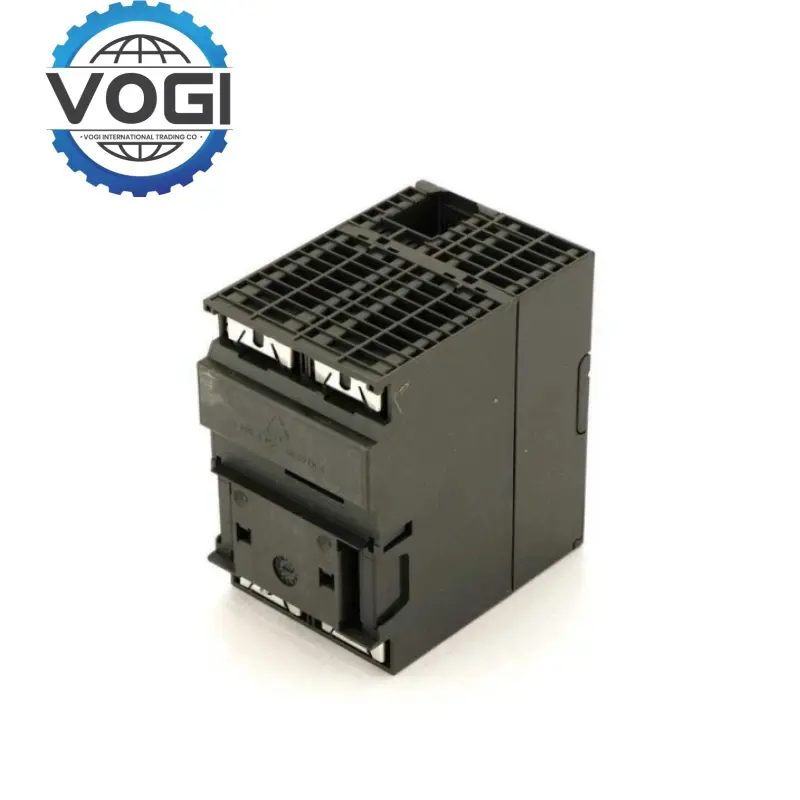

Siemens 6ES7313-6BG04-0AB0 Compact CPU

Processor: 32-bit CPU, binary instruction processing speed 70ns, support real-time control and fast logic operation.

Memory: 128KB working memory (program storage), MMC card expansion is required (maximum 8MB), support battery-free data storage.

Power supply: 24V DC power supply (voltage range 19.2V~28.8V), power consumption is about 5W, with 5ms power failure cross-connection protection.

2. Communication interface

Integrated interface: 1 MPI interface (rate 187.5kbps, support 8 connections), 1 RS485 interface (support PPI protocol).

Expansion capability: can be upgraded to PROFIBUS-DP or Ethernet communication through CP module (additional hardware required).

3. I/O configuration

Digital quantity: 16 input points (24V DC) + 16 transistor output points (24V DC, 0.5A/point), support direct connection of switches, relays and other devices.

High-speed counters: 3 (up to 30kHz), support frequency measurement and position counting, and adapt to dynamic signal monitoring.

4. Physical characteristics

Dimensions: weight 0.543kg, protection level IP20 (indoor use).

Operating temperature: 0°C~60°C (horizontal installation)/0°C~40°C (vertical installation).

5. Expansion capability

Up to 8 local modules can be expanded to support flexible configuration of small and medium-sized systems.

Siemens 6ES7313-6BG04-0AB0 has built-in 16DI/16DO and 3 high-speed counters, which reduces the number of external modules, simplifies the system architecture, and is suitable for quickly building small control systems.

Integrated RS485 interface supports direct communication with third-party devices such as printers and barcode scanners without the need for additional conversion modules.

2. Real-time control capability

70ns instruction cycle and 30kHz high-speed counter meet the requirements of packaging machinery, logistics sorting equipment and other scenarios with high dynamic response requirements.

Siemens 6ES7313-6BG04-0AB0 supports hardware interrupts and can quickly process emergency signals.

3. Flexible communication protocol

MPI interface supports communication with S7-300/400 PLC, programming device and HMI, RS485 interface is compatible with PPI protocol, and is compatible with Siemens touch screen and third-party serial port devices.

PROFIBUS-DP or Ethernet can be expanded through CP module to meet complex network requirements.

4. Industrial-grade reliability

Wide voltage input, diagnostic LED displays faults in real time, diagnostic buffer records 500 events, adapts to dusty and vibrating environments.

Supports redundant power input (external redundant module required) to improve system stability.

5. Programming compatibility

Siemens 6ES7313-6BG04-0AB0 supports STEP 7 V5.5 programming, compatible with LAD/FBD/STL languages, seamlessly connects to existing S7-300 projects, and lowers the development threshold.

1. Small and medium-sized automation equipment

Packaging machinery: logical control of labeling machines and filling machines

Simple machine tools: spindle start and stop, tool positioning

Injection molding machines: mold switching, pressure regulation.

2. Logistics and material handling

Sorting system: conveyor start and stop logic, cargo position detection.

Elevator control: upper and lower limit protection and speed regulation based on position signals.

3. Process monitoring

Food processing: temperature and humidity monitoring (external analog module required), sterilization equipment start and stop control.

Water treatment: water pump start and stop and liquid level alarm for small pumping stations (digital I/O to achieve switch control).

4. Energy and infrastructure

Distribution room: equipment status monitoring.

Heating, ventilation and air conditioning (HVAC): local temperature and humidity adjustment (analog module needs to be expanded to achieve closed-loop control).

5. Special equipment

Printing machinery: tension adjustment (external analog module required), color mark detection (high-speed counter synchronization signal).

Environmental protection equipment: sensor signal acquisition and actuator control of exhaust gas treatment devices.
