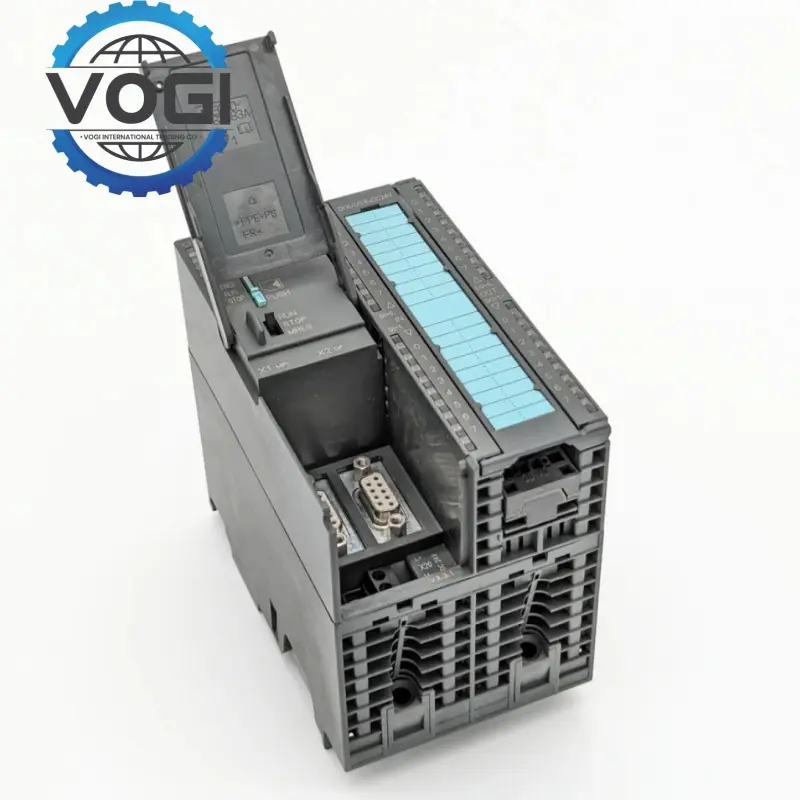

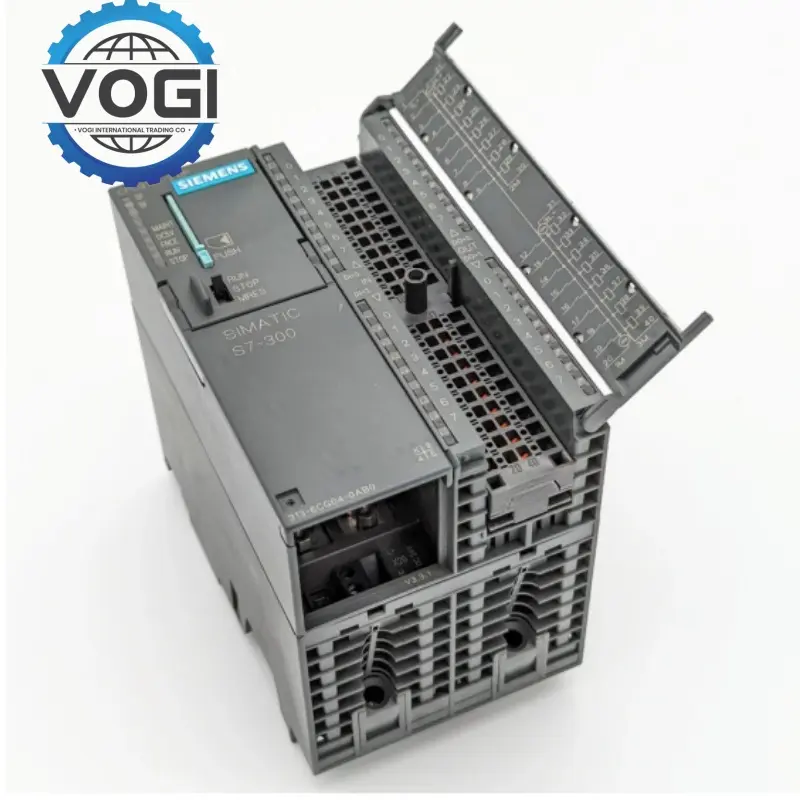

Siemens 6ES7313-6CG04-0AB0 Compact CPU

1. Core performance

Processor: 32-bit CPU, binary instruction processing speed 70ns/bit, support real-time control and fast logic operation

Memory: integrated 128KB working memory (program storage), needs to be equipped with MMC card expansion (maximum 8MB), supports battery-free data storage.

Power supply: 24V DC power supply (voltage range 19.2V~28.8V), power consumption is about 6.5W, with 5ms power failure cross-connection protection.

2. Communication interface

Integrated interface: 1 MPI interface (rate 187.5kbps, support 8 connections), 1 PROFIBUS-DP interface (support master/slave mode, rate 12Mbps), can directly connect distributed I/O devices.

Expansion capability: can be upgraded to Ethernet communication through CP module (additional hardware required).

3. I/O configuration

Digital quantity: 16 input points (24V DC) + 16 transistor output points (24V DC, 0.5A/point), supports direct connection to switches, relays and other devices.

High-speed counter: 3 (up to 30kHz), supports frequency measurement and position counting

4. Physical characteristics

Protection level: IP20.

Operating temperature: 0°C~60°C (horizontal installation)/0°C~40°C (vertical installation).

5. Expansion capability

Up to 8 local modules can be expanded to support flexible configuration of small and medium-sized systems.

Siemens 6ES7313-6CG04-0AB0 has built-in 16DI/16DO and 3 high-speed counters, which reduces the number of external modules, simplifies the system architecture, and is suitable for quickly building small control systems.

Integrated PROFIBUS-DP interface can directly connect distributed I/O devices to reduce wiring costs.

2. Real-time control capability

70ns instruction cycle and 30kHz high-speed counter meet the requirements of packaging machinery, logistics sorting equipment and other scenarios with high dynamic response requirements.

Support hardware interrupts and can quickly process emergency signals.

3. Flexible communication protocol

MPI interface supports communication with S7-300/400 PLC, programming device and HMI, PROFIBUS-DP interface is compatible with industrial automation network and adapts to third-party devices.

Siemens 6ES7313-6CG04-0AB0 can expand Ethernet through CP module to meet complex network requirements.

4. Industrial-grade reliability

With wide voltage input, diagnostic LEDs to display faults in real time, and a diagnostic buffer that records 500 events, Siemens 6ES7313-6CG04-0AB0 is suitable for dusty and vibrating environments.

It supports redundant power input (external redundant modules are required) to improve system stability.

5. Programming compatibility

Siemens 6ES7313-6CG04-0AB0 supports STEP 7 V5.5 programming, is compatible with LAD/FBD/STL languages, seamlessly connects to existing S7-300 projects, and lowers the development threshold.

Packaging machinery: logical control of labeling machines and filling machines.

Simple machine tools: spindle start and stop, tool positioning (pulse counting and position control through high-speed counters).

Injection molding machines: mold switching, pressure regulation (digital I/O controls solenoid valves and relays).

2. Logistics and material handling

Sorting system: conveyor start and stop logic, cargo position detection (high-speed counter counts the amount of passing).

Elevator control: upper and lower limit protection and speed regulation based on position signals.

3. Process monitoring

Food processing: temperature and humidity monitoring (external analog module required), sterilization equipment start and stop control.

Water treatment: water pump start and stop and liquid level alarm of small pumping stations (digital I/O realizes switch control).

4. Energy and infrastructure

Distribution room: equipment status monitoring (such as circuit breaker opening and closing signal acquisition).

Heating, ventilation and air conditioning (HVAC): local temperature and humidity adjustment (analog module needs to be expanded to achieve closed-loop control).

5. Special equipment

Printing machinery: tension adjustment (external analog module required), color mark detection (high-speed counter synchronization signal).

Environmental protection equipment: sensor signal acquisition and actuator control of exhaust gas treatment device.
