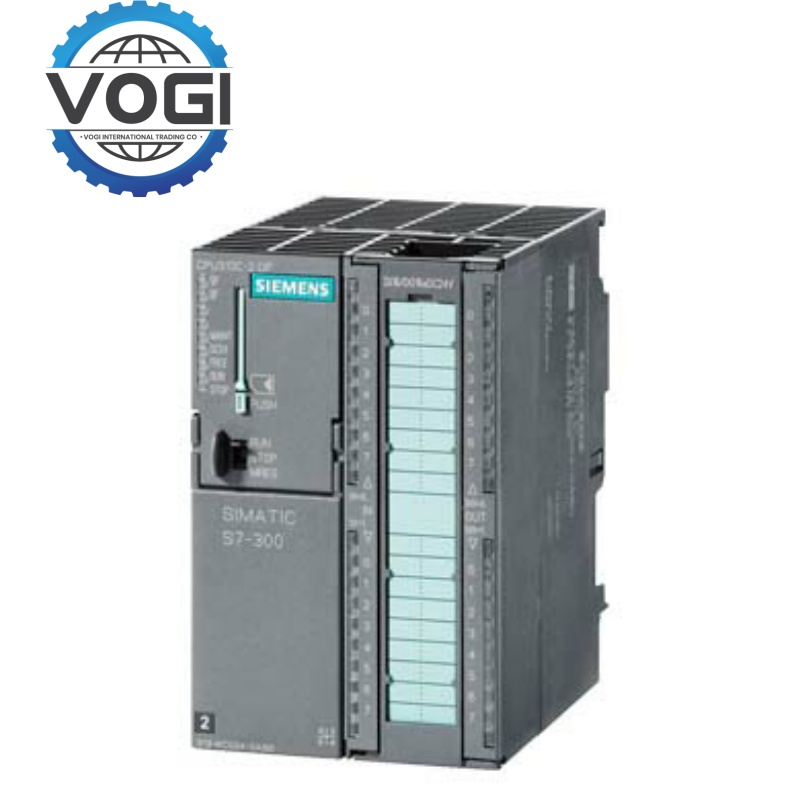

Siemens 6ES7313-6CG04-4AB1 Compact CPU
Key SpecificationsVOGI
Core performance: 32-bit processor, 0.1μs/bit instruction speed, 128KB working memory, support MMC card expansion (maximum 8MB).
Power supply: 24V DC (19.2V~28.8V), power consumption 6.5W, 5ms power failure protection.
Communication interface: 1×MPI (187.5kbps), 1×PROFIBUS-DP (master/slave, 12Mbps).
I/O configuration: 16DI/16DO (24V DC, 0.5A/point), 3× high-speed counter (30kHz).
Physical characteristics: weight 0.764kg, IP20 protection, operating temperature 0~60°C (horizontal installation).
Expansion capability: up to 8 local modules.
Key FeaturesVOGI
Highly integrated: Siemens 6ES7313-6CG04-4AB1 has built-in digital I/O, high-speed counters and dual communication interfaces, reducing external modules.
Real-time control: 70ns instruction cycle + 30kHz counter, adapting to dynamic response scenarios.
Flexible communication: PROFIBUS-DP supports distributed I/O and can expand Ethernet (CP module required).
Industrial-grade reliability: Siemens 6ES7313-6CG04-4AB1 is wide voltage input, diagnostic LED, redundant power supply support (external module required).
Programming compatibility: Supports STEP 7, LAD/FBD/STL language, seamlessly connects S7-300 projects.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$43 |
|
Southeast Asia |
$31 |
|
South Asia |
$56 |
|
South Africa |
$46 |
|
Europe and USA |
$28 |
|
Russia |
$51 |
APPLICATIONVOGI
Manufacturing:
Packaging machinery: labeling machine, filling machine start and stop control, material counting (high-speed counter).
Simple machine tools: spindle control, tool change logic (digital I/O).
Injection molding machine: mold opening and closing position detection, temperature closed-loop control (analog module needs to be expanded).
Logistics and warehousing:
Sorting system: conveyor belt speed adjustment, cargo sorting logic (PROFIBUS-DP connected to distributed I/O).
Elevator/AGV: position detection and path planning (high-speed counter + communication module).
Process control:
Food processing: mixing tank temperature monitoring (analog input), valve switch control (digital output).
Water treatment: pump station start and stop, liquid level monitoring (analog module needs to be expanded).
Energy and infrastructure:
Distribution room: equipment status monitoring (digital input), switch control (digital output).
Building automation: air conditioning system temperature and humidity adjustment (analog module), lighting logic control.
Special equipment:
Printing machinery: tension adjustment (analog control), color mark detection (high-speed counter).
Environmental protection equipment: valve control and sensor feedback of exhaust gas treatment system.
