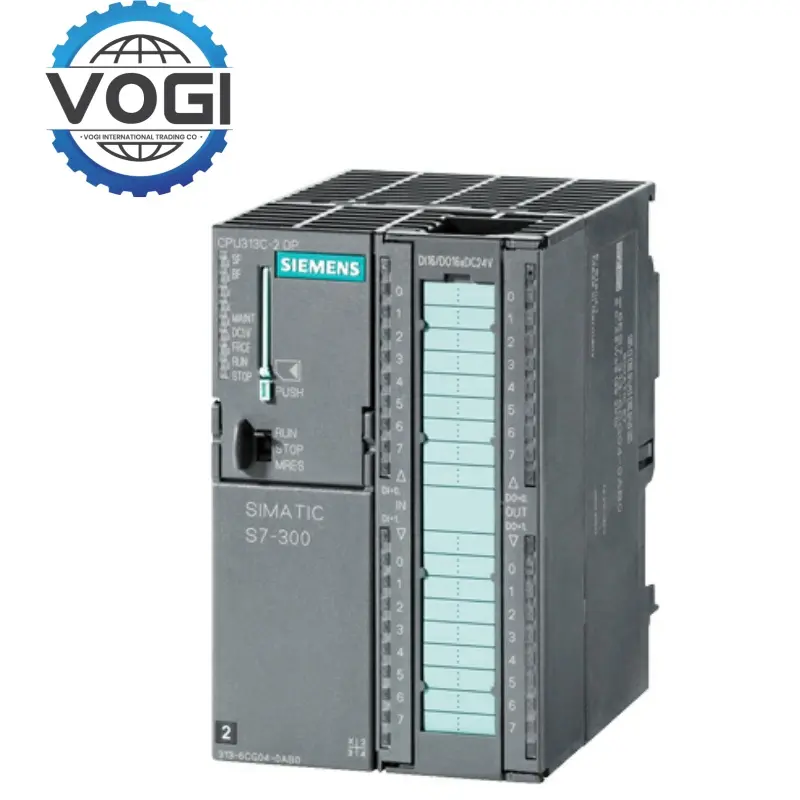

Siemens 6ES7313-6CG04-4AB2 Compact CPU
Key SpecificationsVOGI
1. Core performance:
Processor: 32-bit microprocessor, bit operation instruction execution time 0.1μs, support real-time control tasks.
Memory: 128KB working memory (for program running), support 8MB MMC card (need to be purchased separately) for extended storage.
Power supply: 24V DC (allowable fluctuation range 19.2V~28.8V), power consumption 6.5W, with 5ms power-off protection.
2. Communication interface:
MPI: 187.5kbps, supports 8 connections (programming device, HMI, etc.).
PROFIBUS-DP: Master/slave mode, maximum rate 12Mbps, can connect distributed I/O and drives.
3. I/O configuration:
Digital quantity: 16 inputs (24V DC) + 16 outputs (transistor type, 0.5A/point).
High-speed counter: 3 channels, up to 30kHz, supports position detection and speed measurement.
4. Physical characteristics: Protection class IP20.
5. Operating temperature: 0~60°C (horizontally mounted) or 0~40°C (vertically mounted).
6. Expansion capability: Connect up to 8 local modules.
Key FeaturesVOGI
High integration:
Siemens 6ES7313-6CG04-4AB2 has built-in digital I/O, high-speed counter, and dual communication interface (MPI+PROFIBUS-DP), which reduces the number of external modules and reduces the complexity of wiring.
Supports modular expansion and adapts to diverse control needs.
Real-time control capability:
70ns instruction cycle with 30kHz high-speed counter, suitable for dynamic response scenarios.
Supports PROFIBUS-DP isochronous mode to ensure accurate coordination of distributed systems.
Flexible communication architecture:
PROFIBUS-DP master mode can manage 125 slaves, and slave mode can be connected to the upper control system.
Siemens 6ES7313-6CG04-4AB2 can expand CP 343-1 communication module to achieve Ethernet connection, support S7 communication, Web server and other functions.
Industrial reliability:
Wide voltage input (19.2V~28.8V), diagnostic LED indicator.
Redundant power supply design (external module required) to adapt to harsh industrial environments.
Programming compatibility:
Siemens 6ES7313-6CG04-4AB2 supports STEP 7 programming software, including LAD (ladder diagram), FBD (function block diagram), STL (statement list).
Compatible with S7-300 series modules, easy to upgrade or expand the system.
