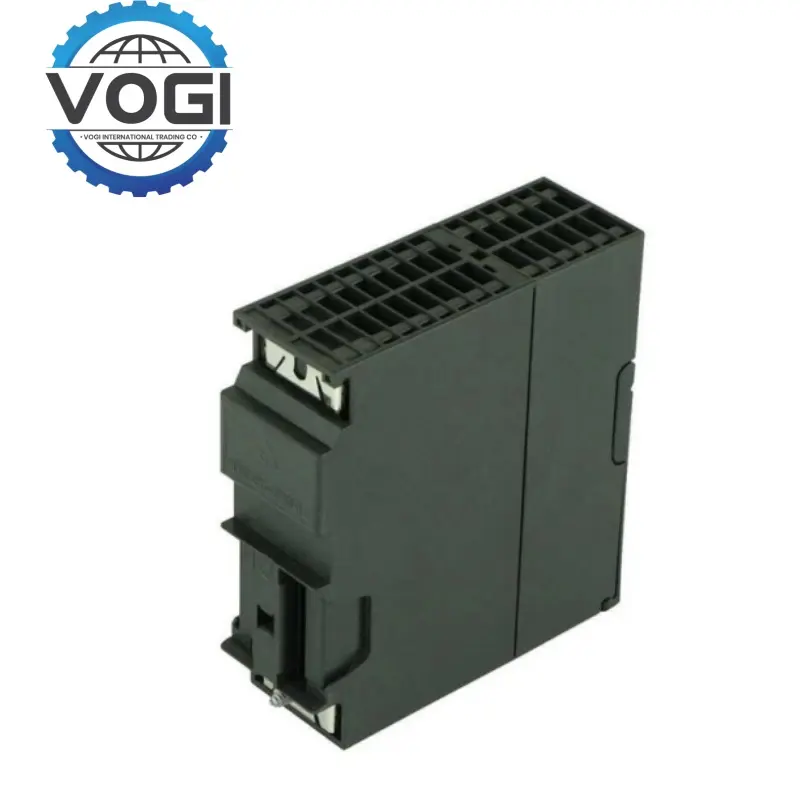

Siemens 6ES7314-1AG14-0AB0 Central processing unit

Processor: 32-bit microprocessor, binary instruction execution time 60ns, floating point operation time 0.59μs, support real-time control tasks.

Memory: 128KB working memory (for program running), MMC card (maximum 8MB) is required for extended storage, and programs and data must be stored in the MMC card.

Power supply: 24V DC (allowable fluctuation range 19.2V~28.8V), power consumption 6.5W, with 5ms power-off protection.

MPI: 187.5kbps, supports 12 connections (programming devices, HMI, etc.), and can establish a simple network of up to 16 CPUs through global data communication.

Extended communication: Ethernet or PROFIBUS-DP communication can be achieved through CP modules (such as CP 343-1), but the CPU body does not have an integrated DP interface.

3. I/O configuration

No integrated I/O: Digital or analog input and output are realized through expansion modules (such as SM 321/SM 322), and up to 32 local modules (4-row structure) are supported.

Physical characteristics: Protection level IP20.

Operating temperature: 0~60°C (horizontal installation) or 0~40°C (vertical installation).

4. Expansion capability

Supports 8 local expansion modules (such as analog modules, communication modules), but the rack needs to be expanded through IM 360/361 interface modules.

Siemens 6ES7314-1AG14-0AB0 has no integrated I/O and needs to be equipped with SM modules for flexible configuration. It is suitable for small and medium-sized systems that require diverse I/O points.

Supports hot-swappable module replacement to reduce downtime.

High real-time performance

60ns instruction cycle with fast response mechanism, suitable for scenarios requiring precise control.

Supports OB organization blocks (such as OB1, OB35) to implement priority task scheduling.

Communication flexibility

Siemens 6ES7314-1AG14-0AB0 has a built-in MPI interface that can connect programming devices and HMIs. After expanding the CP module, it supports PROFIBUS-DP or Ethernet to adapt to complex network architectures.

Supports S7 communication and global data exchange to facilitate multi-controller collaboration.

Industrial-grade reliability

Wide voltage input (19.2V~28.8V), diagnostic LED indicator.

Redundant power supply design (external module required) to adapt to harsh industrial environments.

Programming compatibility

Siemens 6ES7314-1AG14-0AB0 supports STEP 7 programming software, including LAD (ladder diagram), FBD (function block diagram), STL (statement list).

Compatible with S7-300 series modules, easy to upgrade or expand the system.

Packaging machinery: logical control of labeling machines and filling machines (digital modules need to be expanded).

Simple machine tools: spindle start and stop, tool replacement (digital I/O) and position detection (high-speed counter module).

Injection molding machine: mold opening and closing control, temperature closed loop (analog modules need to be expanded).

Logistics and warehousing

Sorting system: conveyor belt speed adjustment, cargo sorting logic (PROFIBUS-DP connected to distributed I/O).

Elevator/AGV: path planning and position detection (high-speed counter module needs to be expanded).

Process control

Food processing: mixing tank temperature monitoring (analog input), valve switch (digital output).

Water treatment: pump station start and stop, liquid level monitoring (analog module).

Energy and infrastructure

Distribution room: equipment status monitoring (digital input), switch control (digital output).

Building automation: air conditioning system temperature and humidity adjustment (analog module), lighting logic control.

Special equipment

Printing machinery: tension adjustment (analog control), color mark detection (high-speed counter module).

Environmental protection equipment: valve control and sensor feedback of exhaust gas treatment system.
