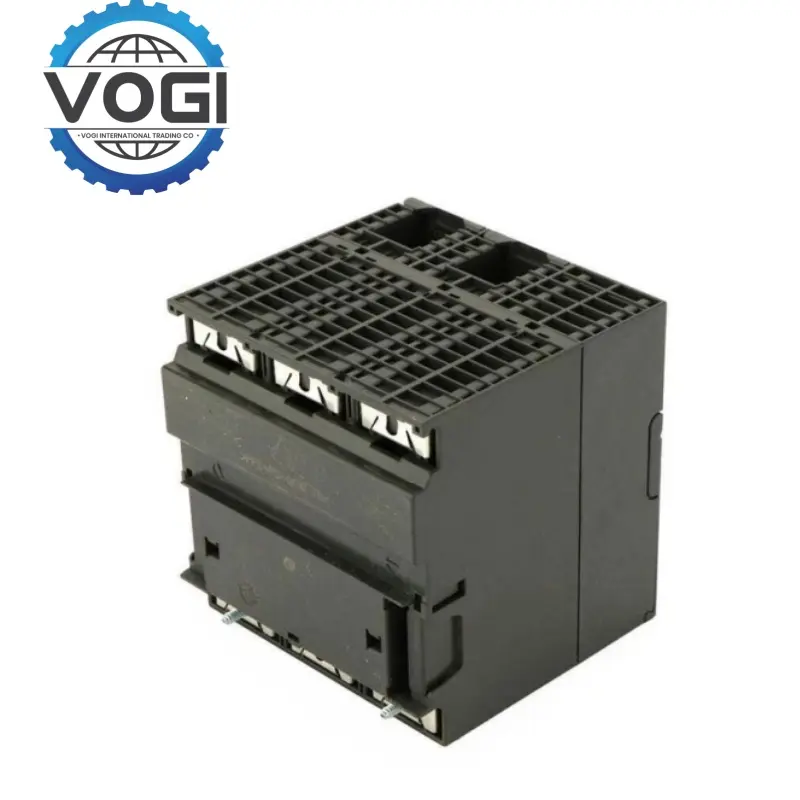

Siemens 6ES7314-6CH04-0AB0 Compact CPU
Siemens

Siemens 6ES7314-6CH04-0AB0 Compact CPU

  • Brand Siemens
  • Model Number 6ES7314-6CH04-0AB0
  • Country Of Origin Germany
  • Dimension 13.4*15.4*12.9cm
  • Weight 0.726kg
  • HS CODE 85371091
  • Condition Brand New
  • Certificate COO TEST REPORT WARRANTY LETTER
  • Warranty 12 Month
  • Inventory Qty 10
  • Payment term T/T

Key SpecificationsVOGI

1. Core performance
Processor: 60 ns/binary instruction processing speed, supports complex logic control and real-time response.
Memory: 192 KB working memory, expandable to 8 MB load memory via SIMATIC Micro Memory Card (MMC).
2. I/O integration:
Digital: 24 inputs (DI)/16 outputs (DO), supports alarm processing and interrupt input.
Analog: 4 inputs (AI)/2 outputs (AO), supports current/voltage signals, 1 Pt100 temperature input.
High-speed counter: 4 channels, up to 60 kHz, supports frequency measurement, period measurement and direct encoder connection.
3. Communication interface:
MPI: supports 12 connections for programmer, HMI and other PLC communications.
PROFIBUS DP: master/slave interface, with a maximum transmission rate of 12 Mbps, can connect distributed I/O (such as ET 200M) or third-party DP devices.
Power supply: 24 V DC, rated current consumption 880 mA, supports 5 ms power-off buffering.
Physical specifications: Supports DIN rail or wall mounting.
Operating temperature: 0°C to + 60°C
Protection level: IP20

Key FeaturesVOGI

1. PROFIBUS DP high-speed communication
Distributed system integration: Siemens 6ES7 314-6CH04-0AB0 can connect up to 125 slaves through the DP interface, realizing millisecond-level data exchange between devices, which is suitable for complex production lines or cross-regional control.
Flexible configuration of master and slave stations: Siemens 6ES7 314-6CH04-0AB0 supports managing lower-level devices as a DP master station, or communicating with the upper-level controller as a slave station, and is compatible with third-party DP devices.
2. Integrated technical functions
High-speed counting and positioning: 4 60 kHz counters support direct connection of incremental encoders, which can realize axis positioning, synchronous control and motion monitoring.
Pulse width modulation (PWM): 4 PWM outputs (2.5 kHz) for controlling heating equipment, control valves or stepper motors.
PID closed-loop control: Built-in PID algorithm supports real-time adjustment of process parameters such as temperature and pressure without the need for additional modules.
Pt100 temperature measurement: directly connected to the platinum resistance sensor, with an accuracy of ±0.5°C, suitable for industrial temperature control scenarios.
3. Reliability and scalability
Diagnosis and redundancy: Siemens 6ES7 314-6CH04-0AB0 has a built-in diagnostic buffer that stores 500 error events, supports hardware failure, programming errors and I/O status monitoring; and achieves maintenance-free data backup through MMC cards.
Modular expansion: Up to 31 modules can be expanded, hot-swappable, and adapt to system upgrade requirements.
4. Ease of use and compatibility
Programming tools: Support STEP 7 V5.5 and above, provide programming languages ​​such as LAD/FBD/STL, and are compatible with TIA Portal (need to be transplanted).
MMC card compatibility: The MMC card of the old CPU can be used directly to reduce migration costs.

Freight Estimation(Part Of The Area)VOGI

Destination

Freight

Middle East

$43

Southeast Asia

$31

South Asia

$56

South Africa

$46

Europe and USA

$28

Russia

$51


APPLICATIONVOGI

Manufacturing
Production line control: coordination of robots, servo drives and visual inspection systems.
Packaging machinery: synchronization and dynamic control of motion axes of labeling machines and filling machines.
Process automation
Energy management: MPPT control of photovoltaic power plants, closed-loop temperature regulation of chemical reactors.
Water treatment: start and stop of pump groups, valve opening adjustment and water quality monitoring.
Buildings and infrastructure
HVAC systems: temperature and humidity monitoring, damper actuator coordination.
Smart lighting: dynamic dimming and scene-based control.
Logistics and transportation
Conveyor line scheduling: multi-motor speed synchronization and fault warning.
Parking lot management: vehicle identification, barrier linkage and parking space statistics.
OEM equipment
Medical instruments: embedded control of centrifuges and analytical equipment.
Test bench: dynamic test data acquisition and real-time analysis.
