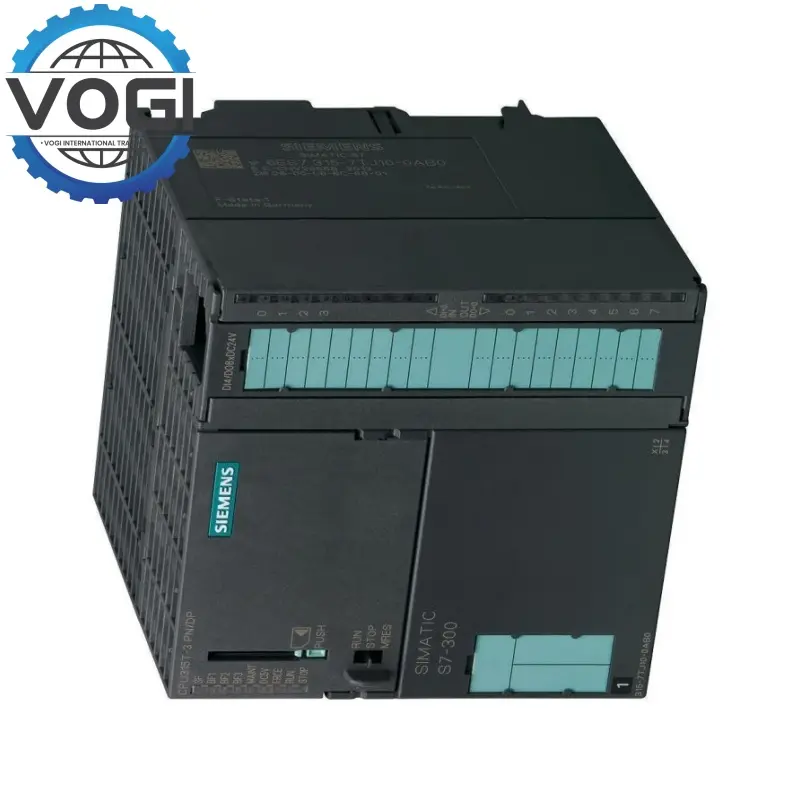

Siemens 6ES7315-7TJ10-0AB0 Compact Central Processing Unit
Key SpecificationsVOGI
Application: CPU for PLC and technological functions.
Working memory: 384 KB.
Interfaces:
1st interface: MPI/DP (12 Mbit/s).
2nd interface: DP (Drives).
3rd Interface: Ethernet PROFINET with integrated 2-port switch.
Integrated Features: Integrated I/O for technologically-oriented use-cases.
Accessories needed: 1 40 pin (front) connection and a Micro Memory Card with at least 8 MB.
Key FeaturesVOGI
Powerful combination of control and technology functions: As a CPU, 6ES7315-7TJ10-0AB0 can not only perform standard tasks of controlling, but also can used for some specific tasks in technology. Its working memory capacity of 384 KB allows running programs and data to be effectively stored and processed.
3 communication interfaces: 6ES7315-7TJ10-0AB0 has rich communication interfaces. The MPI/DP interface exchange rate is up to 12Mbit/s, and it is convenient to communicate with other Siemens devices; the DP (drive) interface proves high speed connection; the Ethernet PROFINET interface with 2-port switch-supported network communication and data transmission, which makes it convenient to build industrial networks for collaborative control.
Function-Integration-High degree of integration, I/O for process devices is integrated, fewer external Expanded station is required, system costs, Engineering costs and wiring efforts are minimized; Needs to be used with40-pin Front connector for 315-2 DP 32 Front connector and MM card (MMC) 8MB required for data storage and data loading)).
Good standard: 6ES7315-7TJ10-0AB0 is subject to RoHS Directives corresponding to the substance restriction since May 28, 2013, as well as the WEEE (2012/19/EU) Directives recycling obligation, and must comply with the notification requirements of Article 33 of the REACH regulations for the product Safety and environmental protection.
Freight Estimation(Part Of The Area)VOGI
Destination |
Freight |
Middle East |
$42 |
Southeast Asia |
$15 |
South Asia |
$55 |
South Africa |
$47 |
Europe and USA |
$27 |
Russia |
$50 |
APPLICATIONVOGI
Equipment interconnection control: Manly used in production and transportation industry, which depends on Many interfaces for sensors/actuators to connect many activities and drive equipment, to achieve automated control of production equipment and transportation equipment. Example Automobile production line control of the act of the equipment or logistics and transport equipment automatic loading and unloading, delivery etc.
System Monitoring and Control: In the field of power system and building automation, it is capable of gathering various kinds of data (power parameters, environmental parameters, etc.), it can monitor the operation state of the system, and implement intelligent regulation according to the collected data. For instance, protection is actuated by the power system's abnormal condition and equipment operation in the building system is modified to conserve energy and enhance occupant comfort.
