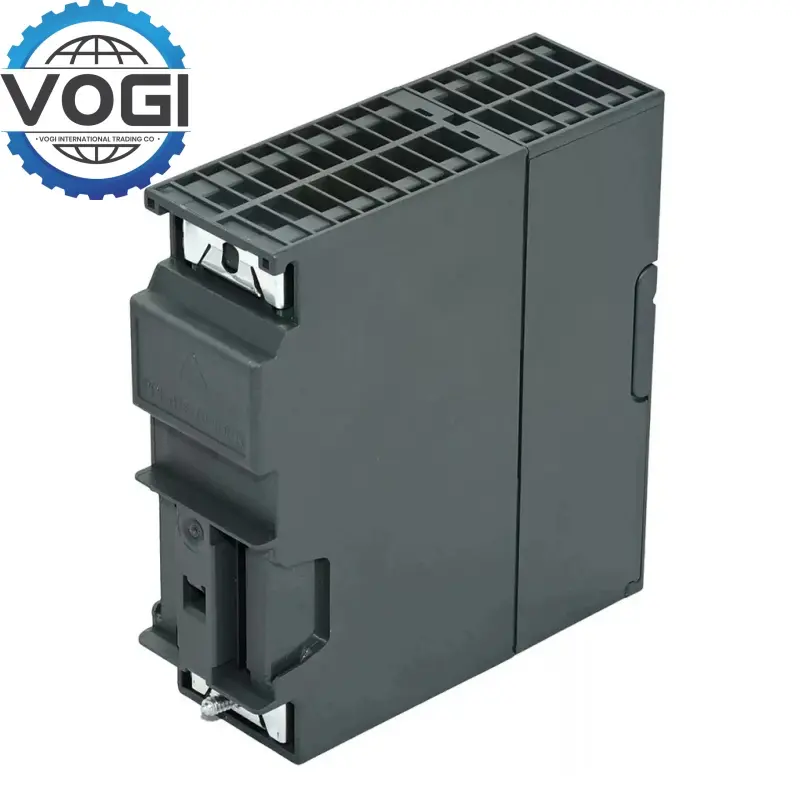

Siemens 6ES7317-2EK14-0AB0 Central Processing Unit

Rated voltage: DC24V Allowed range: 20.4 - 28.8V

Power supply line (recommend the external protection of the power supply line): 2A or more.

Power buffer time 5ms under power failure, minimum repeating time 1s

Power consumption: rated 750mA, typical without load 150mA, typical value inrush current 4A

Loss in power: average value 4.65 Watt

Work memory: 1024kbyte integrated, not expandable

Load memory: plug-in MMC (max 8Mbyte), at least 10 years process data management of MMC

Environmental Specifications: operating ambient temperature 0 - 60 C

High performance: Siemens 6ES7317-2EK14-0AB0 has high speed, big memory, the extraction and export to SD card up to 4GB with 1MB memory.

Rich communication The 6ES7317-2EK14-0AB0 provides several interfaces, supports multiple protocols - MPI, PROFIBUS DP, PROFINET IO - and links up many of its devices.

Flexible programming: Several programming languages ​​are possible Programming set up with STEP 7 V5. 5 and above.

dependable storage: MMC saves programs and data without batteries.

Full diagnosis: 6ES7317-2EK14-0AB0 has a diagnosis buffer, and supports a range of test and debug functions.

Strong adaptability: the operating temperature is 0 - 60°C, and it is applicable to most industrial environments.

Manufacturing: 6ES7317 - 2EK14 - 0AB0 is applied to manufacturing, control of production line equipment in automobile manufacturing; control of production links in electronic equipment production: adjustment of production parameters, quality inspection in food and beverage processing.

Process industry: petrochemical monitoring process parameters to control the safety; power system control equipment to guarantee the power supply; sewage treatment control process to improve treatment efficiency.
