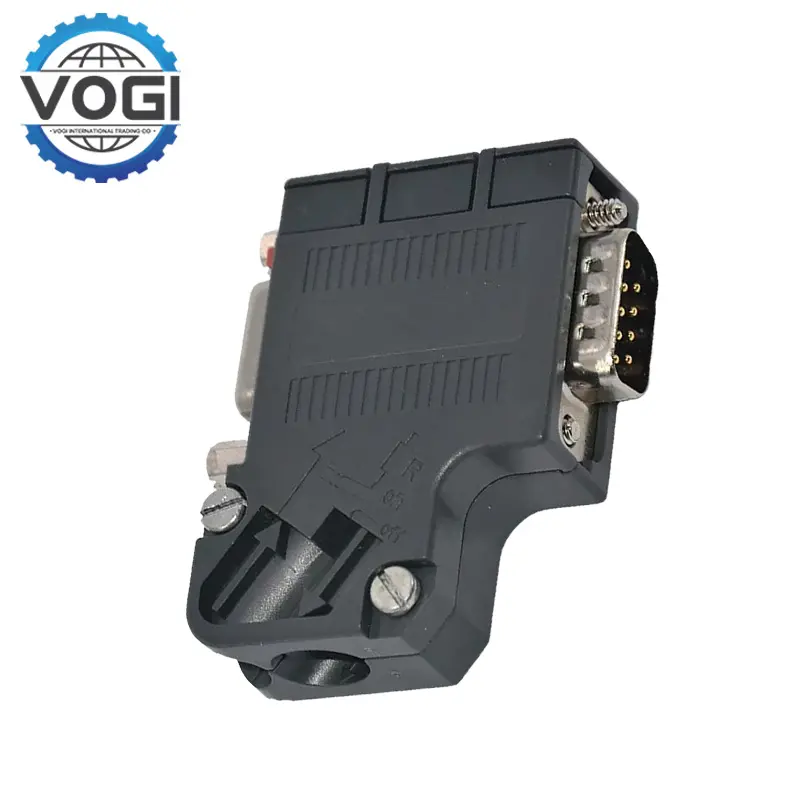

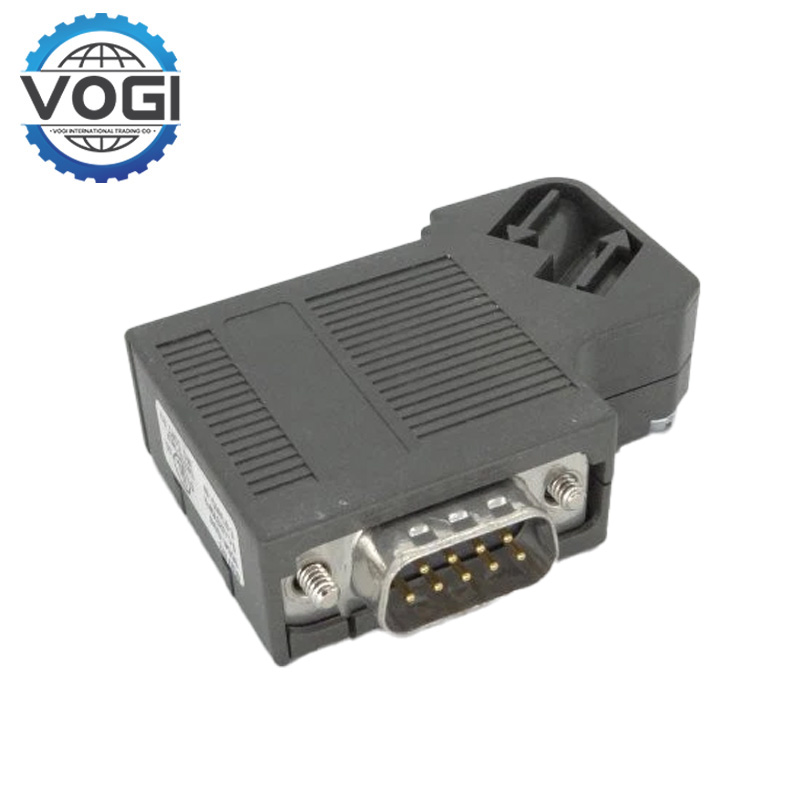

Siemens 6ES7972-0BB41-0XA0 BUS CONNECTOR FOR PROFIBUS

Application: Connects PROFIBUS DP devices (RS-485 interface) with space-saving cable routing.

Transmission Rate: Up to 12 Mbps (supports all standard PROFIBUS DP speeds).

Interface: 9-pin D-Sub male/female (90° angled ports for in/out connections).

Features:

Integrated programming interface (PG socket) for diagnostics.

Terminating resistor switch (on/off) for network termination.

Screw terminals for secure cable and shield connections.

Connection Type: Screw terminals for shielded twisted-pair PROFIBUS cables.

Protection Rating: IP20 (indoor/industrial use).

Operating Temperature: -25°C to +60°C.

Fast connection technology: Adopting FastConnect insulation piercing connection technology,Siemens 6ES7972-0BB41-0XA0 can be directly connected to the connector without stripping or using special tools, which greatly shortens the installation time and improves the efficiency of field wiring. It is especially suitable for the rapid construction and maintenance of large-scale industrial networks.

Multiple cable lead-out methods: Axial cable lead-out (180°) and vertical cable lead-out (90°) are available, which can be flexibly selected according to different installation spaces and equipment layouts. For example, axial lead-out is suitable for connecting devices such as PC and SIMATIC HMI OP, while vertical lead-out is more convenient for installation in some compact spaces.

Smart factory: As an important communication component in the construction of smart factories, it can connect various intelligent devices, robots, automated warehousing systems, etc. in the factory into an organic whole. Siemens 6ES7972-0BB41-0XA0 realizes interconnection and information sharing between devices, provides strong communication support for realizing intelligent production, optimizing production processes, remote monitoring of equipment and fault diagnosis, and helps enterprises achieve digital transformation and enhance competitiveness.

Process control system: In the process control fields such as petrochemical, electric power, and metallurgy, various on-site measuring instruments such as temperature, pressure, and flow sensors and actuators such as control valves and frequency converters can be connected to the control system (such as DCS, PLC). Through the PROFIBUS network, real-time monitoring and precise adjustment of various parameters in the production process can be achieved to ensure the safe, stable and efficient operation of the production process, helping enterprises to reduce energy consumption, reduce waste and improve production efficiency.

Mechanical equipment manufacturing: In the control systems of mechanical equipment such as machine tools, printing machinery, and packaging machinery, Siemens 6ES7972-0BB41-0XA0 is used to connect various control units and drive components of the equipment. It ensures fast and accurate communication between various parts of the equipment, realizes automatic control and precise motion control of the equipment, and facilitates equipment manufacturers to remotely maintain and upgrade the equipment, improve the performance and reliability of the equipment, and reduce after-sales service costs.

Siemens 6ES7972-0BB41-0XA0 has built-in bus termination resistors, which can be easily connected or disconnected through externally visible and easy-to-operate switches.
