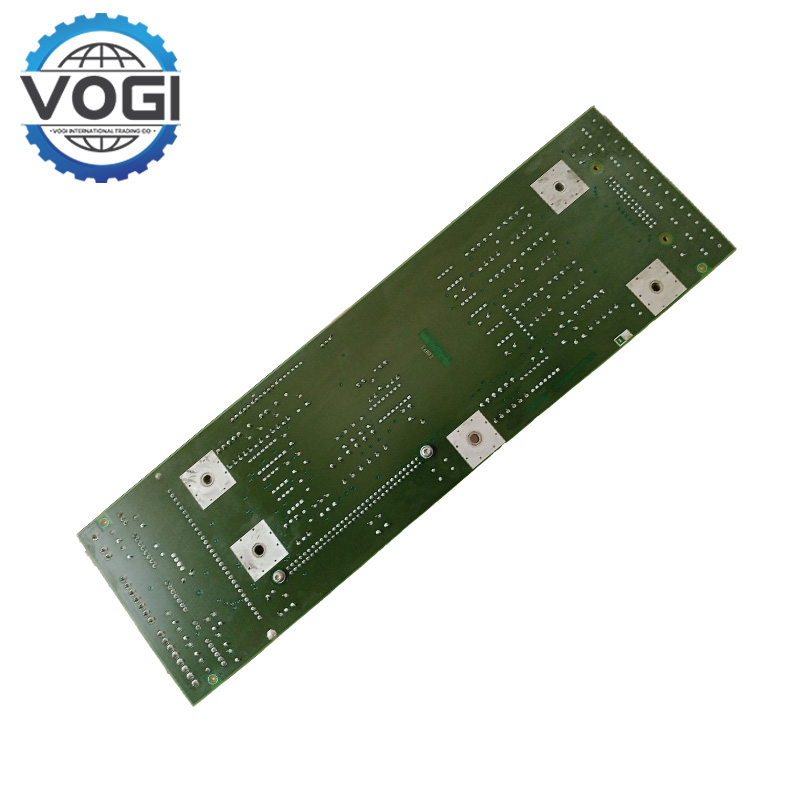

Siemens 6SE7031-5EF84-1BH0 Master drives Normalizing module
Key SpecificationsVOGI
Rated Power: 15 kW (20 HP).
Input Voltage:
3-phase: 380–480 V AC (±10%), 50/60 Hz.
Output Voltage: 0–480 V AC.
Output Current: 32 A (max continuous).
Control Method: Vector control.
Frequency Range: 0–600 Hz.
Communication Interfaces:
PROFIBUS DP.
Analog/digital I/O for control.
Protection Features: Overload, short-circuit, over-voltage, under-voltage, and thermal protection.
Cooling Method: Forced-air cooling (internal fan).
Operating Temperature:0°C to +40°C.
Key FeaturesVOGI
Powerful parameter setting and debugging functions: With self-learning function, Siemens 6SE7031-5EF84-1BH0 can automatically identify the parameters of the motor and optimize the control according to the characteristics of the motor. In addition, Siemens also provides professional debugging software, such as DriveMonitor, through which users can easily debug and monitor the inverter, greatly shortening the debugging time.
Intelligent energy-saving mode: Siemens 6SE7031-5EF84-1BH0 adjusts the output power according to load requirements, reducing energy consumption by 15%-30%.
Online diagnostic system: Built-in fault recording and predictive maintenance functions, real-time feedback of module status through LED indicators or PROFINET interface.
Vector control technology: Siemens 6SE7031-5EF84-1BH0 supports sensorless vector control (Sensorless Vector Control) and closed-loop vector control, with a motor speed regulation accuracy of ±0.01%, suitable for high-precision positioning scenarios (such as CNC machine tool spindle drive).
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$34 |
|
Southeast Asia |
$15 |
|
South Asia |
$44 |
|
South Africa |
$36 |
|
Europe and USA |
$24 |
|
Russia |
$41 |
APPLICATIONVOGI
Conveyor line speed regulation: Siemens 6SE7031-5EF84-1BH0 can adjust the belt conveyor speed to adapt to the beat requirements of different workstations and improve the flexibility of the production line.
Crane lifting control: Regenerative braking energy feedback technology reduces energy consumption, combined with safety functions to prevent overload and hook slip accidents.
Fan and water pump frequency conversion control: Siemens 6SE7031-5EF84-1BH0 dynamically adjusts the speed according to fluid demand, energy saving rate of 40% (such as aeration fans in sewage treatment plants).
Color synchronization: Multi-axis collaborative control of printing rollers, registration error <0.1mm, ensuring high-speed printing quality.
Solar tracking system: Siemens 6SE7031-5EF84-1BH0 can accurately control the angle of photovoltaic panels to maximize light absorption efficiency.
Mine conveyor belt: long-distance multi-drive point power balancing technology to prevent belt slippage or breakage.
