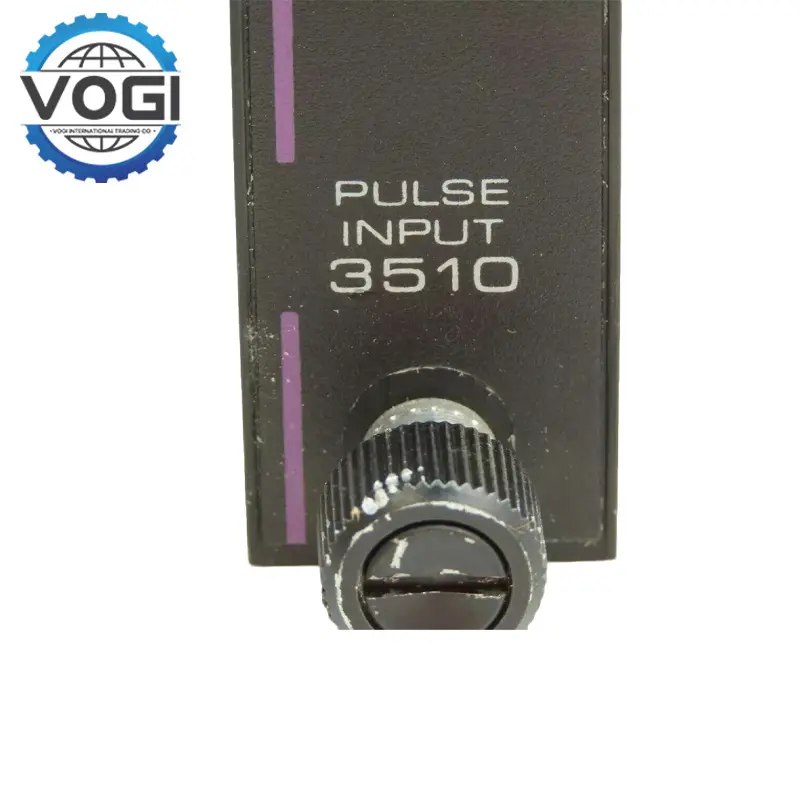

Triconex 3510 Pulse Input Module

 Key SpecificationsVogi

1.Power Supply：
Voltage: 24 VDC nominal136.
Power Consumption: 10 W maximum.
2.Input Parameters：
Input Channels: 16 isolated pulse inputs。
Input Voltage Range: 0 - 30 VDC.
Input Frequency Range: 10 Hz - 20 kHz.
Input Impedance: 5.6 kΩ.
Minimum Pulse Width: 25 microseconds.
Maximum Pulse Width: 20 milliseconds.
Counting Capacity: 32 - bit counter for each input channel.
3.Environment Parameters:
Operating Temperature Range: - 40 °C to + 70 °C.
Storage Temperature Range: - 40 °C to + 85 °C.

Functional FeaturesVogi

1.Triple Modular Redundancy: Features a TMR design with three channels. Each channel processes programs independently and gets I/O signals from the same units.
2.High-speed Processing: It processes in real time at high speed, using complex control logic. A high-performance processor handles multiple I/O signals, solving tasks in chemical and power industries, meeting various real-time control needs.
3.Remote Expansion: With support for remote racks 12 km apart, it offers convenient centralized control for distributed equipment in large sites, minimizing wiring costs and system complexity.
4. Intelligent I/O Cards: Each I/O card has a microprocessor for signal screening and fault diagnosis. Output card microprocessors offer voting and diagnose line faults, enhancing fault detection and reliability. Used widely in industry, it controls motors and protects equipment.

Freight Estimation(Part Of The Area)Vogi

Application AreasVogi

Petrochemical sector: For safety interlock systems anti-surge control of compressor fire and gas monitoring and protection Safely operates processes like oil refining and chemical synthesis, to prevent explosions and leaks of hazardous materials.
Offshore Oil Platforms: Essential to control & safeguard the different machinery on offshore oil platforms. It works in harsh marine environment and secured oil and gas extraction and processing work.
Metallurgy and Mining and Paper-making: Start and control heavy load motor in these industries, provide accurate control and protection for the production equipment and improve production efficiency and product quality.
Rail Transit and Aerospace: Used in critical control systems.It is quite important for the normal functioning of systems like train control and aerospace vehicle control.

AdvantagesVogi

Remote Expansion:  It allows up to 12 kilometers mean distance between racks, enabling centralized management of distributed devices and reducing wiring costs and system complexity.
Intelligent Diagnostics: Microprocessor for self-diagnosis for each I/O card.
User-friendly Software: The Tristation1131 software is a powerful programming, debugging and configuration environment that greatly reduces the knowledge requirement for users.
