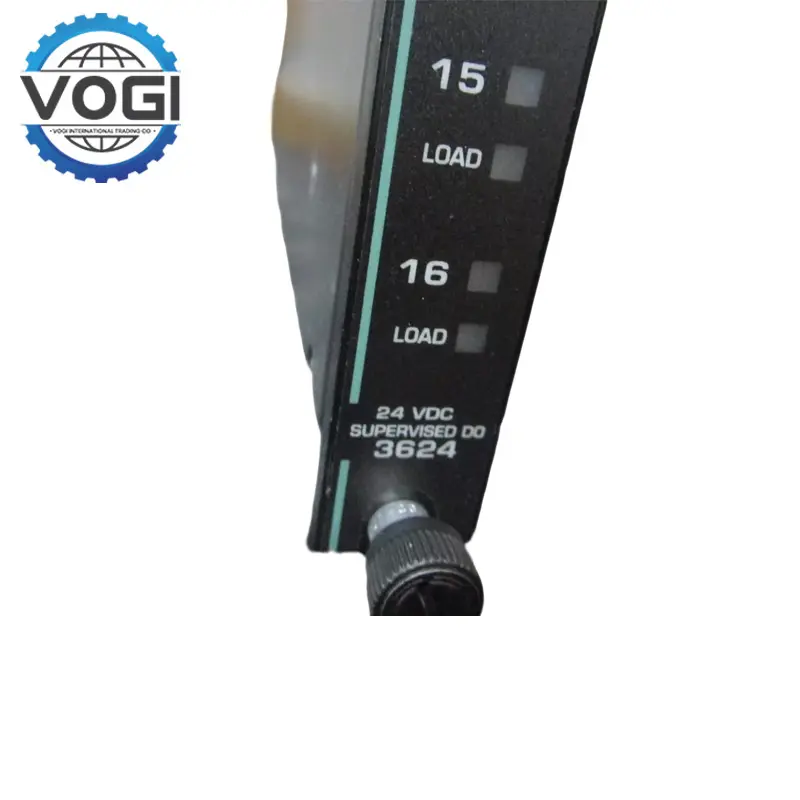

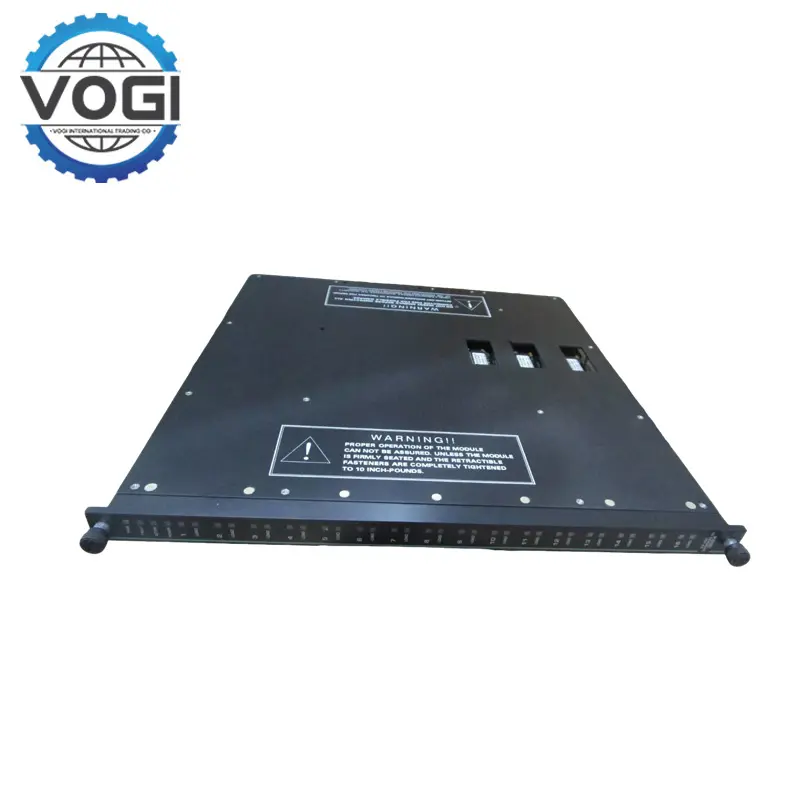

Triconex 3624 Digital Output Module
Key SpecificationsVogi
Power Parameters：
Nominal Voltage: 24 VDC.
Voltage Range: 16 - 30 VDC.
Maximum Voltage: 36 VDC.
Voltage Drop: <1.5 VDC .
Power Module Load: <10 watts.
Current Parameters：
Maximum Current Rating: 0.7 A per point, 4.8 A surge per 10 ms.
Minimum Required Load: 30 mA.
Load Leakage: 4 mA maximum.
Point Isolation: 1500 VDC.
Output Parameters:
Output Type: TMR (Triple Modular Redundancy), supervised digital output.
Number of Output Signals: 16, commoned.
Key FeaturesVogi
Supervised Digital Outputs： Triconex 3624 provides 16 channels supervised digital outputs. The individual channels are constantly monitored, allowing any fault to be identified and reported. This helps in the immediate detection of any abnormal signals found in the output signals, thereby maintaining the integrity of the control system.
Advanced diagnostics: Equipped with advanced online diagnostics It checks the operation of the output switch, the field circuit and whether a load is present. These diagnostics provide full fault coverage without affecting the output signal, allowing early detection and response to any issues.
Emergency stop (ESD) and interlock protection: Supporting the fire and gas system (F&G), burner management system (BMS) and other safety interlock functions, it can quickly be prompted to close or isolated operation under dangerous working conditions, to ensure personnel and equipment safety.
Self-diagnosis and fault localization: Triconex 3624 is equipped with real-time diagnostic functions. Can detect sensor failure, communication abnormalities and other problems. Automatically isolate the faulty module to ensure system continuous operation.
Remote I/O and Signal Acquisition: Supports remote IO modules (e.g RXM/SRXM), maximum transmit distance up to 12km, direct optical fibre connection reduces interference and suitable for long-distance pipelines, offshore platforms and other complex scenarios.
Freight Estimation(Part Of The Area)Vogi
|
Destination |
Freight |
|
Middle East |
$43 |
|
Southeast Asia |
$31 |
|
South Asia |
$56 |
|
South Africa |
$46 |
|
Europe and USA |
$28 |
|
Russia |
$51 |
ApplicationSVogi
Oil and Gas Sector: Being able to offer safe, supervised digital outputs, it guarantees that safety is consistently enforced and that faults are detected and mitigated quickly to prevent an unsafe state.
Chemical Processing Industries: Features fault-tolerant design and continuous supervision of output channels - very useful for controlling operations like chemical reactions, mixing and material handling, where safety and reliability are critical.
Nuclear power plants: Triconex 3624 plays a role in this, supplying dependable control over vital systems such as reactor monitoring and emergency shutdown systems. The diagnostics/TMR architecture draws on this to make certain all faults are identified and handled without putting the facility at risk.
Manufacturing & Automation：Triconex 3624 is used in manufacturing and automation applications, controlling machinery and processes that demand high reliability and safety. Its supervised outputs and fault-tolerant capabilities allow one to use it in situations where appliances are required to work 24/7 without unpredicted downtime.
