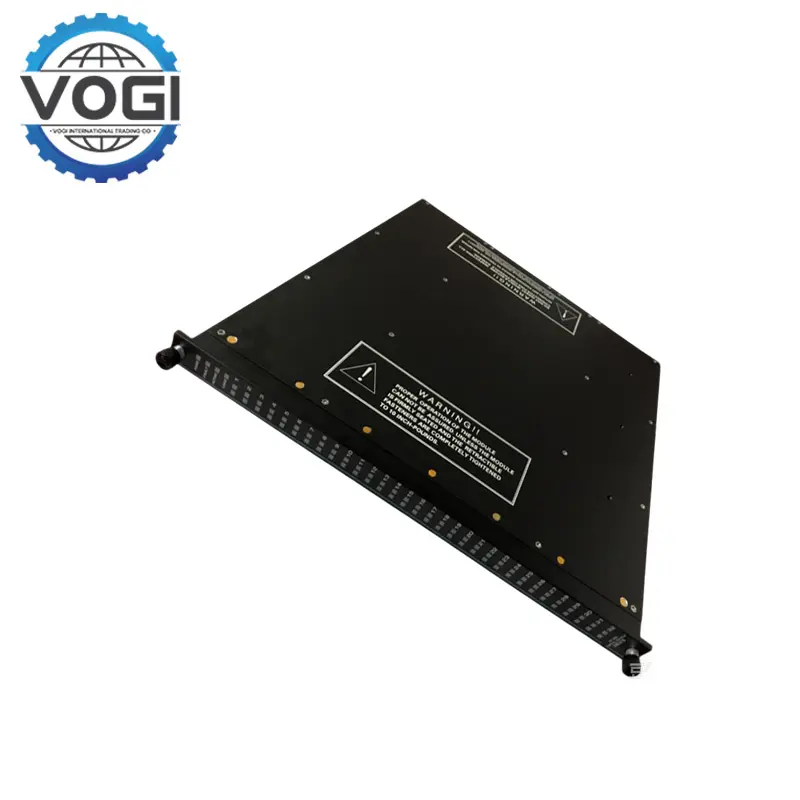

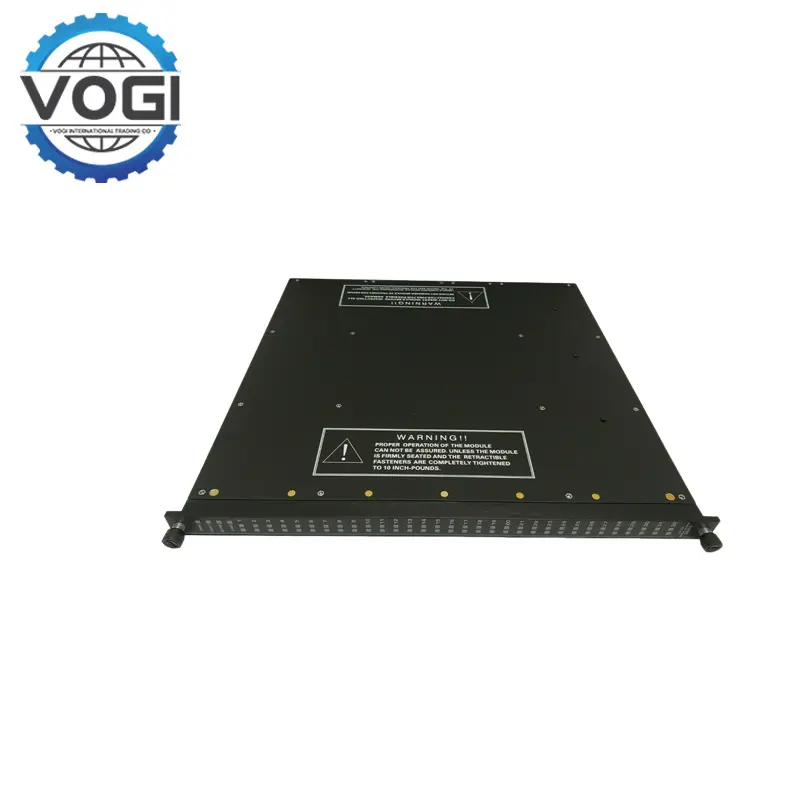

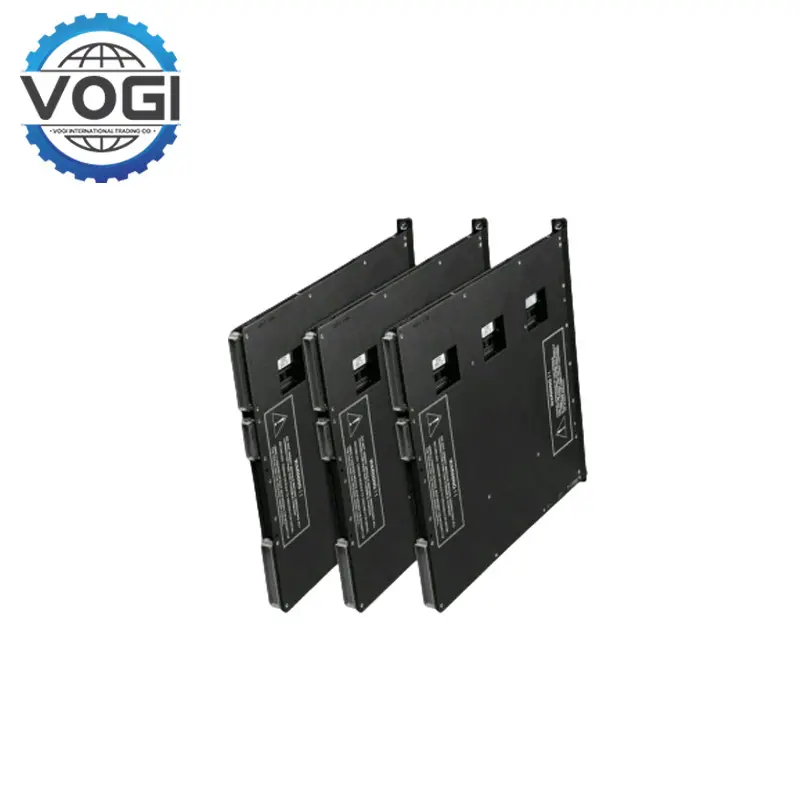

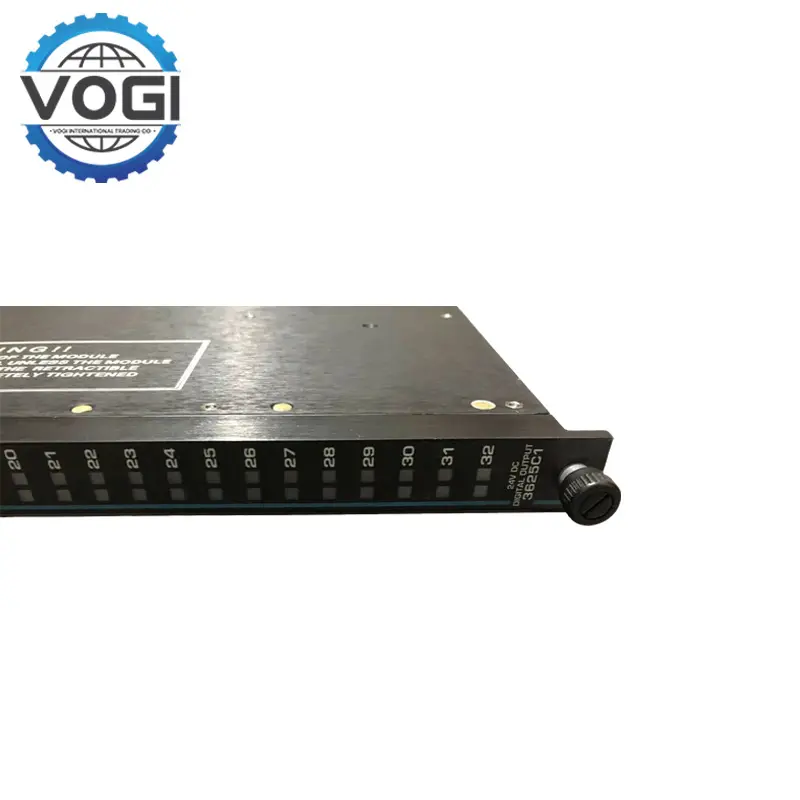

Triconex 3625 TMR Digital Output Modules

Nominal Voltage: 24 VDC.

Voltage Range: 16 - 32 VDC.

Maximum Voltage: 36 VDC.

Voltage Drop: <2.8 VDC .

Power Module Load: <13 watts.

Maximum Current Rating: 1.7 A per point, 7A surge per 10 ms.

Minimum Required Load: 10 mA.

Load Leakage: 4 mA maximum.

Point Isolation: 1500 VDC.

Output Type: TMR (Triple Modular Redundancy), supervised digital output.

Number of Output Signals: 32, commoned.

Triple Modular Redundancy (TMR)：Triconex 3625 employs TMR architecture to ensure fault tolerance and continuous operation. If one channel fails, the remaining two maintain system integrity, critical for safety systems like emergency shutdowns.

Advanced diagnostics: Integrated self-diagnostics to monitor module health, detect faults (e.g., short circuits, open loads) and report errors to the control system. It can support supervised or non-supervised output modes for flexible safety configurations.

Robust Environmental Adaptability: Operates in a temperature range of -40°C to +70°C and withstands harsh conditions like humidity (5%–95%) and vibrations.IP66 protection rating ensures resistance to dust and water ingress in industrial environments.

Safety Compliance: Certified for SIL 3 (Safety Integrity Level 3) under IEC 61508, meeting stringent requirements for critical safety applications. Compliant with CE and UL standards for electrical safety and international deployment.

Digital Output Configuration: Triconex 3625 provides 32 commoned digital output points with 24 VDC voltage, supporting high-precision control of field devices.

Redundant Power Protection: Dual 24V DC redundant power inputs with over-voltage protection.If one power supply fails, the module continues operating seamlessly .

Oil and Gas: Controls critical safety devices such as emergency shutdown valves, fire and gas detection systems, and pressure relief systems. Its Triple Modular Redundancy (TMR) architecture ensures uninterrupted operation even during component failures, preventing catastrophic incidents in refineries and offshore platforms.

Nuclear power plants Safety: Triconex 3625 plays a role in this, supplying Provides SIL 3-certified outputs to control neutron flux monitoring systems, coolant pumps, and backup power circuits. Complies with IEC 61508 and nuclear regulatory standards (e.g., NRC 1E), ensuring fail-safe responses to reactor anomalies.

Manufacturing & Automation：Triconex 3625 can be used Robotic Assembly Lines, It Delivers 24V DC outputs to drive actuators, conveyors, and robotic arms in automotive and electronics manufacturing, ensuring synchronized and fault-tolerant operations.Triggers reject mechanisms for defective products detected by vision systems.
