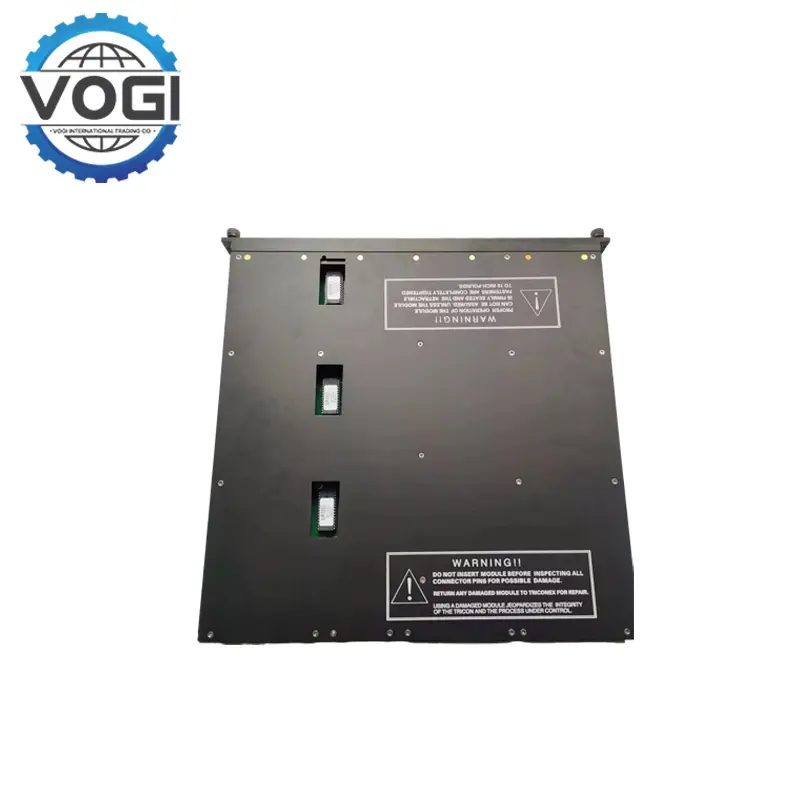

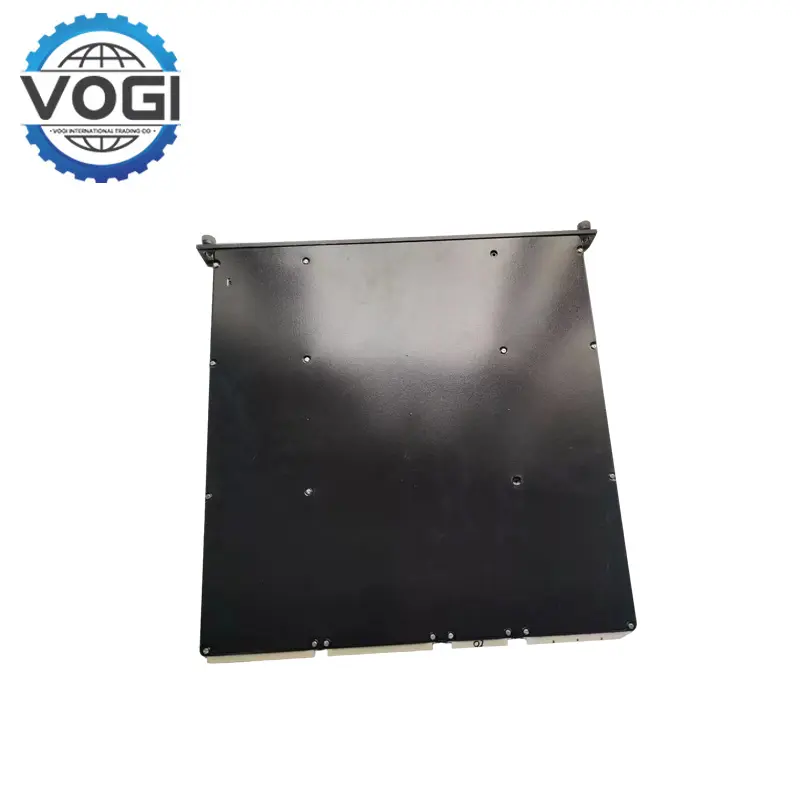

Triconex 3625C1 Supervised/Non- Supervised Digital Output Modules

Voltage Range: 16 - 32 VDC.

Maximum Voltage: 36 VDC.

Voltage Drop: <2.8 VDC .

Power Module Load: <13 watts.

Maximum Current Rating:1.7 A per point, 7 A surge per 10 ms.

Minimum Required Load: 10 mA.

Load Leakage: 4 mA maximum.

Point Isolation: 1500 VDC.

Output Type: TMR (Triple Modular Redundancy), supervised digital output.

Number of Output Signals: 32, commoned.

Rapid Communication: Triconex 3625C1 provides 2 Mbps COMM bus between main processor and I/O modules for quick data transfer and fast system response.

Triple Modular Redundancy (TMR) Architecture：Employ TMR technology, ensuring fault tolerance and system integrity. This structure, which avoids single points of failure, is also applicable to critical safety applications that need SIL 2 or SIL 3 certification (nuclear plants, chemical processing).

Redundant Power Supply Design : Chassis backplane with dual independent power rails for redundant power distribution. You have an described as dual power regulators on each module to maintain stability run on two supply to make sure that none of the power source fails.

Digital Input/Output Capabilities：Triconex 3625C1 can have as many as 16 digital output channels (relay contacts or 24V DC signals) for the actuation of valves, actuators, and motors. There are also versions that deal with digital inputs, making bidirectional signal processing possible.

Hot Swap and Hot Standby Support：Allows I/O module replacement without system shutdown through hot swap. Active and hot-standby modules — a rarity among traditional chassis-extend operational continuity.

Oil and Gas: Triconex 3625C1 is used in Safety-Critical Operations, such as Pipeline Monitoring and Well Control. for example, Valve, pump, and actuator controllers for emergency shutdown systems (ESD) on offshore platforms, refineries, and pipelines to avoid leaks or explosions. Okay, that was not true; but makes an engineer manage pressure and flow rates in pipelines, as per safety compliance. SPT interfaces with safety instrumented systems (SIS) to manage drilling operations and safeguarding against blowouts.

Transportation and Infrastructure: Triconex 3625C1 is used in maintaining track switches and signal lights for collision avoidance and operational safety, as well as controlling traffic lights, and barrier systems on tunnels or bridges promoting safety for the public.
