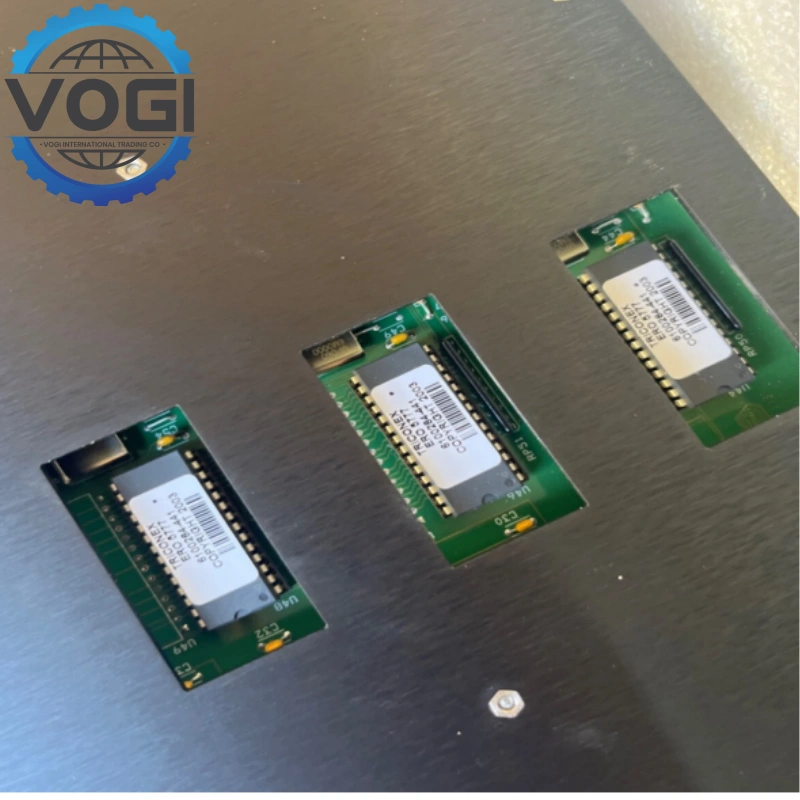

Triconex 3636T Digital Relay Output Module
Technical ParametersVOGI
Output points: 32 single-pole single-throw (NO) relay outputs
Voltage range: 125 V AC/DC (
Current load: Maximum 2 A (resistive load), supports 2000 VA or 150 W
Isolation characteristics: Channel-to-channel isolation voltage 1900 V DC
Fuse: Each output channel is equipped with a 2.5 A fast fuse.
SIL level: Supports SIL3 safety integrity level, in accordance with IEC 61508 standard
Intrinsically safe version: Intrinsically safe (IS) models are available for explosion-proof environments
Operating temperature: -40°C to 75°C
Storage temperature: -40°C to 85°C
Humidity: 5%–95% in non-condensing environment
Key FeaturesVOGI
High reliability design
Triple Module Redundancy (TMR) technology: Although the 3636T itself is a non-triple module, it receives signals from three independent processors and votes to ensure data integrity and fault tolerance.
Self-diagnosis function: Triconex 3636T has a built-in loop detection circuit that can independently verify the relay switch status and monitor the module health in real time, triggering an alarm when a fault occurs.
Safety and certification
SIL3 certification: Triconex 3636T has passed third-party certification and is suitable for critical applications such as safety instrumented systems (SIS) and emergency shutdown systems (ESD).
Intrinsically safe option: The intrinsically safe version meets the requirements of explosion-proof areas. Triconex 3636T is suitable for high-risk environments such as petroleum and chemical industries.
Flexible application scenarios
Multi-device control: It can drive actuators, valves, alarms and other devices. Triconex 3636T supports a variety of control needs in industrial automation.
Wide voltage compatibility: Triconex 3636T supports AC/DC mixed voltage input to adapt to different field power conditions.
Maintenance convenience
Hot-swap function: Triconex 3636T supports online module replacement to reduce downtime.

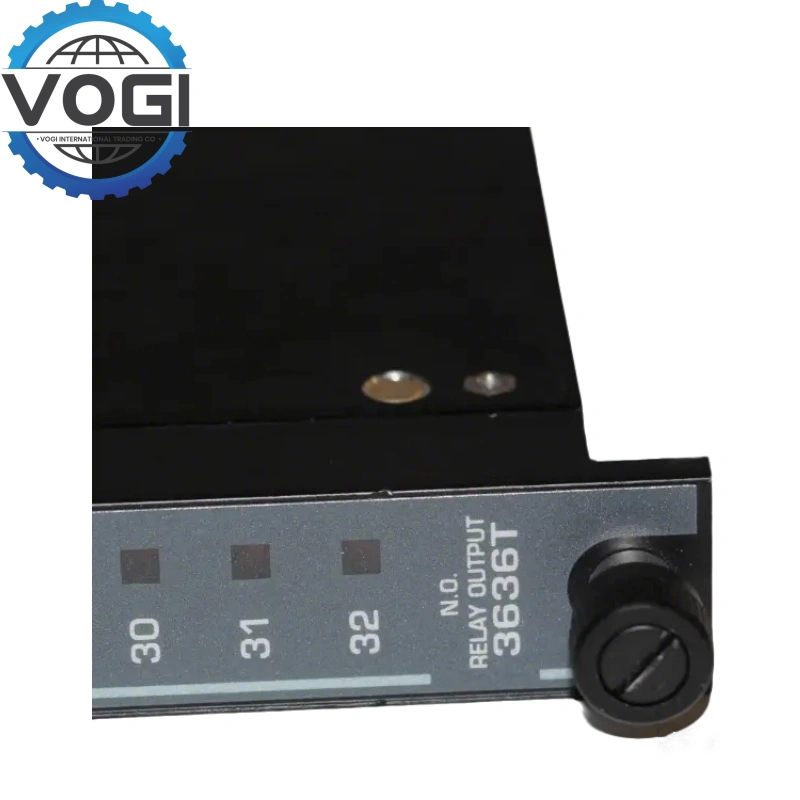

Status indication: Each channel is equipped with an independent output status indicator, and the module-level status is displayed by LED (normal, fault, activation).
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$67 |
|
Southeast Asia |
$20 |
|
South Asia |
$90 |
|
South Africa |
$72 |
|
Europe and USA |
$41 |
|
Russia |
$81 |
APPLICATIONVOGI
Safety Instrumented System (SIS): Triconex 3636T is used for interlock protection and emergency shutdown control of key equipment.
Fire and Gas Detection System (F&G): Drives fire fighting equipment and ventilation systems.
Turbine Control: Triconex 3636T implements the start, shutdown and protection logic of the turbine.
Process Automation: Controls actuators such as valves and pumps, and Triconex 3636T ensures the stability of the production process.
