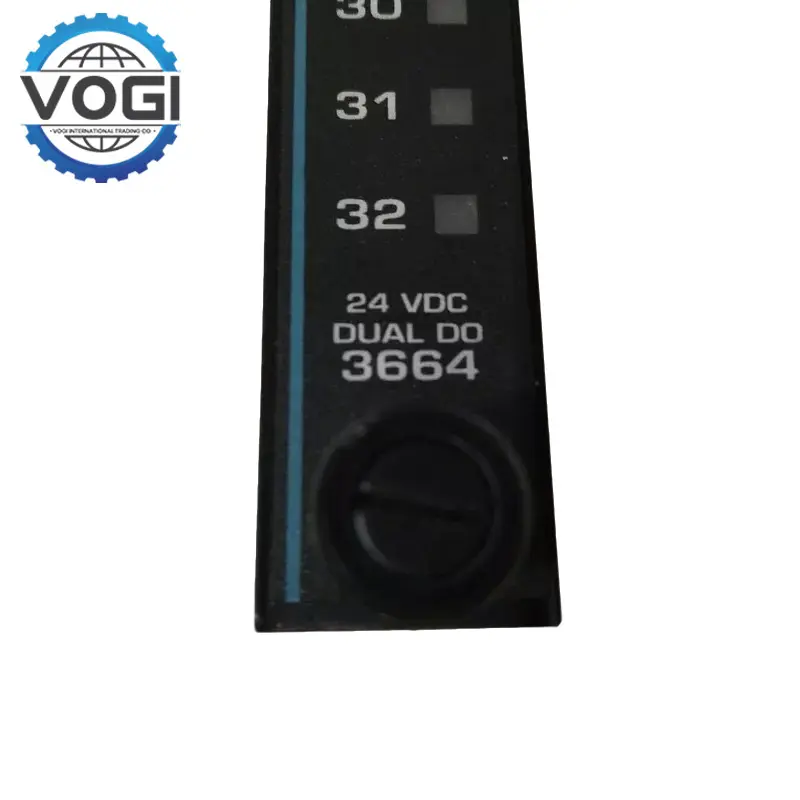

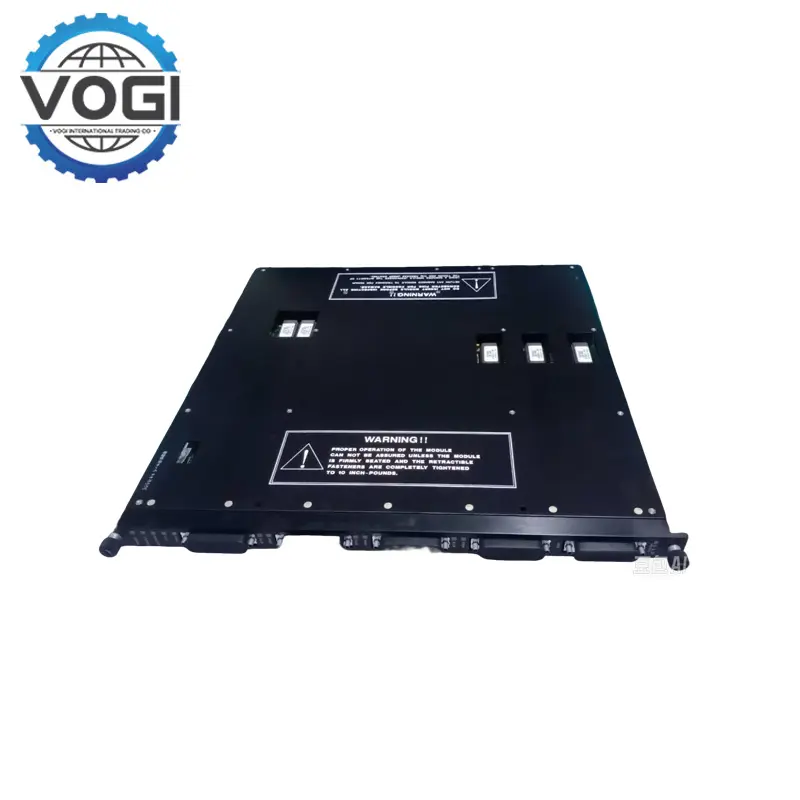

Triconex 3664 Dual Digital Output Modules
Key SpecificationsVogi
Nominal Voltage: 24 VDC.
Voltage Range: 16 - 30 VDC.
Maximum Voltage: 36 VDC.
Voltage Drop: <1.5 VDC .
Power Module Load: <10 watts.
Maximum Current Rating: 2 A per point, 10 A surge per 10 ms.
Minimum Required Load: 10 mA.
Load Leakage: 2mA maximum.
Point Isolation: 1500 VDC.
Output Type: TMR (Triple Modular Redundancy), supervised digital output.
Number of Output Signals: 32, commoned.
Key FeaturesVogi
Flexible Parameter Setting and Communication: Triconex 3664 can enable parameter customization (such as output signal type and delay time) through programming (ladder logic or function blocks) to meet different control needs. Seamless integration with PLCs, DCS, and other control systems through Modbus, Profibus, and EtherNet/IP.
Triple Modular Redundancy (TMR) architecture:Using TMR technology, three independent processing channels are used to eliminate single points of failure. It means that it will continue operating even if one of the channels fails, which is important for certain designs where SIL 3 certification is required (nuclear plants, oil refineries, etc.).
Strong Diagnostics and Safety Functionality: Continuously monitors the health of hardware and can identify faults (open-circuits, short-circuits or loss of load) Real-time alerts are provided through LED indicators (e.g., "FAULT," "LOAD"). During power interuption, outputs will get forcefully and automatically back to a safe state allowing the system to recover from extreme conditions.
Environmental Adaptability: Triconex 3664 has Wide Operating Range and High Protection Rating.
Freight Estimation(Part Of The Area)Vogi
Destination |
Freight |
Middle East |
$60 |
Southeast Asia |
$18 |
South Asia |
$80 |
South Africa |
$65 |
Europe and USA |
$35 |
Russia |
$72 |
ApplicationVogi
Nuclear Power: Activates emergency shutdown procedures in response to radiation leaks or equipment malfunctions.
Grid Stability Management: Controls circuit breakers and transformers to prevent overloads and ensure uninterrupted power supply.
Chemical Processing Industries: Triconex 3664 can controls reactor temperatures and pressures, and immediately activates safety interlocks in the event of out-of-specification conditions such as chemical overflow, to avert hazards.
Power Generation: This advanced system controls boilers, turbines, and cooling systems through fail-safe outputs, ensuring they revert to safe states during power failures. Our technology seamlessly manages emergency blade pitch adjustments in wind farms and maintains the integrity of solar plant safety systems, guaranteeing continuous and secure operation.
