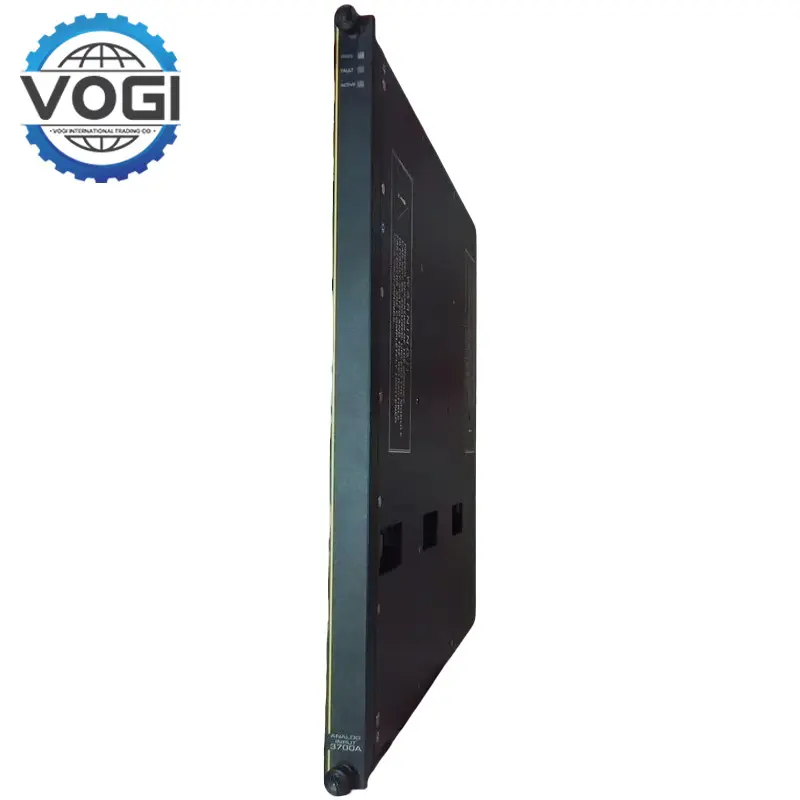

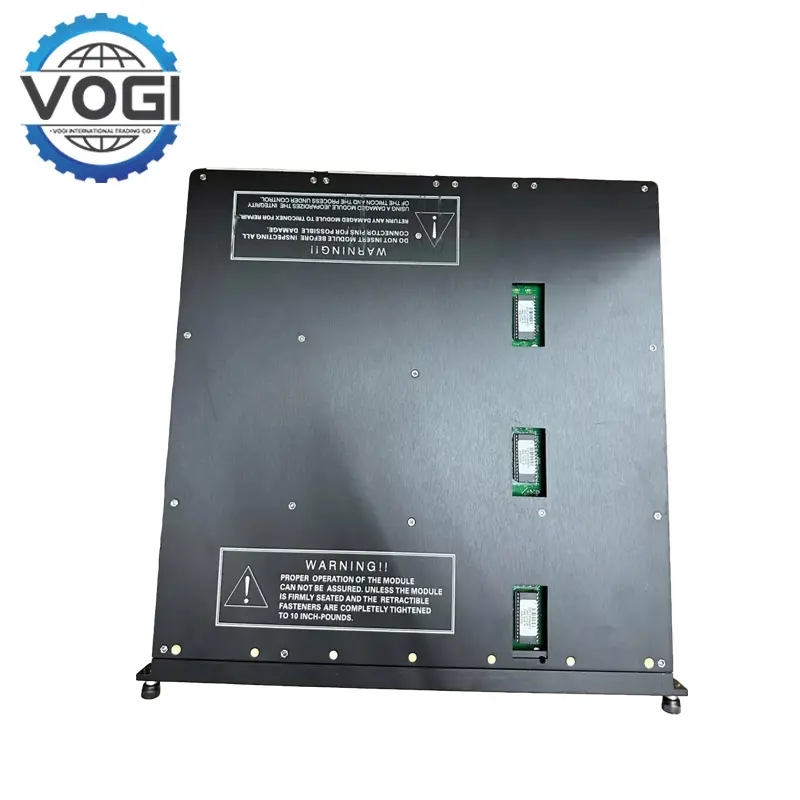

Triconex 3700A TMR Analog Input Modules
Key SpecificationsVOGI
Voltage: 0-5V, + 6%..
No. of Input Points: 32,diff,DC coupled.
Input Update Rate: 55ms.
Accuracy: < 1.5% of FSR,from 0°Cto 60°C.
Input Resistance(load): 30MΩ.
Power-Off Resistance: 30KΩ.
Common Mode Rejection : -80 dB (DC-100Hz).
Common Mode Range: -12V to +12V peak
Leg-to-Leg Isolation: 200KΩ.
Input Overrange Protection : 150 VDC/115 VAC continuous.
Current Range: 0-20mA, 250Ωshunt.
Key FeaturesVOGI
Triple Modular Redundancy (TMR) Architecture: Utilizes TMR technology with three independent input channels to eliminate single points of failure. Even if one channel malfunctions, the system maintains continuous operation, critical for applications requiring SIL 3 certification (e.g., nuclear plants, oil refineries) .Validates inputs from redundant channels, ensuring accurate signal conversion and transmission to the main processor modules.
High-Precision Analog Input Capabilities: Triconex 3700A is provided with High-Precision Analog Input Capabilities.It can Support 0–5V DC and 0–10V DC analog voltage signals, as well as 4–20 mA current signals via a 250 Ω shunt resistor,
Diagnostics and Fault Detection: Continuously monitors hardware status to detect faults such as open circuits, short circuits, or load loss. LED indicators (Pass/Fault/Active) provide real-time status alerts.Validates output integrity without interrupting operations, enhancing system reliability.
Hot-Swappable Design and Integration:Triconex 3700A allows online replacement of faulty modules without system shutdown, minimizing downtime in 24/7 operations.Facilitates seamless integration with Tricon backplanes via modular cabling.Supports Modbus, Profibus, and EtherNet/IP for integration with PLCs, DCS, and SCADA systems.
