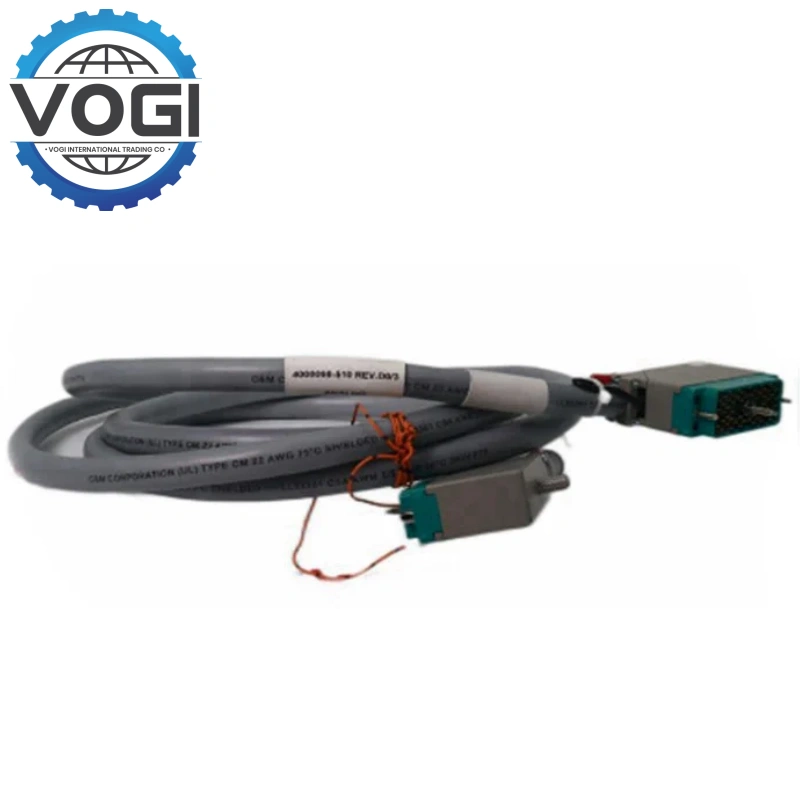

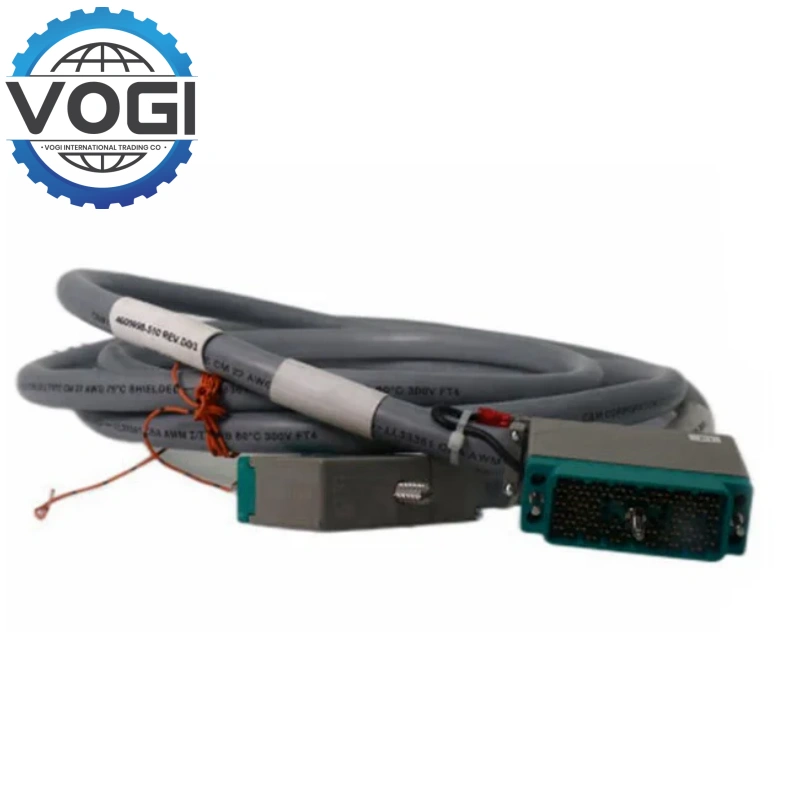

Triconex 4000056-002 I/O Communication Bus
Technical parameters
VOGI
Common number of channels: 8/16 channels
Digital input: 24VDC dry contact/wet contact or NAMUR sensor signal supported
Digital output: 24V DC
Isolation level: The isolation voltage is generally ≥1500V
Operating voltage: 24V DC (±10%)
Power: 5-10W Average
Response time: Input response signal ≤10ms, output response delay ≤20ms
Temperatures in use: -40°C...+70°C ( +/ 25°C)
Protection level: IP20
Shock and vibration resistance: According to IEC 60068-2-6 (vibration) and IEC 60068-2-27 (shock)
Key FeaturesVOGI
High reliability and safety
The triconex 4000056-002 meets the IEC 61508 SIL 3 standard and is designed for applications with high safety integrity level (SIL) requirements, such as nuclear power, petrochemical, etc.
The design is implemented using with Hardware Triple Module Redundancy (TMR) architecture, and has hardware redundancy and voting mechanism to achieve fault tolerance.
The health of the module is monitored in real time through Triconex 4000056-002 (for example, channel disconnection, short circuit, overload, etc.) and the problem is quickly located by system alarm.
Modularity and flexibility
Hot-plug compatible (dependent on system support), simple to maintain and add new devices, no need to shut down the system.
Triconex 4000056-002 is comparable with the other Triconex modules (controllers, communication cards) which are used together to construct a specific safety system.
Brand New ismartcube GM400-6IG8GM4/2008GM4 Compact I/O Module with 8 input/8 output and 2A Relay Output by ismartcube Digital Input Output Compact I/O Module 8/16 channels Digital Input/Output 8 input / 8 output What is GM400?
Optimal communication and diagnostics
Triconex 4000056-002 communicates with the master controller via the dedicated TriBus bus to guarantee low-latency data transfer.
Program, troubleshoot and produce verification reports in accordance with safety norms, all in TriStation engineering software.
No maintenance and long life
No any mechanical Relays, Small wear and tear and the Service life is up to 10 years (typical industrial application, according to service life)
The Triconex 4000056-002 also comes in a dual power input option to prevent single point failures shutting down the system.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$51 |
|
Southeast Asia |
$17 |
|
South Asia |
$65 |
|
South Africa |
$55 |
|
Europe and USA |
$31 |
|
Russia |
$62 |
Key PointsVOGI
Configuration Dependency:
The parameters in this example could be different depending on the role of the module int he system (e.g. master control, redundant slave) and have to be configured using Triconex Engineering Tools (like TriStation).
Firmware Version:
Functionalities can be disabled by the firmware, and please make sure the compatibility is well tested on their own devices before preferably you purchase this product.
Safety Specifications:
Installation and operation must conform to the Schneider Electric Safety Guide for the system to operate correctly and to prevent system deterioration as a result of improper operation.
