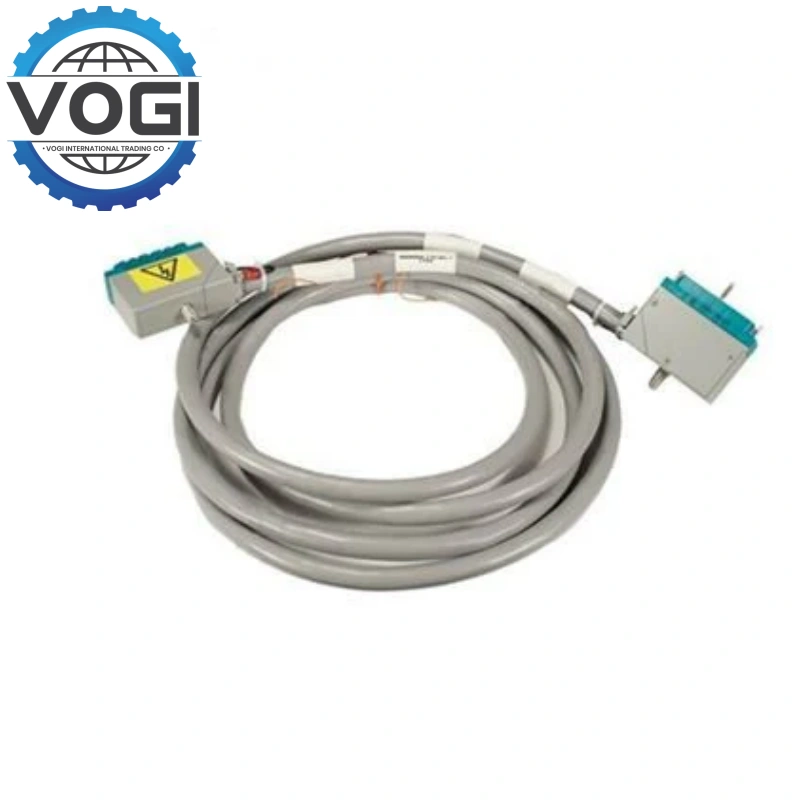

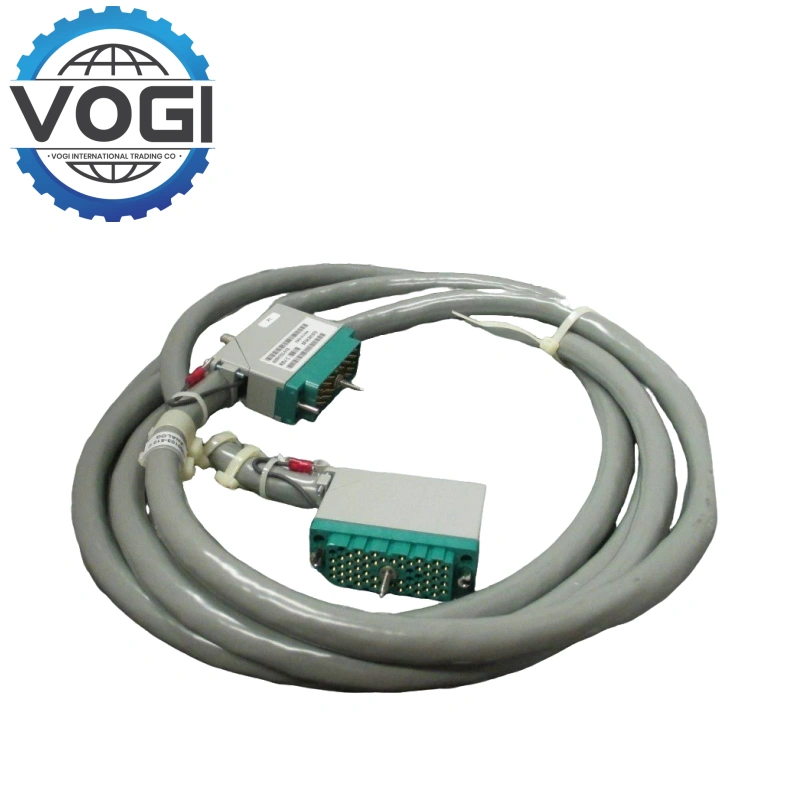

Triconex 4000056-002 I/O Communication Bus-1

Channels: Eight/16 is typical

Digital input: 24V DC dry contact/wet contact or NAMUR sensor signal accommodated

Digital output: relay output (contact capacity: 2 A @ 24 V DC) or solid-state output are available

Isolation level: optoelectronic isolation between channels and the system side (isolation voltage≥1500V DC).

Response time: input signal response ≤10ms, output delay ≤20ms

Temperature of operation: 40° C / - 70° C

Protection level: IP20

Vibration/shock resistance: complies with IEC 60068-2-6 (vibration) and IEC 60068-2-27 (shock)

TMR Triconex 4000103-510 support : three-channel ( three elements ) independent input / output and voting mechanism can ensure that a single point of failure is not a safety hazard.

Real-time diagnostic: Triconex 4000103-510 is a has a self-test circuit, which can monitor module health status in real time (such as channel disconnection, power supply is not normal).

Flexible for extreme environments: Wide temperature, dustproof, anti-vibration design, able to work in brutal environments like petrochemical, electric power, nuclear power.

Long-life components: Triconex 4000103-510 is made of industrial-grade components, the average failure-free MTBF of more than 100,000 hours.

Supports hot swap: Triconex 4000103-510 online replacement of the communication module (system configuration), easy replacement, and reduce the production line downtime.

​Plug and Play​: The 4000103-510 installs in a matter of minutes on existing systems using the Triconex backplane bus (TriBus).

Safety interlocks: ESD, Gas/fire monitoring interlock.

Critical control: Protection of the turbines, valve control oil pipeline.

Process and safety: Pressure monitoring in a chemical plant reactor and interlock in a nuclear power cooling system.
