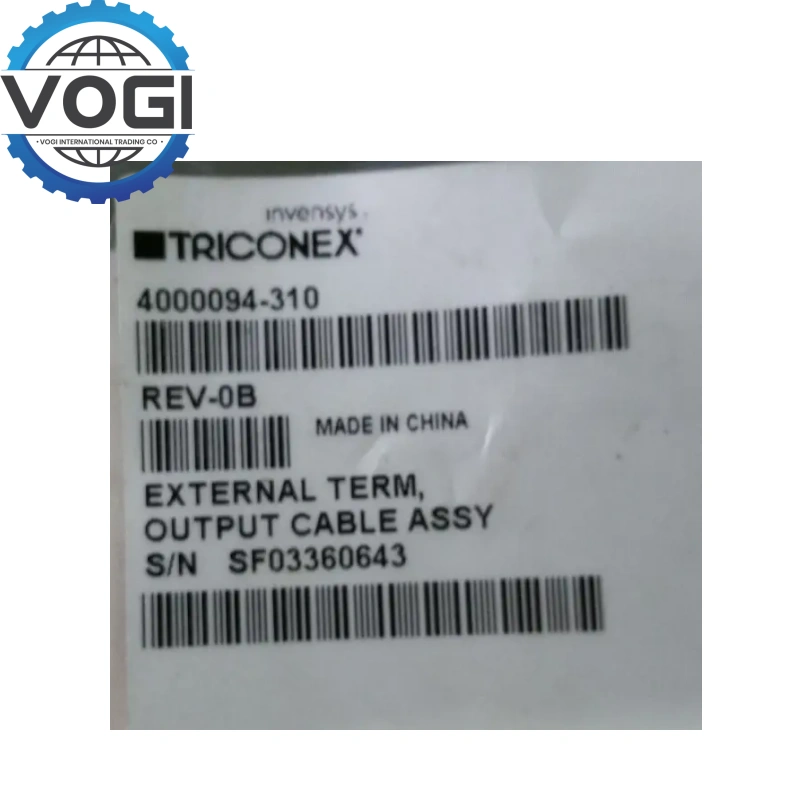

Triconex 4000094-310 Output Cable Assy
Technical parameters
VOGI
Microprocessor: Triple modular redundant (TMR) configuration
I/O capacity: Various digital/analog input and output modules are available, and the number of points can be expanded to several hundreds with one rack
Communication interface: Compatible with Modbus TCP/IP, OPC, Ethernet/IP
Power: 24V DC or 120/240V AC is common.
Working temperature:-40 To 70 degree.
Certificate: IEC 61508 (SIL 3), API 670, ISO 13849
Key FeaturesVOGI
TMR - Triple Modular Redundancy In theory it can handle a single fault in all 3 modules.
There are three independent processors that run in parallel. Delete Triconex 4000094-310 uses a "voting mechanism" to remove single points of failure in harsh environments for the uninterrupted system availability.
High-security design
Playing its part in SIL 3 standard of safety, Triconex 4000094-310 is ideal for certain environments which are crucial i.e. oil & gas, nuclear power stations. Both the hardware and software are anti-EMI and – earthquake.
Modular expansion
Triconex 4000094-310 Allows I/O Modules Replacement Without AC Power Interruption makes it possible to exchange I/O modules without shutting down for a maintenance period. Backplane or communication network may be used for multi-rack expansion.
Software Ecosystem
Programming software: TriStation 1131 (compatible with IEC 61131-3 standard). About Triconex 4000094-310 It can are used for logic control, sequence control and PID adjustment. Fault recording and event tracing as integrated functions.
Freight Estimation(Part Of The Area)VOGI
|
Destination |
Freight |
|
Middle East |
$67 |
|
Southeast Asia |
$20 |
|
South Asia |
$90 |
|
South Africa |
$72 |
|
Europe and USA |
$41 |
|
Russia |
$81 |
ApplicationsVOGI
The ESD System
The 4000094-310 monitoring real-time process parameters (Pressure, Flow and Temperature) in hazardous industries, such as Oil, Natural Gas and Chemicals, by activating Emergency Shutdown to avoid catastrophic accidents.
Fire & Gas System (F&G)
Finds flammable gas leakage, smog or fire and connects fire-fighting systems (such as agitating equipment and ventilation equipment).
Case: Flame detecting and fire extinguishing tanksystem of a refinery are interconnected and controlled.
Turbine Machinery Contirol (TMC)
The Triconex 4000094-310 provides vibration monitoring, overspeed protection, and interlocking control for high-speed rotating machinery applications including compressors and gas and steam turbines.
Case: Anti-surge control of centrifugal compressors in natural gas pipeline stations.
Nuclear power safety system
Scram and Cool System control for Nuclear Power Plant Raector based on IEC 61513.
Case: Control rods automatically entering in to nuclear reactors if the neutron flux is too weak.
Railroad signal and safety control
Triconex 4000094-310 is utilized in automatic train protection(ATP) and turnout interlocking systems for the safety of rail transit running.
Case: Subway Signal Duplexing and Fault Switching.
